SNAIGE R 13SM Instructions For Use Manual

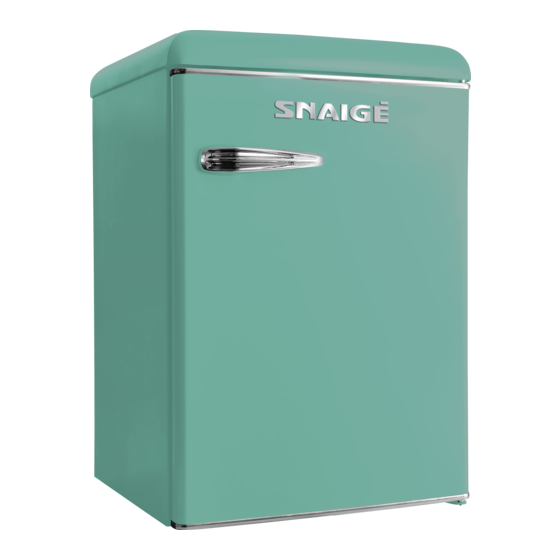

Refrigerator with a freezer compartment
Hide thumbs Also See for R 13SM:
Table of Contents

Advertisement

Quick Links

Download this manual
R 13SM
Refrigerator with a freezer compartment
Instruction for Use
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R 13SM and is the answer not in the manual?

Questions and answers

Related Manuals for SNAIGE R 13SM

Summary of Contents for SNAIGE R 13SM

  • Page 1 R 13SM Refrigerator with a freezer compartment Instruction for Use...

  • Page 2: General Information

    DEAR CUSTOMER! Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer). CAREFULLY READ THE INSTRUCTION MANUAL. The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual.
  • Page 3 Immediately ventilate the room: air the room in which the appliance is placed for a • few minutes (the size of the room for a product containing isobuthane / R600a must be at least 4 m ) to avoid damage to the cooling system. C-Pentane is used as blowing agent in the insulation foam and it is a flammable gas.
  • Page 4 Do not use adapters, multiple sockets and two-wire extension leads. If it is – necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have a VDE/GS safety certificate. If an extension lead is used (with a protection ring and safety certificate), its socket must be located at a safe distance, away from the sinks, and must not be in a place where it could be flooded by water or waste water.

  • Page 5: Installation And Operating Conditions Of The Appliance

    The appliance should be transported in the vertical position; do not tilt any more than 30°. The manufacturer will not be responsible for any damage of the appliance that results from non-compliance with the instructions for transportation. The manufacturer guarantees reliable operation of the refrigerator when the relative air humidity not greater than 70 per cent and the ambient temperature is: +16 TO +32 DEGREES CELSIUS (Climate class N);...

  • Page 6: Preparing For Operation

    comes down. If the appliance is tilted slightly backward – the doors will close by themselves. Preparing for operation: It is recommended to prepare the appliance for operation with a helper. • The apppliance must only be transported in its vertical position; do not tilt any more than •...

  • Page 7: Temperature Regulation

    Freezer compartment Door tray (s) Interior light bulb cover Egg tray Thermostat knob Melt water channel cleaner Height-adjustable shelf Condenser Glass shelf Compressor Fruit and vegetable tray Thaw water drip tray NOTE. The technical data of the appliance can be found on the rating label attached to the inside wall of the appliance.
  • Page 8 To avoid food contamination, follow the instructions below: Prolonged opening of the door can significantly increase the temperature in the • compartments of the appliance: only open the door for the time required to place / remove food. Regularly clean surfaces that may come into contact with food and accessible drainage •...

  • Page 9: Changing The Interior Light Bulb

    FREEZER COMPARTMENT should be thawed not less than twice a year or when a layer of ice thicker than 4 mm forms in it. Do the actions below in the order they are listed: WARNING! Turn the appliance off and pull the plug out of the electrical socket. Remove foodstuffs from freezer compartment.

  • Page 10: Changing The Opening Direction Of The Doors

    CHANGING THE OPENING DIRECTION OF THE DOORS It is recommended that changing the opening direction of the doors should be done with a helper. You will need two spanners No. 8 and No. 10 and a head screwdriver. When changing the opening direction of the doors YOU CAN NOT lay the refrigerator horizontally! Do the actions below in the order they are listed: Turn off the appliance and pull the plug out of the electricity supply socket.
  • Page 11 10. Take the cap (12) off the refrigerator door and press it into position on the opposite side. 11. Remove the bracket (13) and its washers from the axle. Unscrew the axle by twisting it counter-clockwise. Turn the bracket upside-down (180 º) and screw in the axle. Attach the bracket on the opposite side.
  • Page 12 Wait for about 30 minutes before it is connected to the mains. If the unit has been tilted to more than 30°, wait for about 4 hours before re-connecting it to the mains. OPERATION PROBLEMS AND THEIR SOLUTIONS. What if… The appliance is plugged in to the mains but it does not work and.

  • Page 13: Environmental Protection Information

    ENVIRONMENTAL PROTECTION INFORMATION Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
