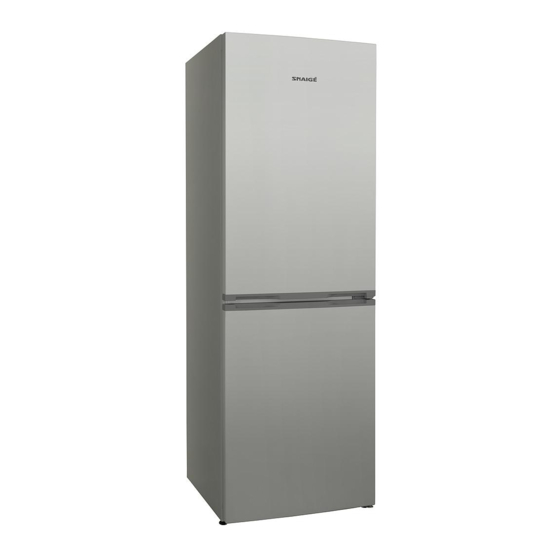

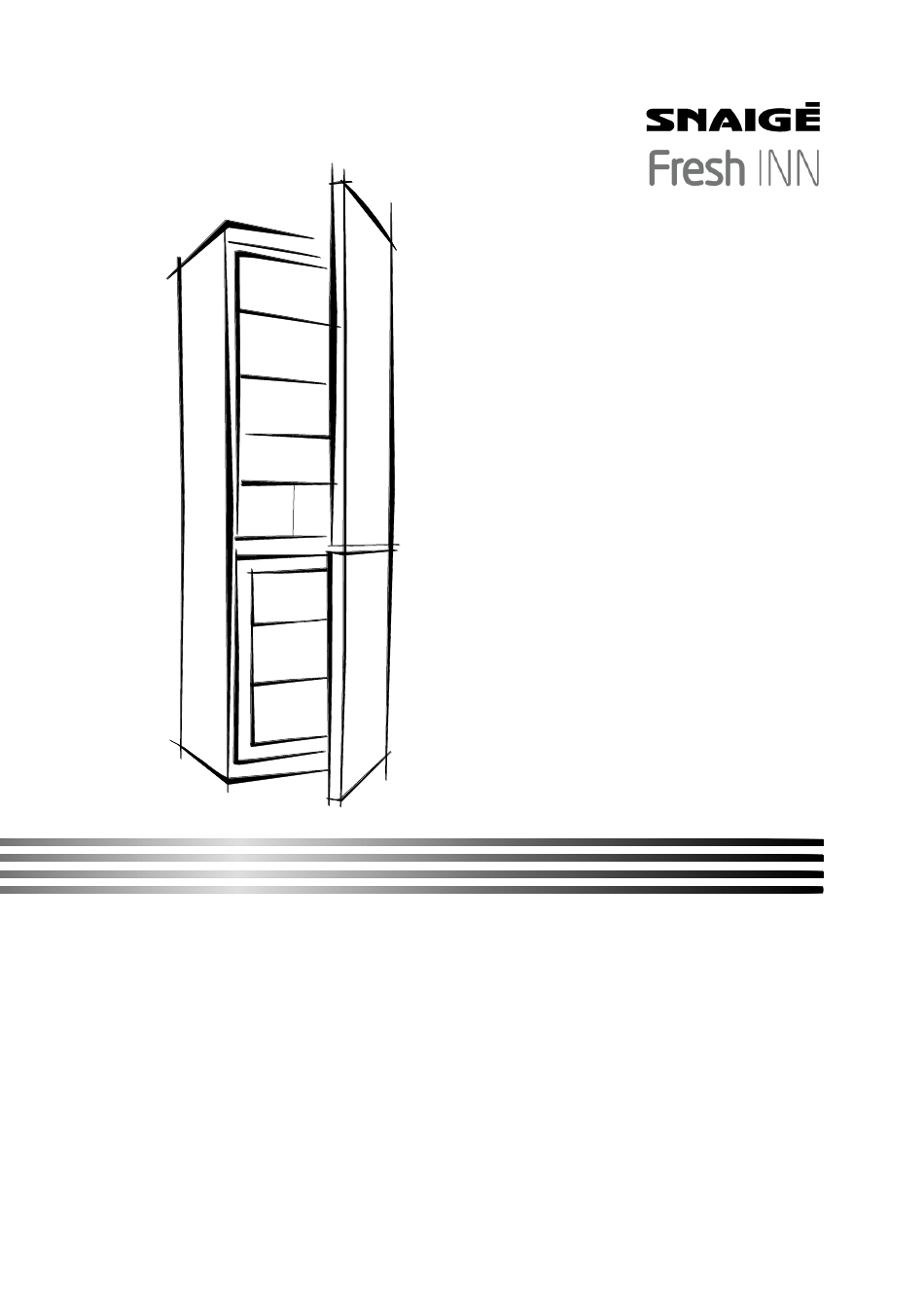

- Page 1 RF53SG RF56SG RF57SG RF58SG REFRIGERATOR - FREEZER Instruction for Use...
-
Page 2: General Information
DEAR CUSTOMER! Some provisions in this user manual are unified for refrigerating products of different types (for a refrigerator, refrigerator-freezer or freezer). CAREFULLY READ THE INSTRUCTION MANUAL. The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual. - Page 3 WARNING: Do not damage the appliance refrigeration system. It contains the refrigerant gas R600a. If the refrigeration system is damaged: Do not use any open flame. • Avoid sparks-do not turn on any electrical appliances or lighting fixtures. • Immediately ventilate the room: air the room in which the appliance is placed for a •...
- Page 4 It is forbidden to readjust or modify any parts of the unit. It is crucial not to – damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened or wound. If the capillary tube is damaged by the user the guarantee will be void.
-
Page 5: Installation And Operating Conditions
Do not place any dishes with liquids on top of the appliance and do not keep – flowers in vases or other liquid-filled vessels on the appliance. Do not climb on or sit on the appliance, do not lean on or hang on the appliance –... -
Page 6: Preparing For Operation
The appliance must stand on a level surface and must not touch the wall. If necessary, • regulate the height of the appliance by adjusting the levelling feet: by turning them clockwise – the front of the appliance rises, by turning them counter clockwise – it comes down. - Page 7 First use: Before using the appliance for the first time, the interior and all internal accessories • should be washed with lukewarm water and some neutral soap to remove the typical smell of a brandnew product, then dried thoroughly. Once the unit has been positioned, wait for about 30 minutes before it is connected to •...
- Page 8 Shelf for bottles Door trays Cold section drawer 0 °C Fresh ZONE Condenser Glass shelf Thaw water drip tray Fruit and vegetable drawer Fruit&VEGS Compressor Section for freezing small products RF57SG, RF53SG A – refrigerator compartment B – freezer compartment...
- Page 9 Control panel Fast-freeze section On / off switch for interior light Frozen products section(s) Height-adjustable shelves Egg tray Shelf for bottles Door trays Glass shelf Condenser Fruit and vegetable drawer Fruit&VEGS Thaw water drip tray Section for freezing small products Compressor NOTE.
- Page 10 Cooling device on/off SHUTDOWN. Tap and hold button 1 until the three temperature indicative segments are blue, and the light in the refrigerator compartment turns off. CAUTION! Voltage remains turned on. SWITCHING ON. Tap and hold button 1 until the set temperature indication segment is blue, and the refrigerator compartment lighting is on.
- Page 11 The segment in the centre of the button will light. Place fresh food prepared for freezing in one or two lines in the fast freezing section. After 24 hours, move the frozen food products from the Fast Freeze section into the storage section drawer(s) (see Fig.
-
Page 12: Changing The Opening Direction Of The Doors
Remember that before defrosting the appliance and cleaning the back part of the appliance body you must disconnect the appliance from the electrical energy supply socket by pulling the plug out of the electricity outlet. Protect the appliance inner surfaces and plastic parts from fats, •... - Page 13 1. Remove the four covers C from the housing and inside of the door. 2. Unscrew the hinge bolt on the inside of the door in thearea C/6. Caution: Support the door. 3. Take off the refrigerator door. 4. Take out the fi xing screws and remove the upper bracket 6. Note the small plastic plate underneath the bracket.
- Page 14 into the outlet and perform the required action: set the temperature or turn on the FAST FREEZE function. The noise has become louder. Check that the appliance is standing stable, on a level • place. To make it level, regulate the front feet. Check if the appliance is not touching any furniture, and that no part of the refrigeration system at the back part of the appliance body is touching the wall.
-
Page 15: Environmental Protection Information
ENVIRONMENTAL PROTECTION INFORMATION Important Note: This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
