Summary of Contents for SNAIGE C 29SM

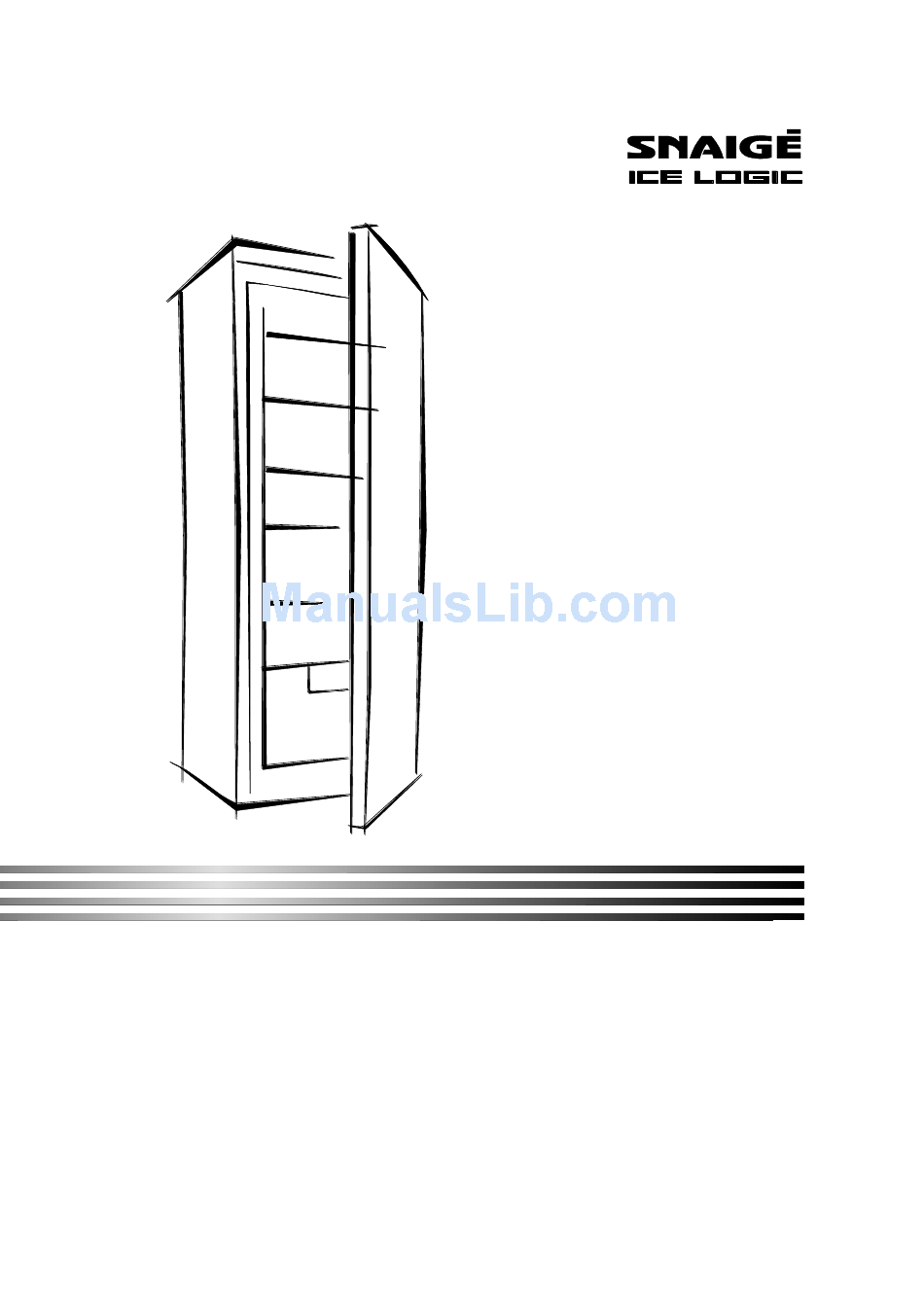

- Page 1 C 29SM C 31SM Instructions for Use Refrigerator...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAREFULLY READ THE INSTRUCTION MANUAL. If instructions are not followed, there is a risk of injury, damage of the appliance and loss of the right to free warranty service. We recommend to keep the Instruction manual the whole time you have the appliance. - Page 3 CONNECTION TO THE MAINS The appliance should only be connected to an earthed socket installed in – accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with all binding CE labelling directives.. The earthed electrical socket by which the appliance is connected to the mains should be in an accessible place.
-
Page 4: Environmental Protection Information
Do not climb on or sit on the appliance, do not lean on or hang on the • appliance doors and do not allow children to do this. IF THE APPLIANCE IS OUT OF ORDER AND IT IS NOT POSSIBLE TO REPAIR IT BY MEANS OF GIVEN RECOMMENDATIONS, UNPLUG IT, OPEN THE DOORS AND CALL THE SERVICE EXPERT. -
Page 5: Product Data Sheet
Product data sheet Model C 29SM C 31SM Category ¹) Gross volume, L Refrigerator net volume, L Actual consumption will depend on how the appliance is used and where it is located Energy efficiency class ²) Annual energy consumption ³), kWh/annum... -
Page 6: Description Of The Appliance, Basic Parts
DESCRIPTION OF THE APPLIANCE, BASIC PARTS The drawer 5 moves on roller bearings 22. The drawer can be removed by pulling it out, and lifting it off the rails. Thermostat - temperature regulator Fruit and vegetable box Doors tray On / off switch for interior light Adjustable height shelves Egg tray... -
Page 7: Preparing The Appliance For Operation
PREPARING THE APPLIANCE FOR OPERATION It is recommended to prepare the appliance for operation with a helper. Remove package. Lift the appliance away from foamed polystyrene base. Tear off • adhesive tapes. When positioning the appliance in chosen location, it will move more easily into •... -
Page 8: Temperature Regulation
If the appliance is placed in a corner, a gap of at least • 60 mm must be left between the appliance body and the wall (see fig.) TEMPERATURE REGULATION The temperature in the refrigerator compartment is controlled using the thermostat knob 1 (fig. -
Page 9: Cleaning And Care
DEFROSTING THE REFRIGERATOR COMPARTMENT defrosts automatically. Drops of ice that form on the back wall of the refrigerator compartment thaw during the time the compressor is not working and the thaw water runs down the thaw water runoff channel to the tray on top of the compressor (Fig. -
Page 10: Changing The Opening Direction Of The Doors
CHANGING THE OPENING DIRECTION OF THE DOORS It is recommended that changing the opening direction of the doors should be done with a helper. You will need two spanners No. 8 and No. 10 and a head screwdriver. When changing the opening direction of the doors, YOU CAN NOT lay the refrigerator horizontally. -
Page 11: Troubleshooting
Once the bracket is attached to the freezer compartment door, fix it in place on the other side of the refrigerator. 7. Turn the bracket 6 around 180° together with the washers on the axle and the plastic spacer. Remove the axle and the washers and reattach them on the other side of the bracket. -
Page 12: Warranty & Service
The top of the appliance has condensation on it. The ambient relative air • humidity is above 70 %. Ventilate the room where the appliance stands and if possible remove the cause of the humidity. TRANSPORT THE MANUFACTURER WILL NOT BE RESPONSIBLE FOR ANY DAMAGE OF THE APPLIANCE THAT RESULTS FROM...
