Overview
The AIR-ANTM4050V-R antenna operates in the 2.4- and 5-GHz bands, and is designed for use with
spatial-diversity access point (AP) systems. The AIR-ANTM4050V-R antenna is compatible with Cisco
802.11a/b/g radio products using a reverse-polarity threaded Neill-Concelman (RP-TNC) connector.
Figure 1
Figure 1
Figure 2
Technical Specifications
The following table lists the technical specifications for the AIR-ANTM4050V-R antenna.
Antenna type
Operating frequency range
Maximum VSWR
Peak gain
Polarization
OL-6485-01
and
Figure 2

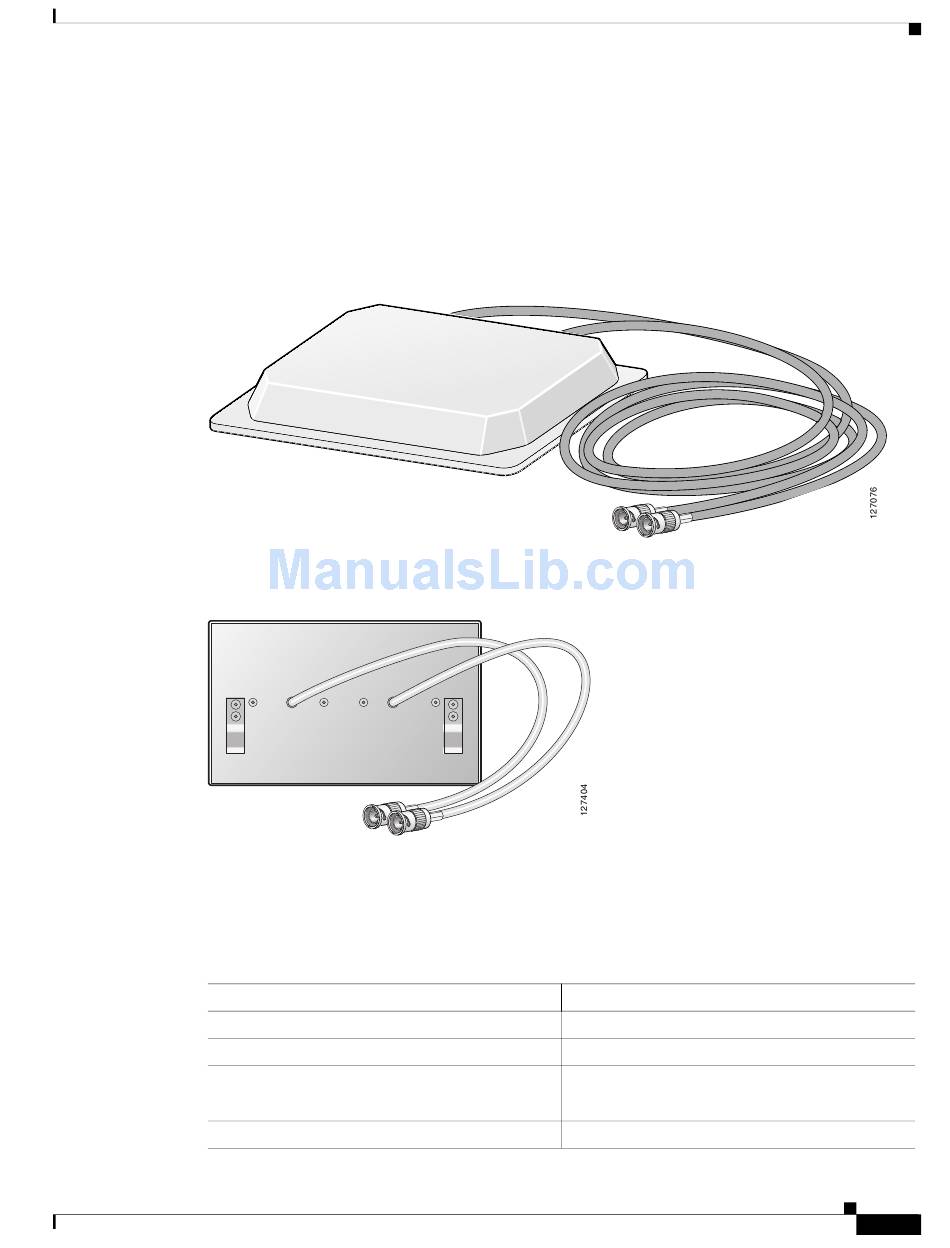

show the front and rear panels of the AIR-ANTM4050V-R antenna.
Cisco AIR-ANTM4050V-R Antenna (Front Panel)
Cisco AIR-ANTM4050V-R Antenna Back Panel
1
bandwidth
Cisco Multiband Diversity Omnidirectional Ceiling-Mount Antenna (AIR-ANTM4050V-R)
Omnidirectional patch
2400 to 2500 MHz and 4900 to 5990 MHz
2.0:1
2.4-GHz: 4 dBi
•
5-GHz: 5 dBi
•
Linear (vertical) (2x)
Overview
3
