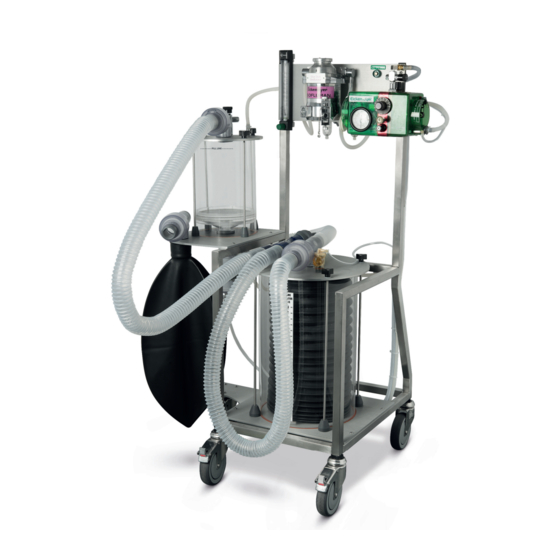

Anaesthetic machine

Advertisement

LAVC - 2000 - D
ANAESTHETIC MACHINE
USER MANUAL
Item no. 21320201
TELEPHONE +49 7461 96 580 0
www.eickemeyer.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAVC-2000-D and is the answer not in the manual?

Questions and answers

Summary of Contents for Eickemeyer LAVC-2000-D

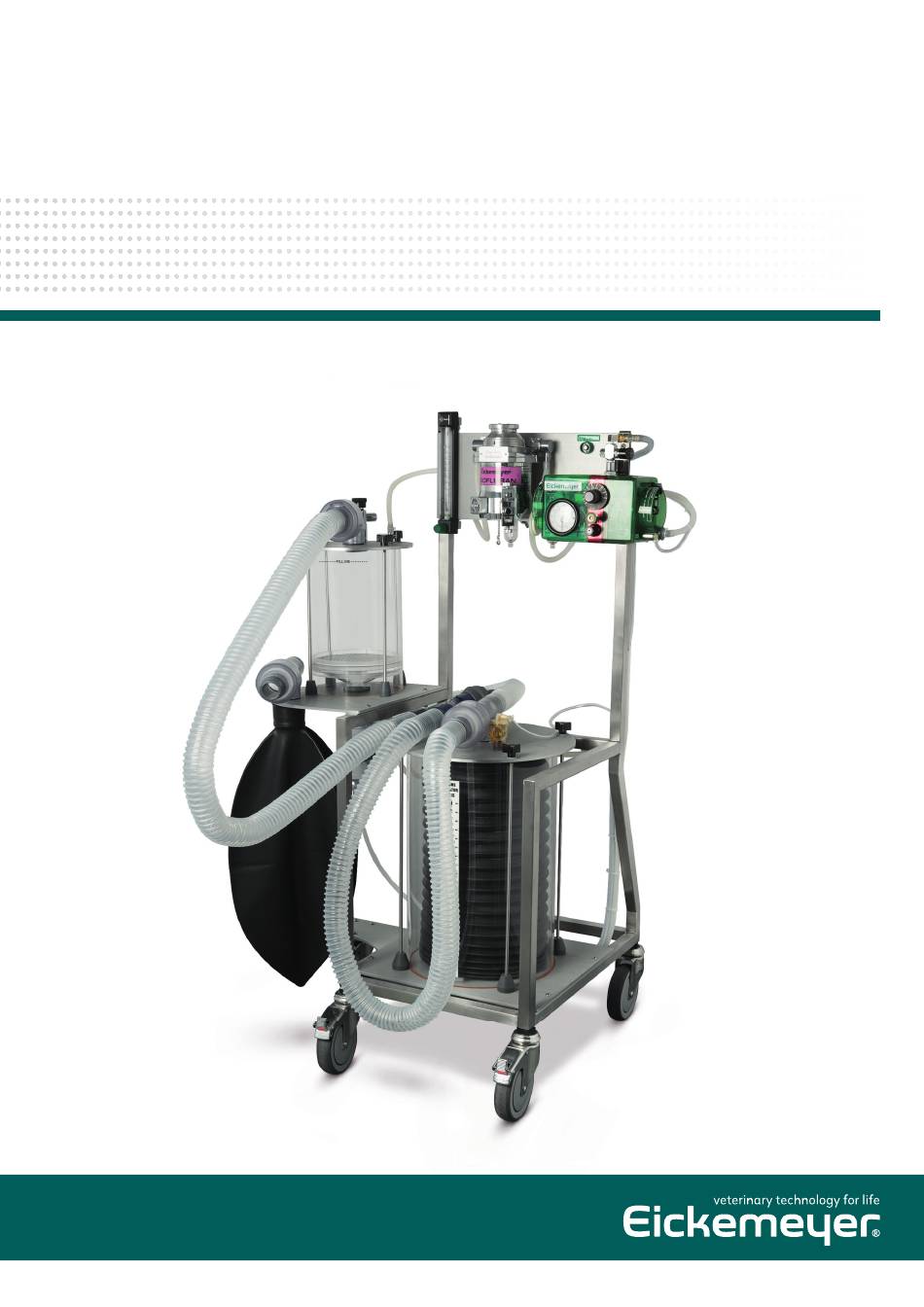

  • Page 1 LAVC - 2000 - D ANAESTHETIC MACHINE USER MANUAL Item no. 21320201 TELEPHONE +49 7461 96 580 0 www.eickemeyer.com...
  • Page 2 USER MANUAL LAVC - 2000 - D ANAESTHETIC MACHINE T +49 7461 96 580 0 | F + 49 7461 96 580 90 | export@eickemeyer.com | www.eickemeyer.com...
  • Page 3: Table Of Contents

    7.10 Monitor Shelf ..........................11 7.11 Wheels ............................11 Standard Replacement Parts and Part Numbers ..............12 Accessories and Part Numbers....................15 T +49 7461 96 580 0 | F + 49 7461 96 580 90 | export@eickemeyer.com | www.eickemeyer.com...
  • Page 4: Introduction

    6. Scavenger setups: High vacuum, WAGD, low-fl ow or f / air setup 7. F / Air canister 8. Nitrous Oxide or Air Flowmeter 9. Bellows Dryer T +49 7461 96 580 0 | F + 49 7461 96 580 90 | export@eickemeyer.com | www.eickemeyer.com...
  • Page 5: Optional Configurations

    4. OPERATING INSTRUCTIONS FOR MODIFIED MARK 7 SERVO The modifi ed Mark 7 Servo has been chosen as the ventilator support mechanism for the EICKEMEYER® LAVC-2000 series large animal anesthesia machine because of its total capabilities. The Servo has individual controls to determine fl owrate (inspiratory time);...
  • Page 6 20 cmH₂O, after 15 – 30 minutes of ventilation the patient should be given a sign breath of 25 cmH₂O. Some large animal practitioners elect to increase the sigh breath to 45 – 50 cmH₂O. EICKEMEYER® recommends a 25 cmH₂O sigh breath from 20 cmH₂O normal setting.
  • Page 7: Operating Instructions

    A tool is provided for easy removal and replacement. Make sure the valve is tight and do not use any other valve except the valves that are supplied by EICKEMEYER® as they are designed for this application only.
  • Page 8: Passive Breathing Mode

    Note: Older models of the LAVC-2000-D that have the original style absorber without the built-in funnel and moisture drain system can be upgraded to incorporate the moisture drain system. Please contact EICKEMEYER® for to obtain a quote on upgrading your existing machine.
  • Page 9: Leak And Pressure Check Instructions

    T +49 7461 96 580 0 | F + 49 7461 96 580 90 | export@eickemeyer.com | www.eickemeyer.com...
  • Page 10: Primary Components

    The absorber canister is fi lled with sodasorb or CO₂ absorbent which removes carbon dioxide from the rebreathing circuit. It is important to change the sodasorb after 12 hours of anesthetic use. The absorber canister on the LAVC-2000-D and LAVC- 2000-D-2 is designed with a drainage system to remove excess moisture.
  • Page 11: Flush Valve

    100 % oxygen. This fl ow bypasses the vaporizer which will quickly increase the amount of oxygen and decrease the amount of anesthetic agent within the patient system. 7.10 Monitor Shelf The monitor shelf is an optional feature of the LAVC-2000-D. Used for placing a monitor above the anesthesia unit, storage or mounting a ventilator. 7.11 Wheels 5 locking wheels installed.
  • Page 12: Standard Replacement Parts And Part Numbers

    USER MANUAL LAVC - 2000 - D ANAESTHETIC MACHINE 8. STANDARD REPLACEMENT PARTS AND PART NUMBERS 18 + 18.1 T +49 7461 96 580 0 | F + 49 7461 96 580 90 | export@eickemeyer.com | www.eickemeyer.com...
  • Page 13 USER MANUAL LAVC - 2000 - D ANAESTHETIC MACHINE T +49 7461 96 580 0 | F + 49 7461 96 580 90 | export@eickemeyer.com | www.eickemeyer.com...
  • Page 14 35. E21320011378 Venturi Drive Assy Complete 36. 215130 Rebreathing Bag – Equine E213200172 Exhalation valve 213205 Stainless Steel Shelf – NOT PICTURED T +49 7461 96 580 0 | F + 49 7461 96 580 90 | export@eickemeyer.com | www.eickemeyer.com...
  • Page 15: Accessories And Part Numbers

    Rebreathing Bag, 15 L 215130 Rebreathing Bag, 30 L Additional sizes of Endo Tube Adapters are available. Additional (smaller) sizes of rebreathing bags are available. T +49 7461 96 580 0 | F + 49 7461 96 580 90 | export@eickemeyer.com | www.eickemeyer.com...
