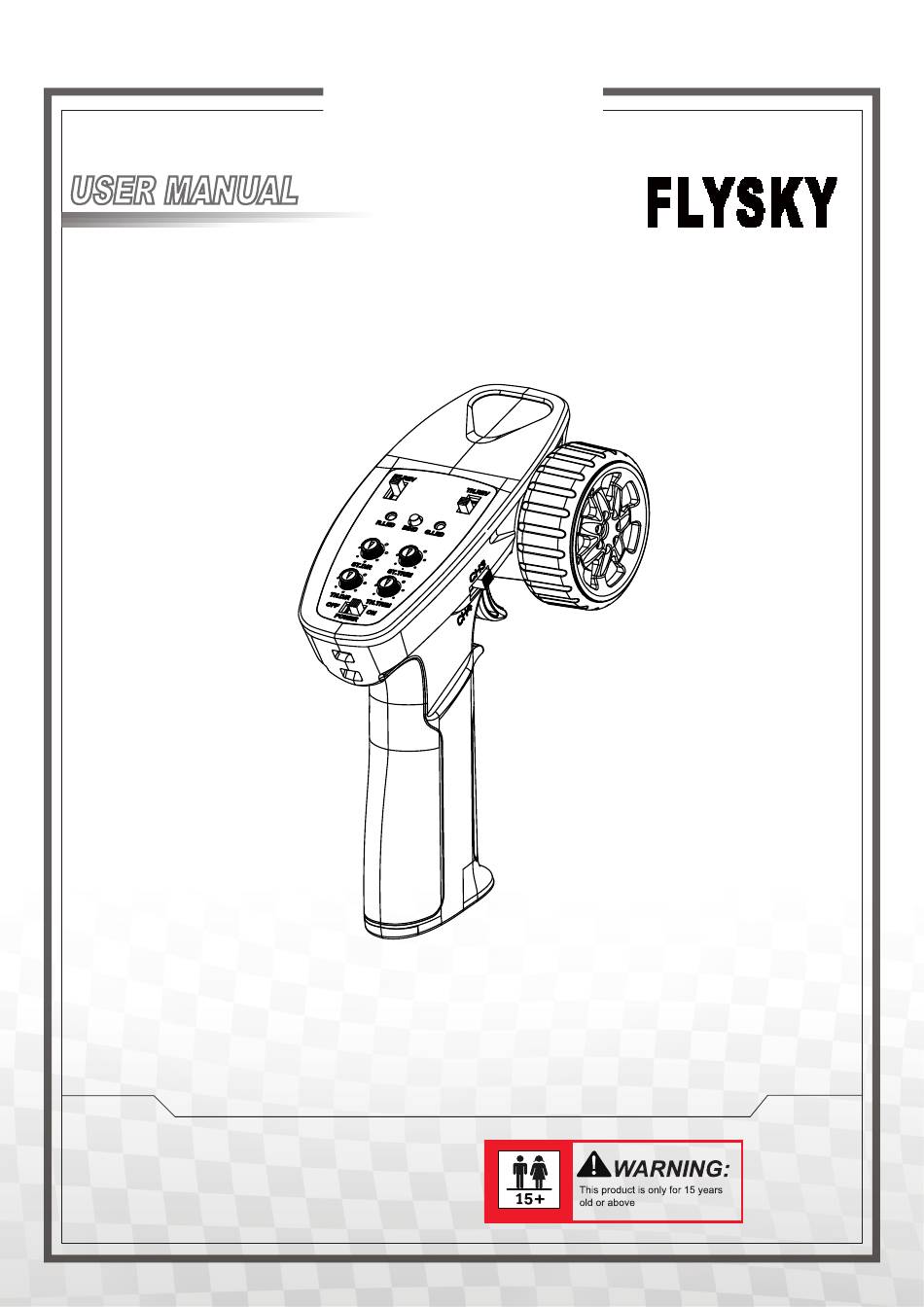

- Page 1 FS-MG4 USER MANUAL Digital Proportional Radio Control System Copyright ©2021 Flysky Technology co., ltd...
- Page 2 In order to ensure your safety, and the safety of others, read this manual carefully before using this product. If you encounter any problem during use, refer to this manual first. If the problem persists, contact your local dealer or visit our service and support website : www.flysky-cn.com...
-
Page 3: Table Of Contents
Contents 1 . S a fet y ..............1 1.1 S afety S y m bo ls ...... -
Page 4: Safety
1.Safety 1.1 Safety Symbols Pay close attention to the following symbols and their meanings. Failure to follow these warnings could cause damage, injury or death. Danger • Not following these instructions may lead to serious injuries or death. Warning • Not following these instructions may lead to major injuries. -
Page 5: Introduction
FS-MG4 Digital Proportional Radio Control System 2.Introduction The FS-MG4 is a simple 4 channel transmitter using the latest AFHDS 2.4GHz ATN frequency hopping technology from Flysky. The transmitter is lightweight and compact in design, comfortable and ergonomic. It has a beginner mode and is easy for beginner players to use. -
Page 6: Receiver Overview (Take Fs-R4B As An Example )
2.2 Receiver overview (Take FS-R4B as an example ) Sticker Antenna S + - • To ensure the best signal quality make sure that the antenna is mounted perpendicular Note to the model body in an upright position. -
Page 7: Getting Started
FS-MG4 Digital Proportional Radio Control System 3.Getting Started Before operation, install the battery and connect the system as instructed below. 3.1 Transmitter Battery Installation Danger • Only use specified battery. Danger • Do not open, disassemble, or attempt to repair the battery. -
Page 8: Instructions
Note: Wh en bi ndi ng, put th e t ra nsmi tte r into bind mod e first , the n th e rece ive r. • applicable to the FS-MG4 transmitter and the FR-R4B receiver. Different receivers have different bind procedures. For more information visit the FLYSKY website for manuals and other related information. -
Page 9: Stick Calibration
FS-MG4 Digital Proportional Radio Control System 4.4 Stick Calibration This function is used to set the neutral position for throttle and wheel. Ever y transmitter is calibrated before leaving the factor y, however if recalibration is required, please follow these steps: 1. -
Page 10: System Functions
5.System Functions This section focuses on the functions and how to use them. 5.1 Channel Description T h e transmitter outpu ts a total o f 4 cha n nels, wh ich are a llo cated a s follow s: •... -
Page 11: Mode Switching
FS-MG4 Digital Proportional Radio Control System 5.5 Mode switching T h is function is for re using the ST.TRIM an d ST.D / R bu tton s for di f fe re n t ch an n e ls ( see [5. 3 Trims], [5.4 D/R). -
Page 12: Product Specifications
6. Product Specifications This section contains FS-MG4 transmitter and FS-R4B /FS-R4D/FS-R4Preceiver specifications. 6.1 Transmitter specification( FS-MG4) Product Model FS-MG4 Channels Model Type Car, Boat 2.4GHz ISM RF Power <20dBm 2.4GHz Protocol Distance >150m （ground） Channel Resolution 1024 Battery 6V DC 1.5AAA*4... - Page 13 FS-MG4 Digital Proportional Radio Control System FS-R4D: Product Model FS-R4D PWM Channels 2.4GHz ISM 2.4GHz Protocol Distance >150m （ground） Antenna Type single antenna Power 3.5-8.4V RSSI Data Interface Temperature Range -10℃—+60℃ Humidity Range 20—95% Online Update weight 3.4g size 34*18.4*11.5mm...
-
Page 14: Package Contents
7. Package Contents Transmi tter *1（ FS -MG 4) Receiver*1 (FS -R4B ) -
Page 15: Certification
8. Certification 8.1 DoC Declaration Hereby, [Flysky Technology co., ltd] declares that the Radio Equipment [FS-MG4] is in compliance with RED 2014/53/ The full text of the EU DoC is available at the following internet address: www.flysky-cn.com. 8.2 CE Warning The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. -
Page 16: Environmentally Friendly Disposal
9. Environmentally friendly disposal Old electrical appliances must not be disposed of together with the residual waste, but have to be disposed of separately. The disposal at the communal collecting point via private persons is for free. The owner of old appliances is responsible to bring the appliances to these collecting points or to similar collection points. - Page 17 Copyright ©2021 Flysky Technology co., ltd Release date: 2021-04-22 CE， FCC ID： N4ZMG400...
