Product Specifications
Run Time at 50% Load
9.0kW Engine Specifications
Displacement
Spark Plug Part No.
Spark Plug Type
Spark Plug Gap
Gasoline Capacity
Oil Type
Oil Capacity
Run Time at 50% Load
* Go to Generac.com or contact an IASD for replacement parts.

Hour Meter

See Figure 2-5. The Hour Meter tracks hours
of operation for scheduled maintenance.
• The CHG OIL display will illuminate every
100 hours. The message will flash one hour
before and one hour after each 100 hour
interval, providing a two hour window to
perform service.
• The SVC display will illuminate every 100
hours. The message will flash one hour
before and one hour after each 200 hour
interval providing a two hour window to per-
form service.
When the hour meter is in flash alert mode,
the maintenance message will alternate with
elapsed time in hours and tenths. The hours
will flash four times, then alternate with the
maintenance message four times until the
meter automatically resets.
• 100 hours - CHG OIL — Oil Change Inter-
val (Every 100 hrs)
• 200 hours - SVC — Service Air Filter
(Every 200 hrs)
NOTE: The hour glass icon will flash when the
engine is running. This signifies the meter is
recording hours of operation.
0000.0

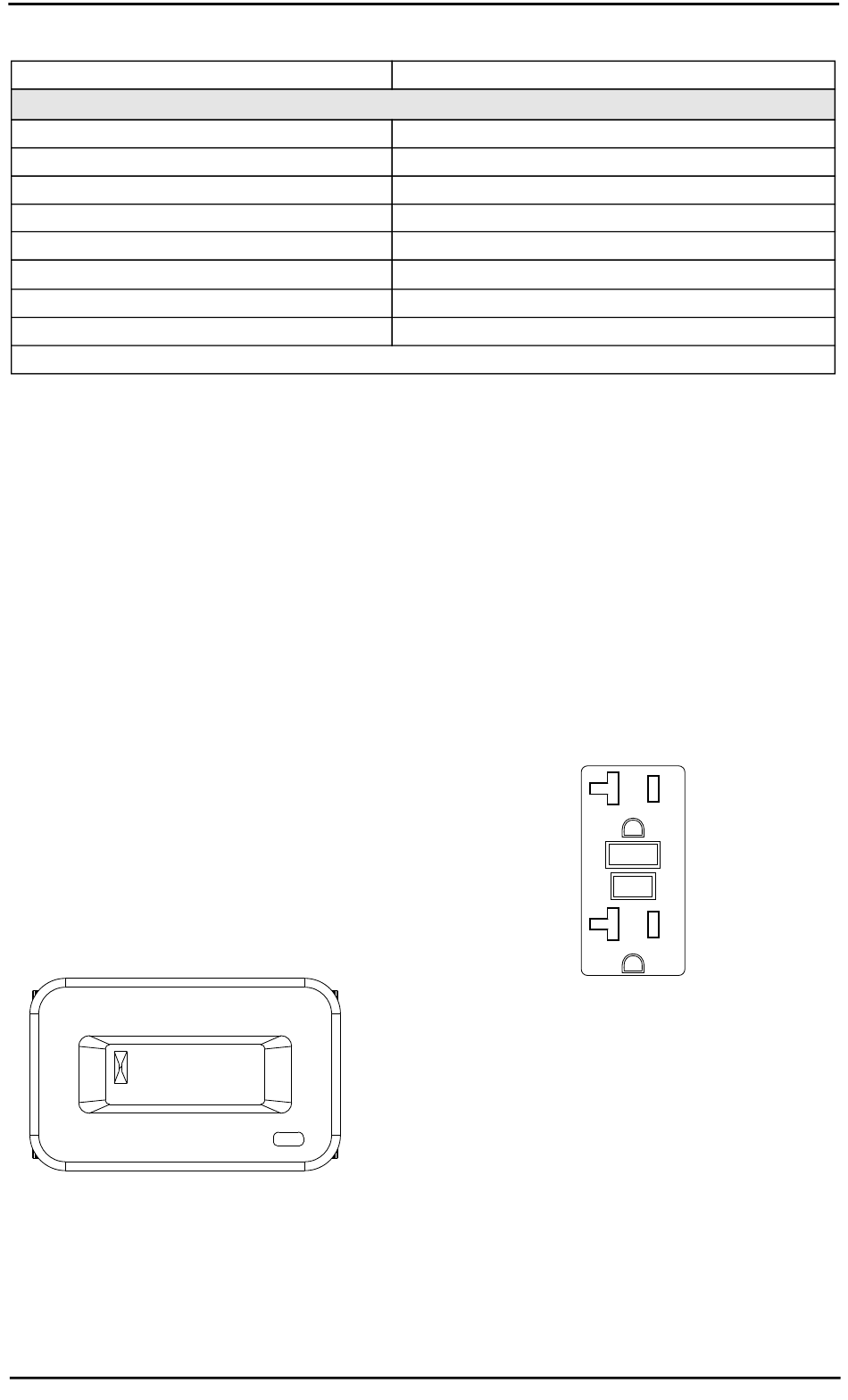

Figure 2-5. Hour Meter
Owner's Manual for Portable Generator
10 Hours
459cc
0J00620106
Bosch F7TC or equivalent
0.028-0.031 inch or (0.70-0.80 mm)
29.9 L (7.9 gal)
Add Engine Oil
See Chart in
1.0 L (1.06 qt.)
8.5 Hours

Connection Plugs

120 VAC, 20 Amp, GFCI Duplex
Receptacle
See
Figure
protected by a 20 Amp push-to-reset circuit
breaker. Each receptacle will power 120 Volt
AC, single phase, 60 Hz electrical loads
requiring up to 2400 watts (2.4 kW) or 20
Amps of current. Use only high quality, well-
insulated, 3-wire grounded cord sets rated for
125 Volts at 20 Amps (or greater). It also pro-
vides protection with a Ground Fault Circuit
Interrupter with a press to TEST and RESET
button.
Figure 2-6. 120 VAC, 20 Amp, GFCI Duplex
120/240 VAC, 30 Amp Receptacle
See Figure
this receptacle (rotate to lock/unlock). Connect
a suitable 4-wire grounded cord set to plug
and desired load. The cord set should be
rated 250 Volts AC at 30 Amps (or greater).
000205
Use this receptacle to operate 120 Volt AC, 60
Hz, single phase loads requiring up to 3600
watts (3.6 kW) of power at 30 Amps or 240
Volt AC, 60 Hz, single phase loads requiring
up to 7200 watts (7.2 kW) of power at 30
Amps. The outlet is protected by one 30 Amp
2-pole circuit breaker.
2-6. The 120 Volt outlet is overload
Receptacle NEMA 5-20R
2-7. Use a NEMA L14-30 plug with
000203
