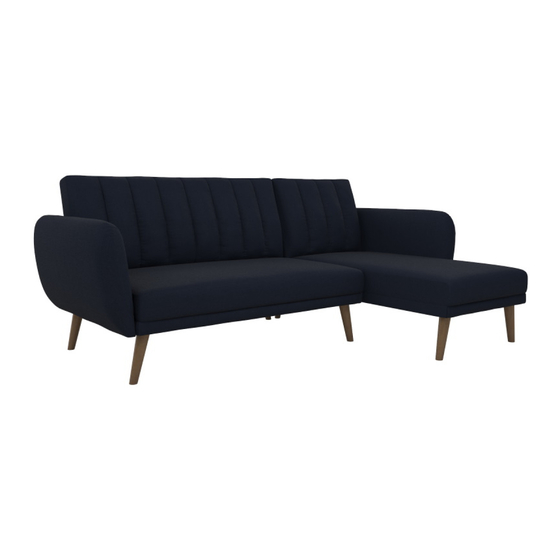

Sectional Futon Sofa
Weight Limit: 600 Lb / 272 Kg
L .J . - 2019.12.24
© 2014 Dorel Home Products All Rights Reserved
Option 1
Option 2
Thank you for purchasing from Dorel UK!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your
replacement parts free of charge.
Call 01942 524100
Email cseurope@dorel.com
Date of Purchase
IMPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE
2276629NUK - Blue Linen
2277929NUK - Green Linen
2275429NUK - Light Grey Linen
Lot Number
B342270000NUK00
1
