Paxton Ins-30000 Net2 classic Quick Start Manual

27/0/200
Ins-30000 Net2 classic quickstart guide
Technical Support
0273 80
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

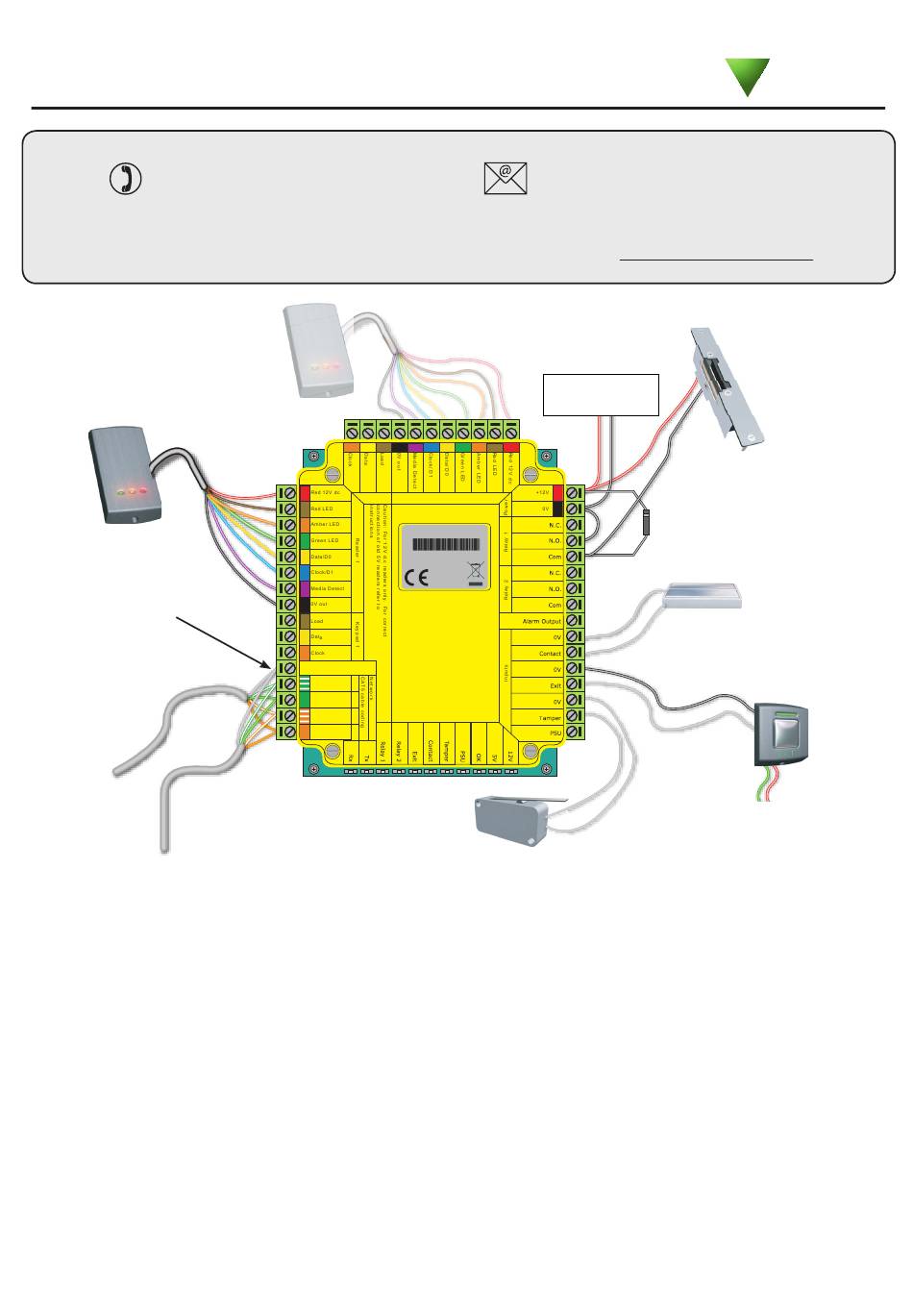

Reader/keypad
(optional)
Reader/keypad
All spare wires/screen
from CAT5/Belden 8723
From previous
ACU
* For a fail open lock (Maglock), the 0V loop wire is connected to the "N.C." terminal. (not the "N.O.")
This ACU has 2 reader ports and 2 output relays, but can control just one door. The configuration
of one control unit per door greatly simplifies installation and is ultimately highly cost effective.
BEFORE CONNECTING THE READER.
Keypad  & 2 inputs are only used for 5V keypads. All other keypads are wired to the Reader ports.
To change a reader port voltage to 5V, move the red jumper(s) located beneath the wiring label to the 5V setting.
This product is not suitable for retail sale. All warranties are invalid if this product is not installed by a competent person.
Technical help is available:
Screen or spare cores from
network cable
1
White/Green
Green 2
White/O rang e 3
Orang e 4
To next ACU
Monday - Friday from 07:00 - 9:00 (GMT)
Saturday from 09:00 - 3:00 (GMT)
Keypad 2 Reader 2
Net2 classic
http://paxton.info/107
PLACE SERIAL
NUMBER
123456
LABEL HERE
0889
Tamper switch
(optional)
support@paxton.co.uk
To 2V DC
power supply
Door contact switch
(held closed by door)
(for Paxton exit buttons
GREEN and RED wires
go to reader terminals)
Paxton
Fail closed
release
*
Exit button
Black/0V and Exit
(push to make)
Page
