Paxton 654-549-US Instructions Manual

Net2 nano control unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

01/28/2013
Ins-40075-US Net2 nano control unit - UL

Technical Support

1.800.672.7298
Technical help is available:
Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/
This access control unit uses wireless communication. It is recommended that a Net2Air
site surveyor is used to determine the best position for the bridge and control units.
This wireless unit requires a Net2Air bridge to communicate with the server PC.

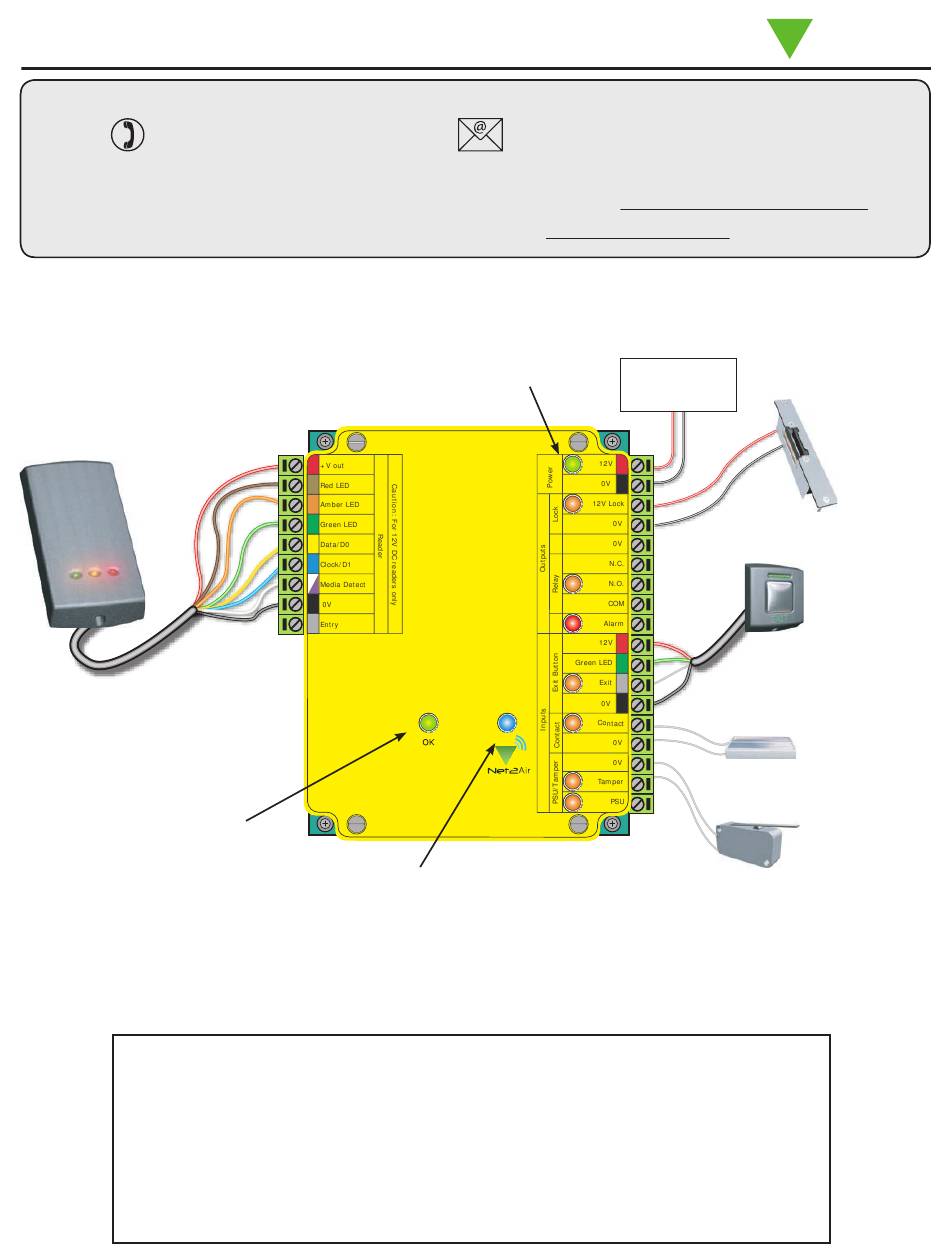

Reader/keypad
*
Not connected
This is the heartbeat of the
system and should pulse
regularly. This indicates that
the processor is functioning.
A new unit requires approximately 30 seconds after initial power up to self configure.
LED indications
12V
Lock
Relay
Alarm
Exit
Contact
Tamper
PSU
Net2Air
OK
For instructions in alternative languages - http://paxton.info/1000
*
Net2Air wireless activity (Tx/Rx) - Blue
During this time the OK LED will not be flashing.
The unit will not operate correctly until this function has completed.
(Green)
- Power LED.
(Orange)
- The 12V lock output is energised.
(Orange)
- The relay is energised - (NO/COM contacts are closed).
(Red)
- 12V Alarm output is active.
(Orange)
- The exit button contacts are closed.
(Orange)
- The door contacts are closed.
(Orange)
- The tamper contacts are closed.
(Orange)
- The PSU contacts are closed.
(Blue)
- Net2Air interface Tx/Rx activity.
(Green flash) - The internal software is running.
supportUS@paxton-access.com
Monday - Friday from 02:00 AM - 8:00 PM (EST)
Diagnostic LEDs
Net2 nano
12V DC
power supply
Lock release
Exit button
(push to make)
Door contact switch
(held closed by door)
Tamper switch
Paxton
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 654-549-US and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Paxton 654-549-US

Summary of Contents for Paxton 654-549-US

  • Page 1: Technical Support

    Technical help is available: Monday - Friday from 02:00 AM - 8:00 PM (EST) Documentation on all Paxton products can be found on our web site - http://www.paxton-access.com/ For instructions in alternative languages - http://paxton.info/1000 This access control unit uses wireless communication. It is recommended that a Net2Air site surveyor is used to determine the best position for the bridge and control units.

  • Page 2: Radio Frequency

    These principles are therefore explained first before we move on to the control unit itself. The access control unit connects to the Net2 software running on the PC using Paxton Net2Air proprietary wireless technology. A Net2Air bridge enables communication from the Net2 software to the Paxton wireless products.

  • Page 3: Cable Type

    PC is updated when it comes back on line. PC installation The current specification for compatible PC hardware, network and operating systems is available on our website at the following link: http://paxton.info/720 Page 3...

  • Page 4: Software Installation

    Full documentation is supplied with the Net2Air bridge unit and also from the website as follows: Only ONE Net2Air USB bridge may be used per system. Multiple Net2Air Ethernet bridges may also be configured. XAN1051 - Installing Net2 software < http://paxton.info/1520 > XIns-40084-US Net2Air USB bridge < http://paxton.info/1453 >...

  • Page 5: System Checks

    Enrolling a Net2 nano A Nano must first bind to a Net2Air bridge before it will enroll itself onto the Net2 system. The term 'bind' is used to denote the fixed relationship between a Nano and its bridge. Create a user record in the database and assign a Net2 token to the user. If you are not using PROXIMITY tokens you should still create the user record and assign a token number (Not a PIN) of your choice.

  • Page 6: Maintenance

    It is advisable to ensure that any third party backup power supplies or recovery procedures are checked regularly to ensure that the operation of the Paxton system is not compromised. 1 - Short circuiting, mutilation or incineration of the cells must be avoided to prevent one or more of the following occurrences;...
  • Page 7 The use of a Fail closed/Secure configuration shall be determined by the local building codes and the local AHJ. Lock wiring - Lock output (12V DC) The lock is wired across the 12V Lock and 0V terminals. No diode or additonal wiring is required. Set the 'Lock output' to 'Door lock' and set the release type to fail locked, fail unlocked, or toggle.

  • Page 8: Exit Button

    Door Bell - Relay output Pressing the bell button on the keypad will energise the Door bell output for 1 second. The Lock output, Relay output or Alarm output must be configured to function as the Door Bell output. This wiring illustration shows the Relay output configured for the Door Bell function.
  • Page 9 Panic hardware A break glass should be fitted, in conjunction with a fail open release to ensure a reliable egress method in the event of an emergency. This is fitted on the 12V supply wire to the lock and drops the power ensuring that the lock opens. The diagram shows how to include the break glass in the Net2 lock wiring circuit.

  • Page 10: Fcc Compliance

    Specifications Features Number of Cards 10,000 Number of PIN's 10,000 Access Levels Time Zones Maximum door open time 1 sec 99,999 sec Number of Codes Doors per ACU Reader ports per ACU Readers per port Keypads per port ACU's per Net2Air bridge - Recommended Net2Air bridge (data lines) per system 30 yds Net2Air wireless range to ACU...
