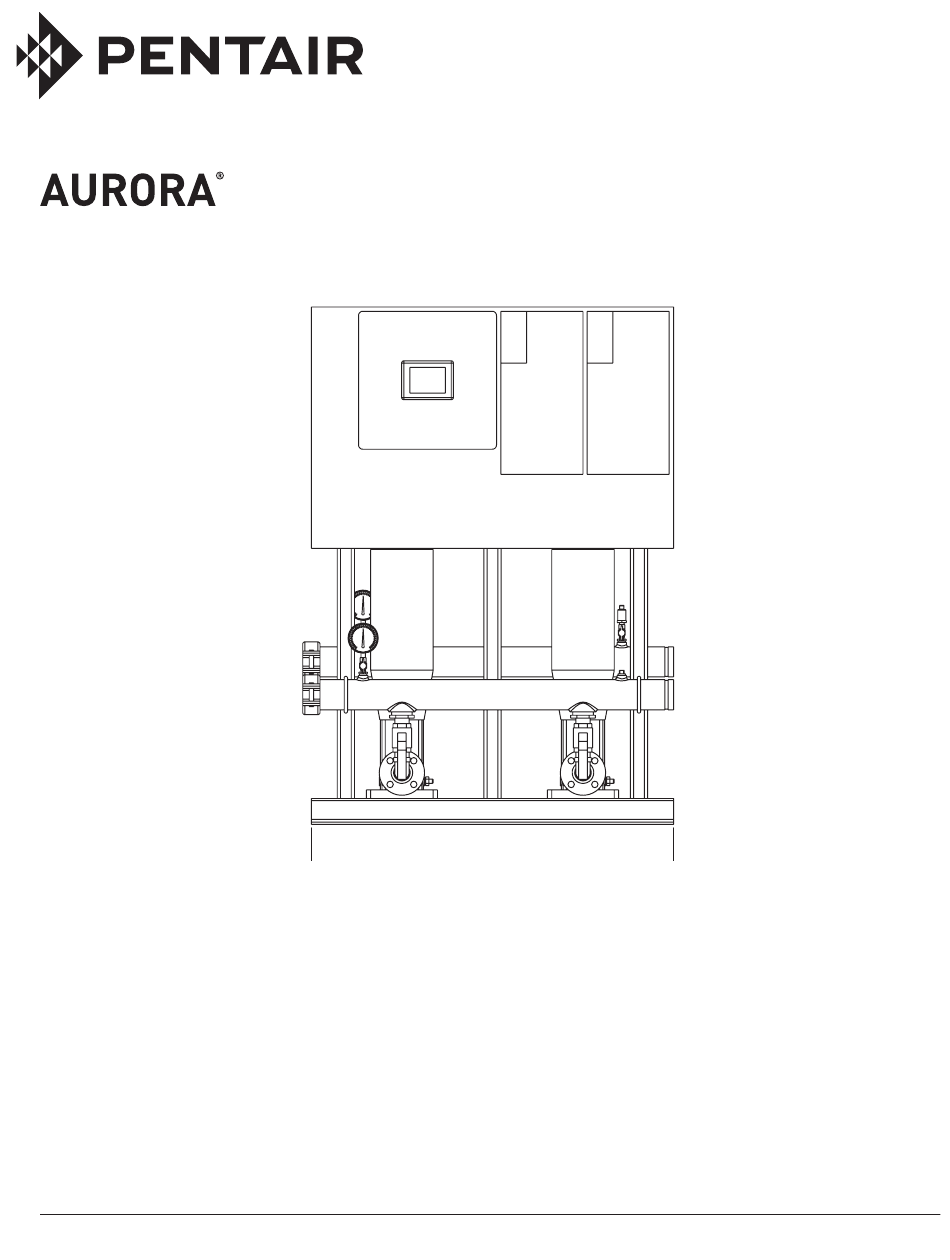

- Page 1 INSTRUCTION AND INSTALLATION MANUAL NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # A-03-324 | © 2012 Pentair Ltd. | 12/03/12...
-
Page 2: System Installation
SECTION 6 ITEM 7710 DATED SEPTEMBER 2009 This instruction and installation manual is applicable to the model 7710 Intelliboost. WARNING Read and address all safety warnings concerning this system. Warnings may be found in this procedure, in the PVM Pump instruction manual, and in the Variable Speed Drive manual. WARNING The voltage used in this system is very dangerous and if connected incorrectly may cause injury or even death. - Page 3 Close all ports used for air release from the system and pumps. l Bring power to the variable speed drives and to the primary PLC control panel. NOTE: Be sure to review the Pentair Variable Speed Drive instruction manual and follow all procedures and warnings.
-
Page 4: Check Pump Rotation
Model 7710 Alternate Parameter Settings for ABB Brand VFDs CHANGE TO DEFAULT Group 98- Options 9802 Comm Prot Sel STD Modbus Not Sel Group 99 – Start Up Data 9901 Language English AM English 9902 APPLIC Macro AVAC Default 9904 Motor Control Mode Scalar: Freq 9905 Motor Nominal Volt per motor data... - Page 5 Model 7710 LOCAL PROGRAMMING TO PRIMARY PLC CONTROLLER 1. Primary PLC Controller Defined The primary PLC controller consists of a programmable logic controller to handle staging of pumps, timers, logic and alarms. All personal access to the PLC is through an HMI module. The HMI (Human Machine Interface) module consists of a touch screen with access to all information about the system and performance settings.
- Page 6 Model 7710 A= Single pump head at 98% full speed lag start speed B= Head of two pumps at reduced speed or lag pump stop speed Full speed with Full speed head with one pump with losses two pumps with losses System Head Duty point one pump Duty point...
- Page 7 Model 7710 Example of alarm settings Suggested settings example(s): Low Suction Pressure. Assume suction pressure varies from 30 PSI to 40 PSI -Low Suction Pressure alarm. Set the alarm condition at 24 PSI and reset at 27 PSI -Low Suction Pressure fault. Set the fault or shut down condition at 18 PSI. Set condition reset at 24 PSI High System Pressure.
- Page 8 Model 7710 4. Programming in the advanced menu Advanced Settings Access l Access to System Timer Settings -All timers in this section will have a factory timer setting. Typically timers are set at 5 seconds and do not need to be changed unless there are operating problems.
-
Page 9: Troubleshooting
9. For other drive related problems, consult the VFD manual. 10. Contact Aurora Pump Systems Group for advice in system set up (boostersystems@pentair.com). If your system is equipped with Ethernet, and has an IP Address assigned, give this to the Aurora Pump representative so that they can observe your settings over the Internet. - Page 10 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 11 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 12: Warranty
WARRANTY Seller warrants equipment (and its component parts) of its own manufacture against defects in materials and workmanship under normal use and service for one (1) year from the date of installation or start-up, or for eighteen (18) months after the date of shipment, whichever occurs first.
