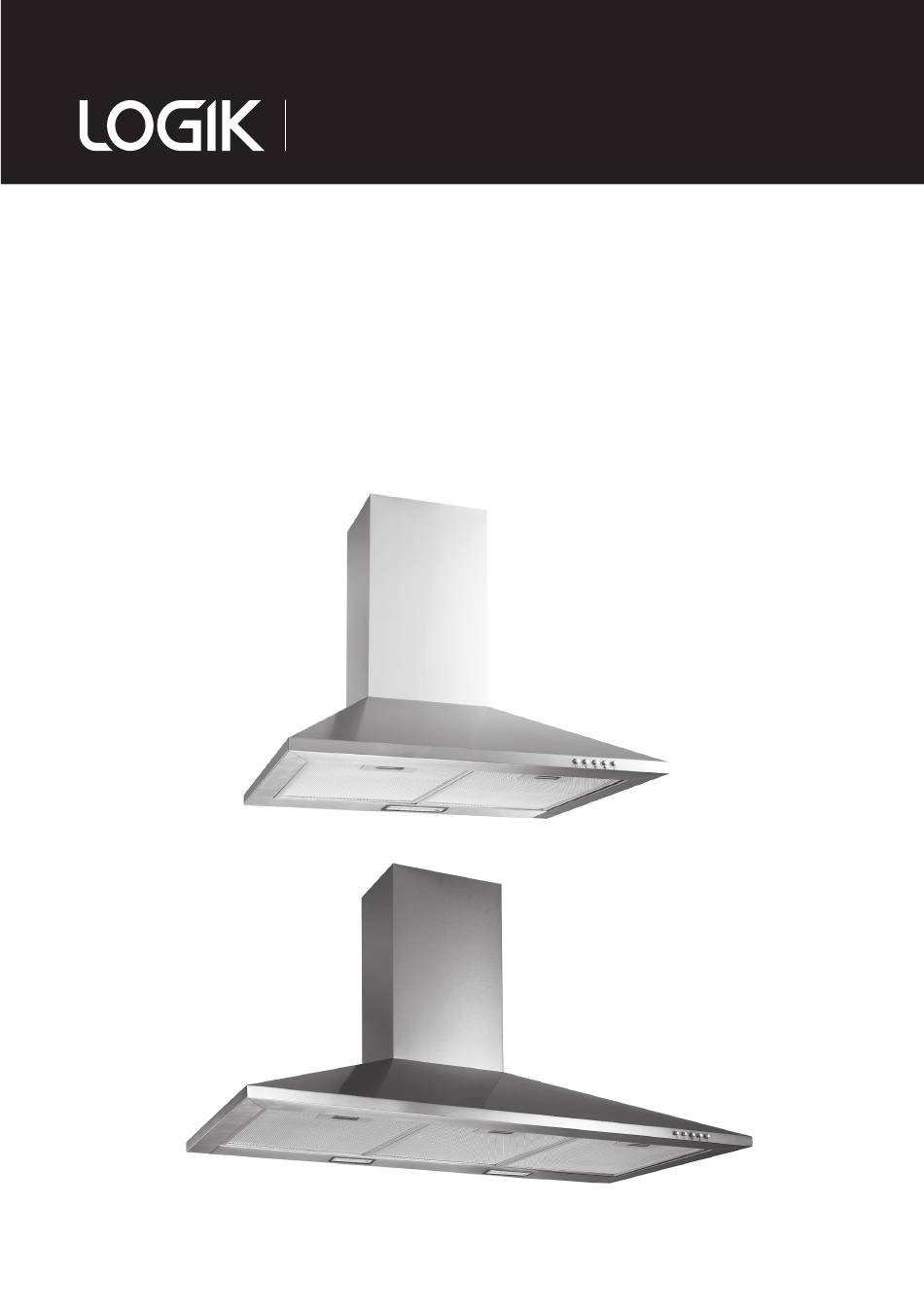

- Page 1 Instruction / Installation Manual 60cm/90cm Stainless Steel Chimney Hood L60CHDX17 / L90CHDX17 L60CHDX17 L90CHDX17...
-
Page 3: Table Of Contents
Contents Safety Warnings ..........................4 Unpacking ............................. 9 Product Overview ........................10 Control Panel ................................10 Modes of Operation ........................11 Air Extraction ................................11 Air Recirculation ..............................11 Operation ............................ 11 To Select the Fan Motor Speed ......................... 11 Hob Lighting ............................... -
Page 4: Safety Warnings
Safety Warnings • This appliance complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. • To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time. - Page 5 • When using the cooker hood over a gas hob, ensure that any burners in use are always covered by a pan. Switch the cooking zone off when a pan is removed, even for a short time. • Regulate the flame so that it does not burn up the sides of the pan. •...
- Page 6 • Faulty components must only be replaced by genuine original parts. • During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when: a) it is switched off at the isolator, or b) the mains fuse is disconnected, or c) it is switched off at the wall socket and the plug withdrawn, or d) the fuse of the fused spur connection unit is withdrawn.
- Page 7 • Ventilation can be maintained by air inlets which must not be blocked, in windows, doors and outside wall vents, or by other technical measures, such as ensuring that the cooker hood can only be switched on when the heating appliance is switched off or vice versa.
- Page 8 Correct Installation • Refer to the cooker or hob manufacturer's instructions as to whether a cooker hood may be operated above the cooker/hob. • The minimum safe distances between the top of the cooker or hob and the bottom of the cooker hood given in the Installation section of this booklet must be maintained, unless the hob/cooker manufacturer states that a greater safe distance is required.
-
Page 9: Unpacking
Thank you for purchasing your new Logik Cooker Hood. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 10: Product Overview
Product Overview Internal Chimney Aluminium Filter External Chimney Illumination Control Panel Control Panel OFF button Motor speed buttons Lamp button... -
Page 11: Modes Of Operation
Modes of Operation The cooker hood works with Air Extraction The air is drawn in and cleaned by the grease filters and directed outside. The flap is closed when the cooker hood is switched off. When the cooker hood is switched on, the non-return flap opens for the cooking vapours to be ducted away. -
Page 12: Cleaning And Maintenance
Cleaning and Maintenance • Before any cleaning or maintenance work is carried out, disconnect the cooker hood from the mains power supply. Ensure that: – it is switched off at the isolator, or – it is switched off at the wall socket and the plug is withdrawn, or –... -
Page 13: Cleaning The Grease Filters By Hand
Cleaning the Grease Filters by Hand • Clean the filters with a soft nylon brush in a mild solution of hot water and a little washing-up liquid. Do not use: • Cleaning agents containing descaling agents. • Powder cleaners, cream cleaners or abrasive all-purpose cleaners. •... -
Page 14: Carbon Filter Usage
Then you will see a black terminal box and take it apart. Disconnect the wire terminals as shown in 1. Push the LED light box outwardly until the box is loosen as shown in 2. Replace the LED light box. L60CHDX17 L90CHDX17... -
Page 15: Hints And Tips
Hints and Tips Problem Solution • Check Electric connection. (The supply voltage should be 220-240 V. The cooker hood must be connected to an earthed socket) Cooker hood does not operate • Check motor speed selector. (Motor speed selector should be in position 1, 2 or 3) •... -
Page 16: Technical Specifications
Total Power (W) 67.5 W (60cm); 70 W (90cm) Lamp 1 x 2.5W LED (60cm); 2 x 2.5W LED (90cm) Features and specifications are subject to change without prior notice. Product Fiche Model no.: L60CHDX17 Symbol Value Unit Annual Energy Consumption 27.2... - Page 17 Model no.: L90CHDX17 Symbol Value Unit Annual Energy Consumption 29.3 kWh/a hood Time increase factor Fluid Dynamic Efficiency 12.8 hood Fluid Dynamic Efficiency class Energy Efficiency Index 66.9 hood Energy Efficiency class Measured airflow rate at the best efficiency 162.7 Measured air pressure at best efficiency point Maximum airflow 341.1...
-
Page 18: Installation
Installation Product Overview Internal Chimney External Chimney Main Hood Unit Internal Chimney Connection Plate External Chimney Connection Plate Hanging Plate... - Page 19 575-955 600/900 All dimensions shown are in mm.
-
Page 20: Safety Distance Between Hob And Cooker Hood
Safety Distance Between Hob and Cooker Hood When planning the installation height of your cooker hood, the minimum safe distance between the top of a cooker or hob and the bottom of the cooker hood should be at least 650mm, unless a greater distance is specified by the manufacturer of your cooking appliance. -
Page 21: Connection For Air Extraction
Connection for Air Extraction To avoid the danger of toxic fumes, please observe the Safety Warnings. This is especially crucial when using the cooker hood at the same time as another heating appliance which relies on air from the same room. The cooker hood should be installed according to the local and national building regulations. -
Page 22: Mounting The Cooker Hood
Mounting the Cooker Hood • We recommend professional tradespersons are consulted prior to the fitting of this appliance. • Each installation is different and these instructions should be used as a guide only. If in doubt consult professional tradespersons. • Air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels. - Page 23 Assembling Hanging Plate Holes Drill (A, B, C, D, E) holes on marked points by using a Ф8mm drill bit. Push 5 pcs of plastic wall plugs into the drilled holes (A, B, C, D, E). Put the hanging plate on the holes A, B, C. Using the supplied 4 x 40mm screws;...
