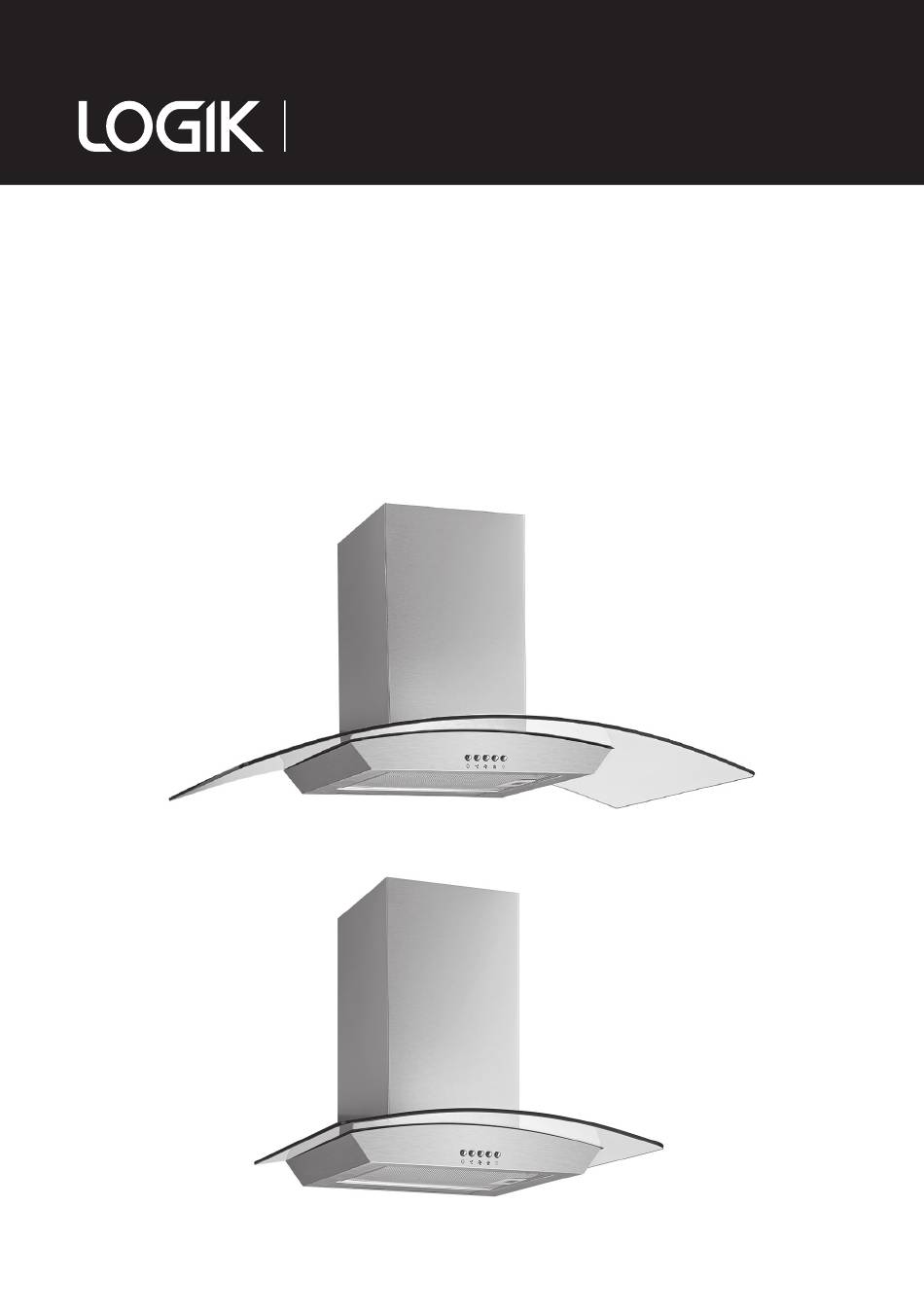

60cm/90cm Glass
Chimney Hood
L60CHDG14/L90CHDG14
Instruction / Installation Manual
L90CHDG14
L60CHDG14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L60CHDG14 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Logik L60CHDG14

  • Page 1 Instruction / Installation Manual 60cm/90cm Glass Chimney Hood L60CHDG14/L90CHDG14 L90CHDG14 L60CHDG14...
  • Page 3: Table Of Contents

    Contents Safety Warnings ..........................4 Unpacking ............................. 9 Product Overview ........................10 Control Panel ................................10 Modes of Operation ........................11 Air Extraction ................................11 Air Recirculation ..............................11 Operation ............................ 11 To Select the Fan Motor Speed ......................... 11 Hood Lighting .................................
  • Page 4: Safety Warnings

    Safety Warnings • This appliance complies with all relevant local and national safety requirements. Inappropriate use can, however, lead to personal injury and damage to property. • To avoid the risk of accidents and damage to the appliance, please read these instructions carefully before using it for the first time.
  • Page 5 • When using the cooker hood over a gas hob, ensure that any burners in use are always covered by a pan. Switch the cooking zone off when a pan is removed, even for a short time. • Regulate the flame so that it does not burn up the sides of the pan. •...
  • Page 6 • During installation, maintenance and repair work, the appliance must be disconnected from the mains electricity supply. It is only completely isolated from the electricity supply when: a) it is switched off at the isolator, or b) the mains fuse is disconnected, or c) it is switched off at the wall socket and the plug withdrawn, or d) the fuse of the fused spur connection unit is withdrawn.
  • Page 7 • Ventilation can be maintained by air inlets which must not be blocked, in windows, doors and outside wall vents, or by other technical measures, such as ensuring that the cooker hood can only be switched on when the heating appliance is switched off or vice versa.
  • Page 8 Correct Installation • Refer to the cooker or hob manufacturer's instructions as to whether a cooker hood may be operated above the cooker/hob. • The minimum safe distances between the top of the cooker or hob and the bottom of the cooker hood given in the Installation section of this booklet must be maintained, unless the hob/cooker manufacturer states that a greater safe distance is required.
  • Page 9: Unpacking

    Thank you on the purchase of your new Logik Chimney Hood. We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference.
  • Page 10: Product Overview

    Product Overview 1. Recirculation Vents 4. Control Panel 2. Internal Chimney 5. Illumination 3. External Chimney 6. Aluminium Filter Control Panel 1. OFF button 2. Motor speed buttons 3. Lamp button...
  • Page 11: Modes Of Operation

    Modes of Operation The cooker hood works with Air Extraction The air is drawn in and cleaned by the grease filters and directed outside. Having a non-return flap fitted in the ducting ensures that air, once ducted to the outside, cannot get back into the room again. The flap is closed when the cooker hood is switched off.
  • Page 12: Cleaning And Maintenance

    Cleaning and Maintenance • Before any cleaning or maintenance work is carried out, disconnect the cooker hood from the mains power supply. Ensure that: – it is switched off at the isolator, or – it is switched off at the wall socket and the plug is withdrawn, or –...
  • Page 13: Cleaning The Grease Filters By Hand

    Cleaning the Grease Filters by Hand • Clean the filters with a soft nylon brush in a mild solution of hot water and a little washing- up liquid. Do not use: • Cleaning agents containing descaling agents. • Powder cleaners, cream cleaners or abrasive all-purpose cleaners. •...
  • Page 14: Carbon Filter Usage

    Carbon Filter Usage Your product is compatible with one type of carbon filter (carbon filters are not provided). • Before installing or replacing the carbon filters, you should switch off and disconnect the electricity supply. • The carbon filters should never be washed. •...
  • Page 15: Hints And Tips

    Hints and Tips Problem Solution • Check Electric connection. (The supply voltage should be 220-240 V. The cooker hood must be connected to an earthed socket.) Cooker hood does not operate • Check motor speed. (Motor speed should be in position •...
  • Page 16: Technical Specification

    Technical Specification Model no. L60CHDG14/L90CHDG14 Extraction Rate (m Voltage (V) 220 – 240 ~ Frequency (Hz) Total Power (W) Lamp 2 × 40 W (Max) Features and specifications are subject to change without notice.
  • Page 17: Installation

    Installation Product Overview 1. Internal Chimney 2. External Chimney 3. Main Hood Unit 4. Internal Chimney Connection Plate 5. External Chimney Connection Plate 6. Hanging Plate...
  • Page 18 All dimensions shown are in mm.
  • Page 19: Safety Distance Between Hob And Cooker Hood

    Safety Distance Between Hob and Cooker Hood When planning the installation height of your cooker hood, the minimum safe distance between the top of a cooker or hob and the bottom of the cooker hood should be 650mm, unless a greater distance is specified by the manufacturer of your cooking appliance.
  • Page 20: Connection For Air Extraction

    Connection for Air Extraction To avoid the danger of toxic fumes, please observe the Safety Warnings. This is especially crucial when using the cooker hood at the same time as another heating appliance which relies on air from the same room. The cooker hood should be installed according to the local and national building regulations.
  • Page 21: Mounting The Cooker Hood

    Mounting the Cooker Hood • We recommend professional tradespersons are consulted prior to the fitting of this appliance. • Each installation is different and these instructions should be used as a guide only. If in doubt consult professional tradespersons. 1. We recommend that for air extraction installations, a professional tradesperson is consulted prior to any work being undertaken.
  • Page 22 6. Assembling Hanging Plate Drill (A, B, C, D, E) holes on marked points by using a Ф8mm drill bit. Push 5 pcs of plastic wall plugs into the drilled holes (A,B,C,D,E). Put the hanging plate on the holes A, B, C. Using the 4 x 40mm supplied screws, screw the hanging plate into the A, B, C holes.
  • Page 24 For general information about this appliance and handy hints and tips, please visit www.knowhow.com/knowledgebank or call 0844 5611234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
