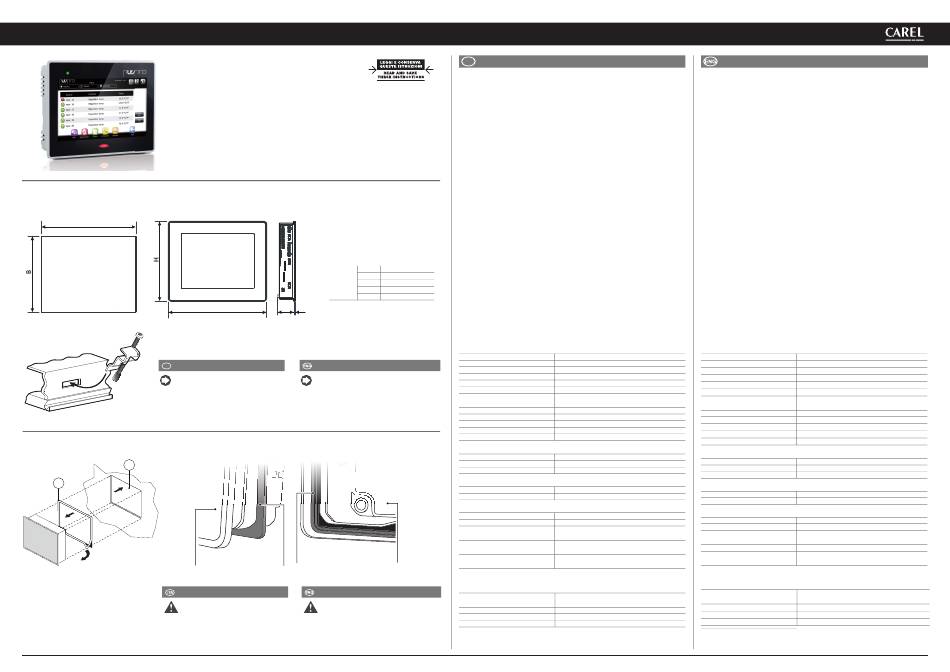

+050001645 - rel.1.2 - 30.04.2015
スーパーバイザソリューション / Supervisor solutions

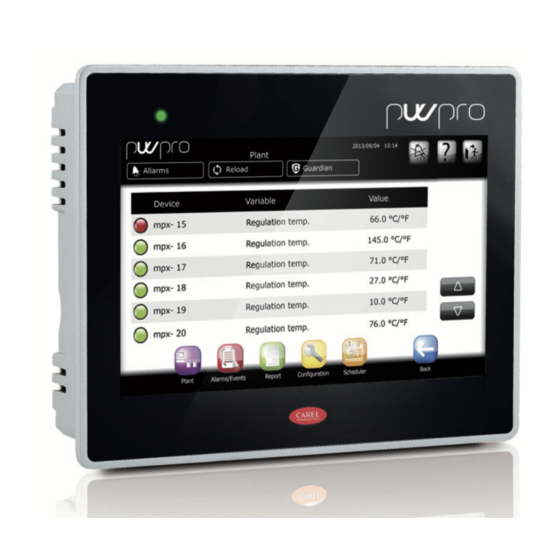

PlantWatchPRO -
アセンブリと取付け / Assembly and installation
寸法と
ドリル穴 / Dimensions and drilling template (in mm/inc.)
A
drilling template
Fig. 1
注記
JPN
ベゼルの角がパネルに接触するま
で、各固定ネジを締めます。 ディ
スプレイから保護フィルムを取り
外します。
Fig. 2
ガスケットの取付け / Applying the gasket
B
A
3
2
1
display
Fig. 3
凡例:
警告
A. ガスケット
Gasket
ガスケットが端子部(図)に向
B. 切抜き部への取付け
Installation cut-out
かって部分的に取り付けられて
いるガスケットが破損している
か、端子部を越えて延びている
場合、IP65保護レベルは保証され
ません。
A
176 (06.90")
B
136 (05.35")
Model
C
45 (01.77")
PW3P*
H
147 (05.79")
L
187 (07.36")
L
C
4mm
0.16"
NOTE
Screw each fi xing screw until the bezel
corner gets in contact with the panel.
Remove the protective fi lm from the display.
フラット面のガスケット
ストライプ面のガスケット
flat side gasket
striped side gasket
Fig. 4
WARNING
Mount the gasket with the fl at part
towards the terminal (fi gure) If the gasket is
damaged or extends past the terminal, the
IP65 protection level is not guaranteed.
重要
JPN
梱包内容
1. PlantWatchPRO本体
2. ネジ付きアタッチメントフックキット
3. 電源コネクタおよびRS485
4. 取説
インストール時の警告
最先端の設置については、資格のあるインストーラに連絡してくださ
い。 以下の特性を持つ環境に端末を設置しないでください。
· 技術仕様に示されている相対湿度よりも高い相対湿度
· 強い振動や衝撃
· その後の腐食および/または酸化を伴う攻撃的および汚染雰囲気(すな
わち、硫酸およびアンモニアガス、塩蒸気、煙)への暴露
· 高い磁気および/または電波干渉のある雰囲気(したがって、送信アン
テナの近くに機械を設置することは避けてください)
· 直射日光や通常の天候への暴露
· 広範囲で急速な温度変動
· 爆発物または可燃性ガスの混合物がある場所
一般的な警告
次の要件を満たす必要があります。
Ethernet™およびRS485通信ネットワークの場合は、シールドケーブルのみ
を使用してください。
指定と異なる電源電圧はシステムに重大な損傷を与える可能性があります。
使用中の端子台に適したワイヤ端子を使用してください。 各ねじを緩
め、ワイヤー端子を差し込み、ねじを締めます。 操作が完了したら、
ケーブルを少し引っ張って、正しく締めてください。
• 電源ONの時は製品を開けないでください。
• 特に低い温度は、ディスプレイ上の応答速度の目に見える減少を引き起
こす可能性があります。 これは正常とみなされ、誤動作の兆候ではあり
ません。
技術仕様
ディスプレイ
タイプ
LCD TFT
解像度
800x480 (WVGA);
実効表示領域
7" diagonale, 16/9
64 K
バックライト
LED
輝度制御
はい
上/下= 60/50度
視野角(CR≧10)
左/右= 60/60度
コントラスト比(平均)
250 (Φ=0°)
応答時間(最大)
Tr =10 ms; Tf =16 ms
色度(CIE)
白 (Ø = 0°) x = 0.249÷0.349; y = 0.278÷0.378
輝度(平均)
180 cd/m2
均一性(平均)
70 %
システムリソース
マイクロプロセッサ
TI AM3505 – 600MHz
ユーザーメモリ
32 + 512 MB Flash
RAM
256 MB DDR2
ユーザーインターフェース
タッチスクリーン
抵抗性
システムLEDインジケータ
1緑と1赤
インターフェース
イーサネットポート1
Auto-MDIX 10/100 Mbit - RJ45 雌
イーサネットポート2
Auto-MDIX 10/100 Mbit - RJ45 雌
ホストインタフェース2.0 - USBタイプA
USBポート
メス最大500 mA Lmaxケーブル<1m
RS485最大115 Kb - ネジ接続ピッチ5.08
シリアルポート1
背面
RS485最大115 Kb 光学的に非絶縁、ネジ
シリアルポート2
rear display
接続ピッチ5.08
注:通信インターフェイスは、TNVタイプではなく、SELV CIRCUITタイプです。
定格
24 Vac -15÷10% 50÷60 Hz Max 1.3 A (27 VA) -
PW3P*の電源
14...30 Vdc ±15% Max 0.8 Adc a 14 Vdc
電源線の最少断面積
0,5 mm
2
最大電力消費
12 W
ヒューズ
自動
IMPORTANT
Packaging content
1. PlantWatchPRO
2. Attachment hook kit with screws;
3. power supply connectors and RS485
4. technical leafl et
Warnings for installation
For state-of-the-art installation, contact qualifi ed installers. Avoid installing the
terminal in environments with the following characteristics:
• relative humidity greater than that indicated in the technical specifi cations;
• strong vibrations or impacts;
• exposure to aggressive and polluting atmospheres (i.e.: sulphuric and ammonia
gases, salt vapours, smoke) with subsequent corrosion and/or oxidation;
• high magnetic and/or radio interference (therefore, avoid installing machines
near transmitting antennas);
• exposure to direct sunlight and weather in general;
• wide and rapid temperature fl uctuations;
• areas where there are explosives or mixtures of fl ammable gases.
General warnings
The following requirements must be met:
• for Ethernet™ and RS485 communication networks, only use shielded cables;
• a power supply voltage that diff ers from the one required could seriously
damage the system;
• use wire terminals suitable for the terminal boards in use. Loosen each screw and
insert the wire terminal then tighten the screws. When the operation is complete,
pull the cables slightly to make sure they are properly tightened;
• do not open the product when it is under power;
• particularly low temperatures could cause a visible decrease in the response
speed on the display. This is considered normal and is not a sign of malfunction.
Technical characteristics
Display
Type
LCD TFT
Resolution
800x480 (WVGA);
Active display area
7" diagonal, 16/9
Colors
64 K
Backlighting
LED
Brightness control
Yes
Top / Bottom = 60/50 deg.
Viewing Angle (CR ≥10)
Left / Right = 60/60 deg.
Contrast ratio (min.)
250 (Φ=0°)
Response Time (max.)
Tr =10 ms; Tf =16 ms
Color chromaticity (CIE)
White (Ø = 0°) x = 0.249÷0.349; y = 0.278÷0.378
Luminance (min.)
180 cd/m2
Uniformity (min.)
70 %
System resources
Microprocessor
TI AM3505 – 600MHz
User memory
32 + 512 MB Flash
RAM
256 MB DDR2
User interface
Touchscreen
Resistive
Indicatori LED sistema
1 green e 1 red
Interfacce
Ethernet Port 1
Auto-MDIX 10/100 Mbit - RJ45 female
Ethernet Port 2
Auto-MDIX 10/100 Mbit - RJ45 female
Host interface 2.0 - USB tipo A female
USB Port
500 mA max Lmax cable < 1m
Serial port 1
RS485 max 115 Kb - Screw connections pitch 5.08
RS485 max 115 Kb not optically-isolated
Serial port 2
Screw connections pitch 5.08
Note: the communication interfaces are not type TNV but SELV CIRCUIT type.
Ratings
24 Vac -15÷10% 50÷60 Hz Max 1.3 A (27 VA) -
PW3P* power supply
14...30 Vdc ±15% Max 0.8 Adc a 14 Vdc
Minimum power cross-section
0,5 mm
2
Max. power consumption
12 W
Fuse
Automatic
