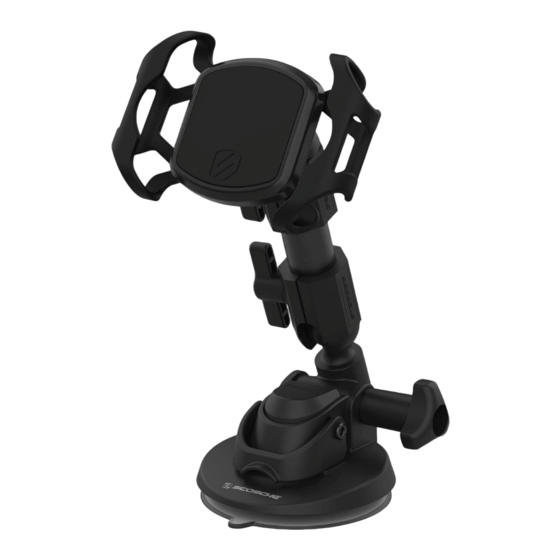

Scosche MAGIC MOUNT PSM11023 Quick Start Manual

Suction cup mount

SUCTION CUP MOUNT

MAGIGMOUNT"

PARTS INCLUDED

1. (1) Elastic Band

2. (1) MAGICMOUNT'

3. (1) Cleaning Wipe

4. (2) Set of Ball Joint Adapters w/ Tightening Knob & Washers

5. (1) Press and Lever Adjustable Securing Suction Base

6. (1) Extension Bar

www.scosche.com/register

MAGIC MOUNT

CONTENT

w/ Mounting Plates

PSM11023

™

Base

>I(__ Adjustment

Knob

Table of Contents

Do you have a question about the MAGIC MOUNT PSM11023 and is the answer not in the manual?

Page 1 Register your product online at PSM11023 ™ MAGIC MOUNT SUCTION CUP MOUNT MAGIGMOUNT" Base >I(__ Adjustment Knob CONTENT PARTS INCLUDED 1. (1) Elastic Band 2. (1) MAGICMOUNT' w/ Mounting Plates 3. (1) Cleaning Wipe 4. (2) Set of Ball Joint Adapters w/ Tightening Knob & Washers 5.
Page 2 Qi-enabled Smartphones REMOVING THE MAGICPLATE'" Use a thin plastic card to carefully lift the plate's adhesive surface from the mounting surface. Slowly lift up and remove the plate. For complete warranty details, please visit us at -.scosche.com or call (800) 363-4490...
Page 3 MAGICMOUNT ASSEMBLY ™ Insert the MAGICMOUNr" pivot ball through the center of the elastic band (A), see assembled example illustration on right. Secure the elastic band Securing L'.Hook using the securing hook located on the backside fflJ ™ of the MAGICMOUNT (B), see illustration on right.
Page 4 Firmly apply pressure to the button labeled PRESS to create a vacuum to the suction (K). Set the lever to the bottom position (L) to secure the suction and the mount to the designated mounting location. ©2019 SCOSCHE INDUSTRIES, INC. PSM11023 06/19...
