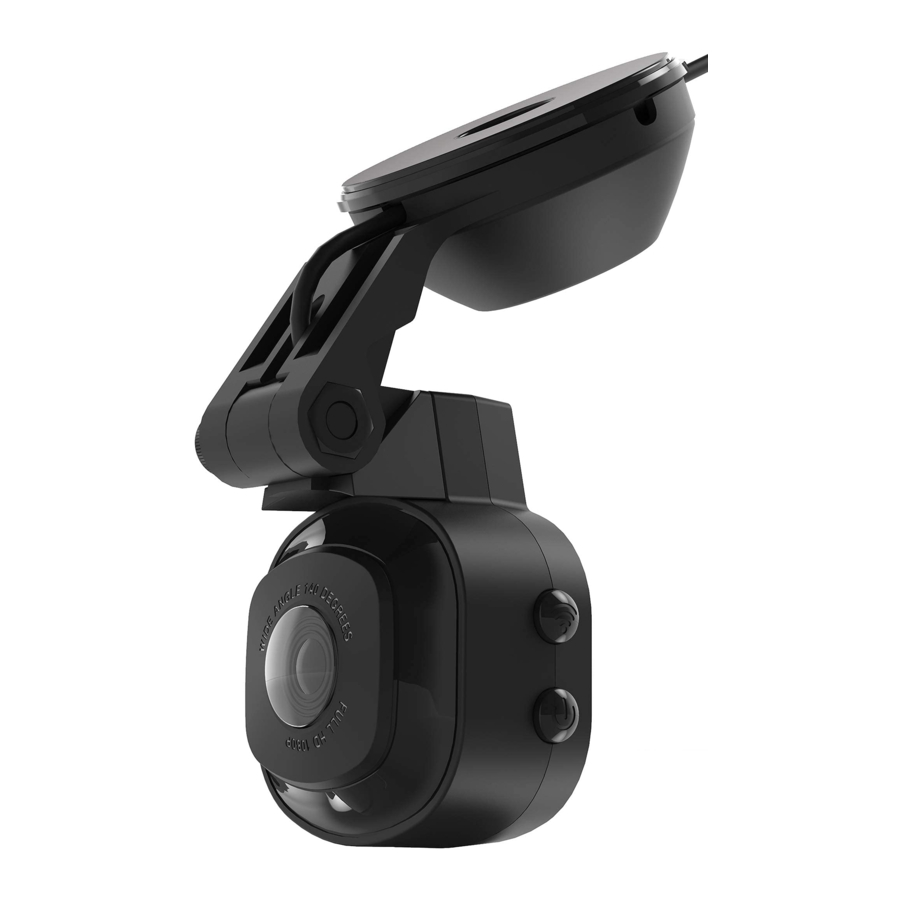

Scosche NEXC1 Manual

Installation

  1. Download Nexar from your app store.
    For iPhone nxr.cm/ios

www.apple.com

For Android nxr.cm/android

play.google.com

  1. Open the app and enable all necessary settings when prompted, be sure to enable Location Services to activate automatic recording when you're driving.
  2. Insert the type-c charging mount into the matching slot on the dash cam's POWER port, see illustration below.
  3. Insert Micro-SD card into designated slot.
    Installation - Step 1 - Insert Micro-SD card
  4. Connect the other end of the charging cable to the USB charger and plug the charger into your car's power socket.
    Installation - Step 2 - Connect the charging cable
    Note: If your dash camera came with a hard-wiring kit, or you have purchased one separately, please refer to the instructions that came with the hard-wiring kit.
  5. Start the car to power on the camera. The camera will power on when the vehicle is on, and power off when the vehicle is off.
  6. Follow the instructions in the app to pair your phone with the dashcam.
    Tip: Shared car?
    Make sure all drivers download the Nexar app and pair it with the dash cam.
  7. Pick an installation area on your windshield. We recommend placing the dash cam behind the rear-view mirror and checking the camera view in the Nexar app.
    Installation - Step 3
    DO NOT MOUNT CAMERA in a location that will obstruct the driver's view It is the user's responsibility to mount the device in compliance WITH all applicable laws and ordinances.
    Thoroughly clean windshield where the unit will be mounted.
    Firmly apply the suction mount to the windshield (A) and press on the lever to secure suction grip (B).
    Note: Make sure lever is released before applying to the windshield, for best results.
    Installation - Step 4

Cable Routing

  1. Sit in passenger seat.
  2. Gently pull down the edge of the fabric along the top edge of the windshield just wide enough to hide the power cable behind. If needed, use the provided pane/trim tool.
  3. Push the cable behind the headliner towards the door opening.
    Note: The 11.5 ft. power cable is designed with over-molded headliner retention balls to help secure the cable in place.
    Cable Routing - Step 1 - Push the cable
    This installation method is meant only for vehicles in which curtain airbags are NOT installed in the window frame. This method CANNOT be used in vehicles equipped with curtain airbags. Hiding, tucking or installing the wiring of your dash cam by this method could interfere with your vehicle's curtain airbags and can be extremely dangerous. If you are unsure about the location of your vehicle's airbags, DO NOT use this method for the aforementioned reasons.
  4. Open passenger door and conceal the cable behind or between the trim and the door opening.

    Use caution to ensure the cable won't be pinched, crushed or placed near any sharp surfaces.
  5. Route the cable down to the passenger footwell.
  6. Conceal the remaining cable under the carpet toward the location of the USB power socket.
    Easy Install: For vehicles with curtain airbags.
    Use the provided adhesive cable guides to route cable along the edge of windshield.
    Cable Routing - Step 2

Scan the QR code to watch a video on how to hide the cable.
https://youtu.be/rv1aq0oEOrlJ

Features

Light Indicators

  • LED OFF = Camera OFF
  • Solid Red LED = Camera ON, but NOT recording
  • Flashing Red LED = Camera ON and recording

Parts Included

Parts Overview

  1. Adjustable Docking Suction Mount
  2. NEXS11 Dash Cam w/internal SD
  3. Panel Removal Tool
  4. 12-Volt Power Socket Connector
  5. (5) Zip-Ties
  6. (4) Rubber Straps
  7. (4) Adhesive Rubber Cable Clips
  8. (1) Micro SD Memory Card
  9. Cleaning Wipes (1) Wet, (1) Dry

Dash Cam Features

Dash Cam Features Overview

  1. Type-C USB Power Input
  2. Quick Release Docking Slot
  3. 140° Wide-angle Lens
  4. LED Indicator
  5. Microphone
  6. Capacitive Touch (Event Capture)
  7. Speaker
  8. WiFi Connection Power Button
  9. Memory Card Slot

Safety tips and care

  • The dash cam turns on/off automatically whenever you start/stop your car.
  • The dash cam functions between -4° to 158°F (-20° to 70°C).
  • Improper battery charging may lead to explosion of the device.
  • When cleaning, avoid irritating chemical solvents, use a damp paper towel or soft cloth. Keep away from fire.

If your dash cam isn't working, don't try to repair it yourself. Please contact us at:
(800) 363-4490 x1
www.scosche.com/contact
or visit, getnexar.com/faq
