Scosche TerraClamp Add a Knuckle Manual

PARTS INCLUDED

1. (1) Pivot Joint

2. (1) 1.5" Extension Bar

3. (2) Adjustment Knobs w/ Washers

4. (2) Mounting Adapters (pairs)

*Caution: This magnetic mount is not a toy.

The small magnetics are ham,ful if swallowed. Keep

out of reach of children.

WARNING: Do not use the magnetic mount with

any hard-drive based devices such as iPod

classic, iPod video and Zume MP3 players.

www.scosche.com/register

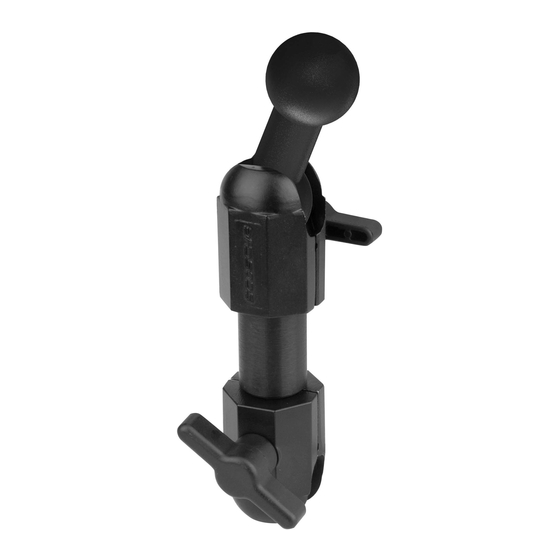

TerraClamp

Add a Knuckle

PSM11016

Table of Contents

Do you have a question about the TerraClamp Add a Knuckle and is the answer not in the manual?

Page 1 Register your product online at PSM11016 TerraClamp Add a Knuckle PARTS INCLUDED 1. (1) Pivot Joint 2. (1) 1.5" Extension Bar 3. (2) Adjustment Knobs w/ Washers 4. (2) Mounting Adapters (pairs) *Caution: This magnetic mount is not a toy.
Page 2 PSM11013 - TerraClamp MagicMount Pro FrokStem PSM11014 - TerraClamp MagicMount Brake/Clutch PSM11015 - TerraClamp MagicMount Triple Clamp PSM11016 • TerraClamp Add a Knuckle PSM11017 - TerraClamp MagicMount Pro Small PSM11018 - TerraClamp MagicMount Pro Large (Reference Assembly) Instructions 1. Mount one end of the knuckle joint into the two bar extension adapters (A) along with the bar extension (B).
Page 3 ASSEMBLY G'�; · : � "":"':' -'\,..• Additional Terra Clamps SoId Separately...
Page 4 NOTE: When loosened the angle of the bar is capable of 360' rotation for positioning. For complete warranty details, please visit us at -.scosche.com or call (800) 363-4490 ©2018 SCOSCHE INDUSTRIES, INC. SI 300PSM 11016 02/18...

Psm11016
