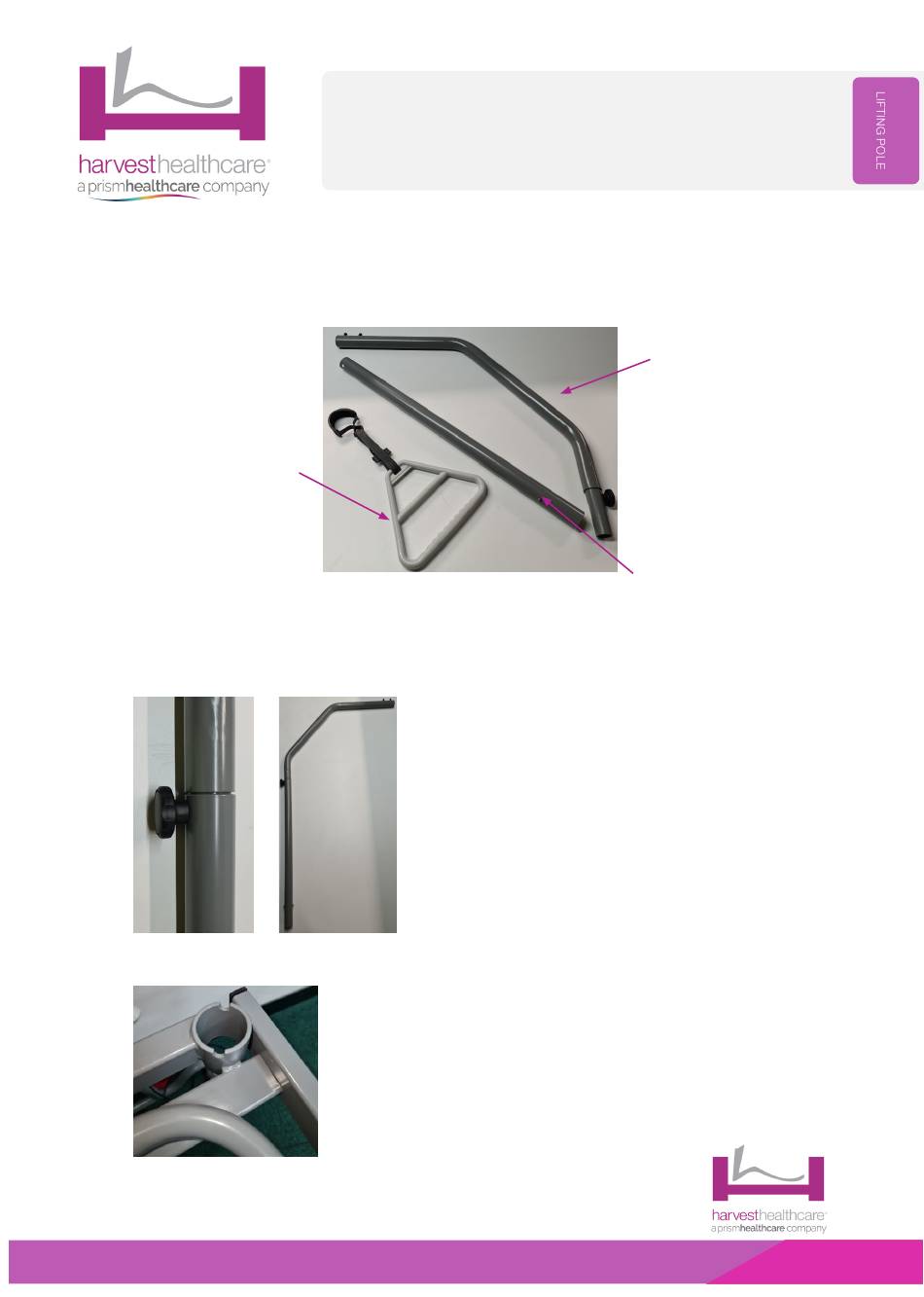

Standard Lifting Pole - Product Code: HLDW582
1.
Components
Triangle with
lifting strap
2.
Remove the hand screw from the top (curved section)
3.
Insert the top section into the lower section and align the hole with the thread for the hand-screw,
install the hand-screw and tighten.
4.
Install the assembled lifting pole into one of the sockets on the head section of the bed.
Sheaf House, Bradmarsh Business Park, Bradmarsh Way, Rotherham S60 1BW
T +44 (0)1709 377172 F +44 (0)1709 377173 E sales@harvesthealthcare.co.uk
STANDARD LIFTING POLE
HLDW582
Top section
with hand
screw
Lower section with
locating lugs at the
bottom.
Advertisement
Table of Contents
Related Manuals for Prism Healthcare Harvest Healthcare HLDW582
Summary of Contents for Prism Healthcare Harvest Healthcare HLDW582
- Page 1 STANDARD LIFTING POLE HLDW582 Standard Lifting Pole - Product Code: HLDW582 Components Top section with hand screw Triangle with lifting strap Lower section with locating lugs at the bottom. Remove the hand screw from the top (curved section) Insert the top section into the lower section and align the hole with the thread for the hand-screw, install the hand-screw and tighten.

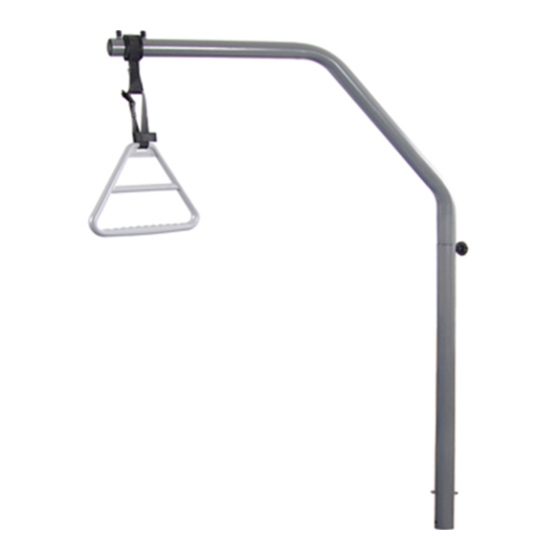

- Page 2 STANDARD LIFTING POLE HLDW582 Ensure the lifting pole is pointing towards the centre of the mattress platform and the lugs on the lifting pole are fully located in the slots on the socket. Check the strap on the triangle is secure and routed through the buckle correctly Attach the strap to the lifting pole between the 2 locating lugs Standard Lifting Pole Assembled...
- Page 3 ULTIMATE LIFTING POLE HLDU582 / HLDU582.14 Ultimate Lifting Pole - Product Codes: HLDU582 / HLDU582.14 Components 2 x lower sections with locating lugs at the bottom 2 x Upper sections with hand screws Triangle with lifting Central section strap with hand screws Remove the hand screw from the 2 upper (large curved) sections Insert the 2 upper sections into the 2 lower (straight) sections and align the holes with the thread for the hand-screw, install the hand-screws and tighten.
- Page 4 ULTIMATE LIFTING POLE HLDU582 / HLDU582.14 Join the central section to the 2 lower sections, install and tighten the hand-screws. Install the assembled lifting pole into both sockets at the head section of the bed. Ensure the lifting pole is pointing towards the centre of the mattress platform and the lugs on the lifting pole are fully located in the slots on the socket.
