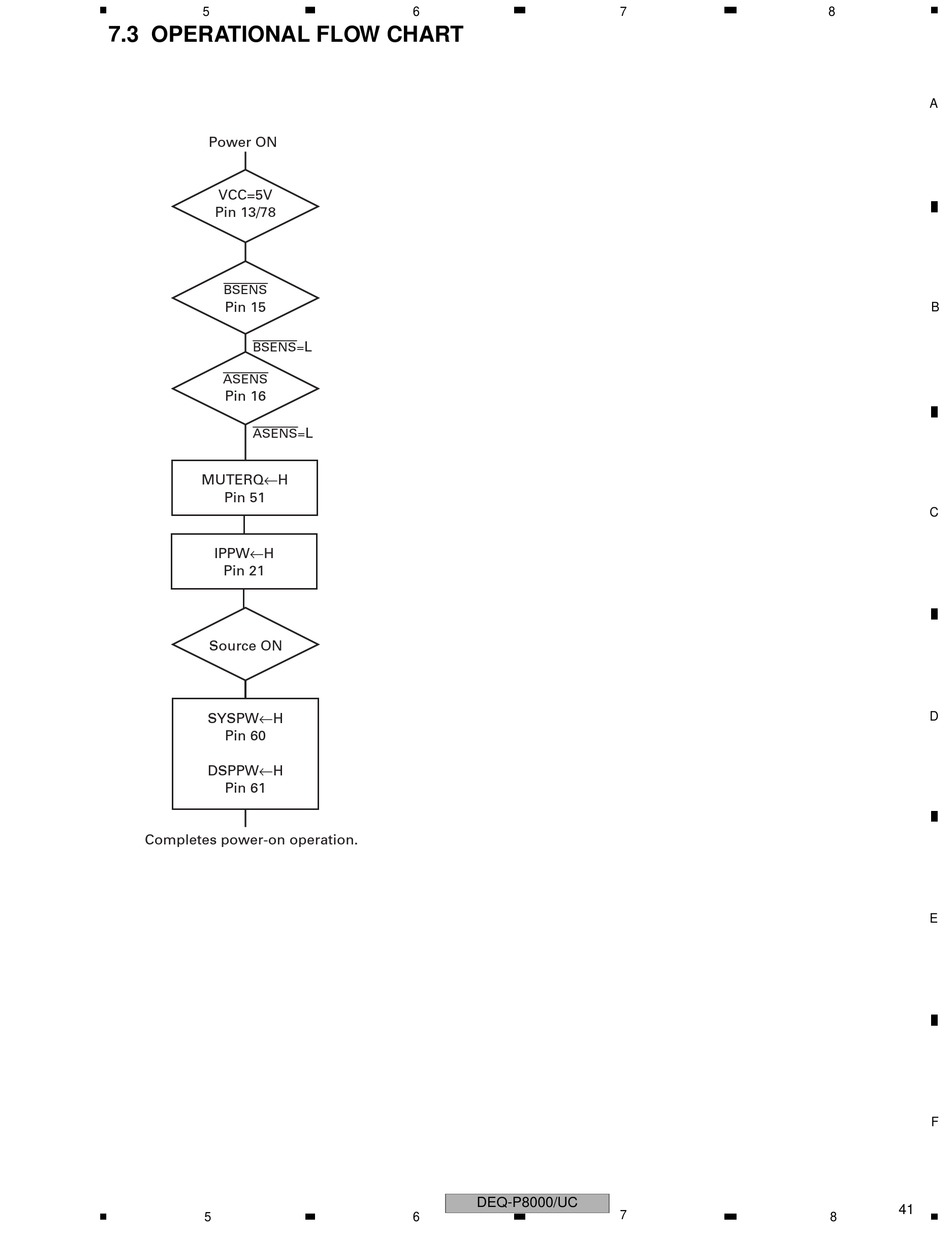

7.3 OPERATIONAL FLOW CHART

Power ON
VCC=5V
Pin 13/78
bsens
Pin 15
bsens=L
asens
Pin 16
asens=L
MUTERQ←H
Pin 51
IPPW←H
Pin 21
Source ON
SYSPW←H
Pin 60
DSPPW←H
Pin 61
Completes power-on operation.
