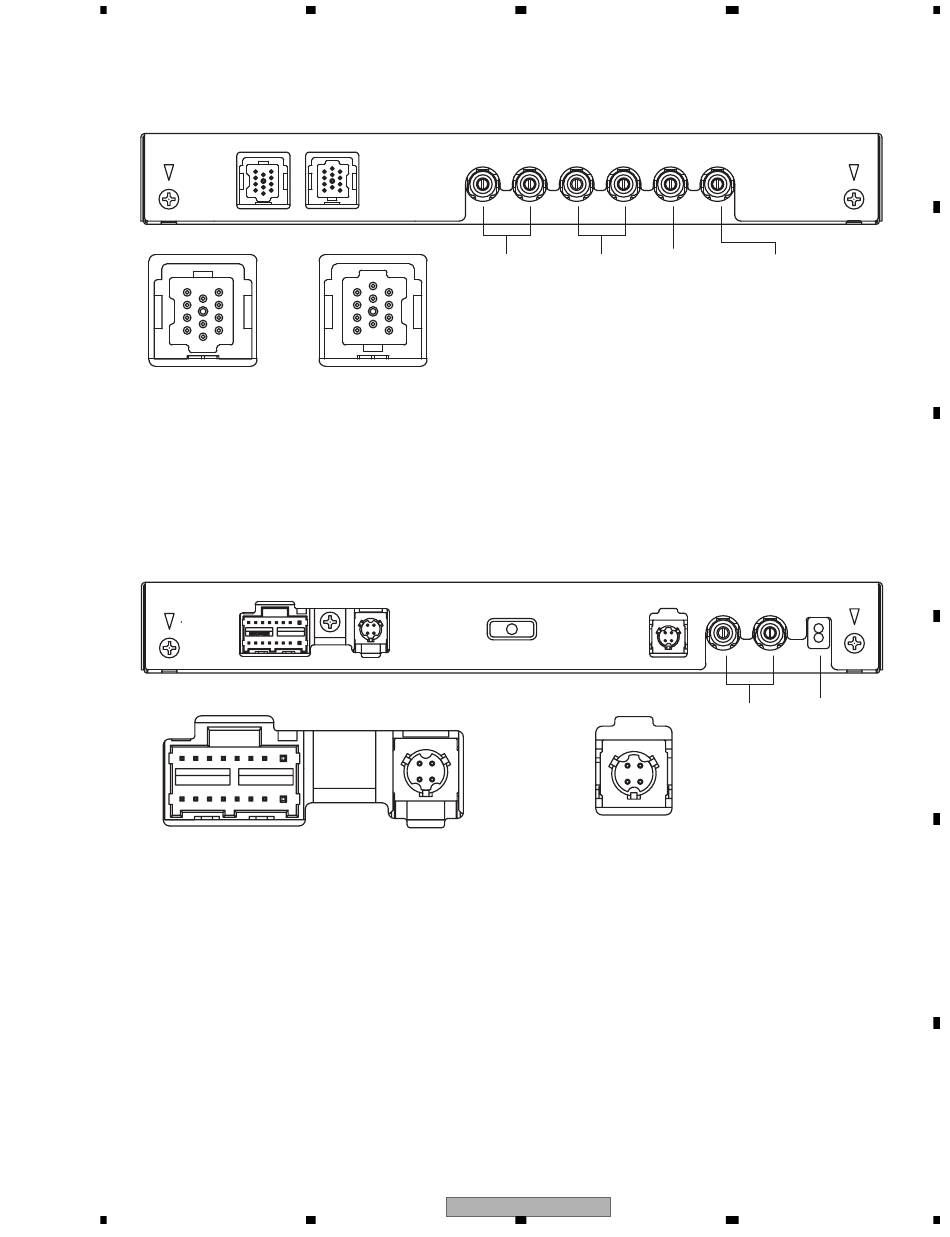

7.1.2 CONNECTOR FUNCTION DESCRIPTION
IP-BUS OUTPUT
11
4
7
10
3
9
2
6
8
1
5
1. BUS+
7. BUSL+
2. GND
8. ASENB
3. GND
9. BUSR+
4. NC
10. BUSR-
5. BUS-
11. BUSL-
6. GND
POWER SUPPLY
1 3 5 7 9 11 13
15
2 4 6 8 10 12 14
16
1. RL-
9. CENTER+
2. FL+
10. NC
3. RL+
11. CENTER-
4. FL-
12. B-REMOTE
5. RR-
13. GND
6. FR+
14. GND
7. RR+
15. B.UP
8. FR-
16. GND
5
6
IP-BUS INPUT
FRONT
OUTPUT
5
1
8
6
2
9
3
10
7
4
11
1. BUS+
7. BUSL+
2. GND
8. ASENB
3. GND
9. BUSR+
4. NC
10. BUSR-
5. BUS-
11. BUSL-
6. GND
OPTICAL INPUT 2
2
4
1
3
1. OPT5V
2. GND
3. OPTIN
4. GND
DEQ-P8000/UC
6
7
REAR
SUBWOOFER
CENTER
OUTPUT
OUTPUT
OUTPUT
OPTICAL INPUT 1
MAIN
INPUT
3
1
4
2
1. OPT5V
2. GND
3. OPTIN
4. GND
7
8
A
B
C
AUTO EQ
D
E
F
33
8
