Summary of Contents for AVT MAGIC THipPro

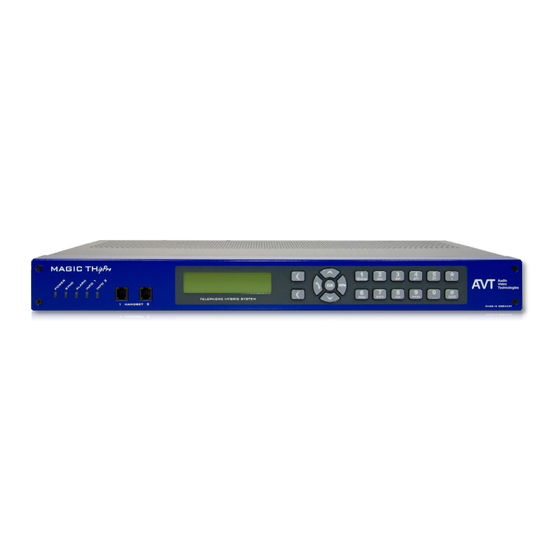

- Page 1 MAGIC THipPro MAGIC THipPro VoIP MAGIC THipPro Pure VoIP MAGIC THipPro Lite MAGIC THipPro Lite Pure MAGIC THipPro Intercom MAGIC THipPro VMS Hardware Manual...
- Page 2 90411 Nürnberg GERMANY Phone +49-911-5271-0 Telefax +49-911-5271-100 © AVT Audio Video Technologies GmbH All Rights reserved. Reproduction in whole or in parts is prohibited without the written consent of AVT GmbH. Subject to changes. Version: 2.2 Release date: July 2022...
-
Page 3: Table Of Contents
2.5.1 VoIP operating mode ................. 13 2.5.2 POTS operating mode ................ 14 Interfaces ......................15 MAGIC THipPro ................... 15 Control and data interfaces ................ 16 3.2.1 Ethernet interfaces LAN 1 / LAN 2 ............. 16 3.2.2 POTS Line Interfaces ................16 3.2.3... - Page 4 Service Information..................27 Software and firmware updates ..............27 Support ....................... 27 Repairs ......................27 WEEE (Directive on Waste Electrical and Electronic Equipment) ....28 DECLARATION OF CONFORMITY ………………………………………………………………… 29...
-
Page 5: Introduction
All other units are based on the hardware of the MAGIC THipPro hardware but have a reduced range of functions. MAGIC THipPro Lite is available with 4 or 8 caller lines and has four digital audio lines (two AES/EBU interfaces) and two analogue audio inputs and outputs. -
Page 6: Conventions
Conventions In this manual the following conventions are used as text markers: The Tip symbol marks information which facilitates the operation of the system in its daily use. The Note symbol marks general notes to observe. The Attention symbol marks very important advice that is absolutely to observe. In case of non-observance malfunctions and even system errors are possible. -
Page 7: General Safety Requirements
General safety requirements To keep the technically unavoidable residual risk to a minimum, it is absolutely necessary to observe the following rules: Transport, storage and operation of the unit must be under the • permissible conditions only. • Installation, configuration and disassembly must be carried out only by trained personal based on the respective manual. -
Page 8: Construction
The functions of the system are implemented in a 19” x 1U housing, the dimensions are 434 mm x 44,5 mm x 252 mm. MAGIC THipPro can be used as a table-top device or it can be mounted in 19" racks. The 19” mounting brackets are included in delivery. -
Page 9: Functionality
All other units are based on the hardware of the MAGIC THipPro hardware but have a reduced range of functions. MAGIC THipPro Lite is available with 4 or 8 caller lines and has four digital audio lines (two AES/EBU interfaces) and two analogue audio inputs and outputs. -
Page 10: Putting The System Into Operation
With its dimensions of (width x height x depth) 434 mm x 44.5 mm (1U) x 270 mm the MAGIC THipPro system can either be used as desktop device or mounted into a 19-inch rack. 19“mounting brackets are included in delivery. When mounting the unit please keep in mind that the bending radius of the connected cables is always greater than the minimum allowed value. -
Page 11: Connection To The Mains Voltage
Connection to the mains voltage Attention! High touch current possible! Before connecting the power supply, MAGIC THipPro must be earthed. For this purpose, the earthing cable must have a conductor cross-section of at least 2.5mm² if it is mechanically protected, or otherwise 4.0mm². -
Page 12: Operational Elements At The Front Side
Operational elements at the front side The system has an illuminated graphical display with a resolution of 160 x 32 pixel and 19 operating buttons. On the right next to the display there are two softkeys whose current functions are indicated on the display. -
Page 13: Wiring
2.5.1 VoIP operating mode MAGIC THipPro can operate as a hybrid with eight or 16 lines, MAGIC THipPro Lite with four or eight. One of the LAN interfaces can be used. Two module slots are available; these can be optionally equipped with the Dante or Ravenna module and/or two further LAN interfaces (Dual LAN Upgrade). -
Page 14: Pots Operating Mode
MAGIC THipPro can be equipped with two fourfold POTS modules and can be used as an eight-line POTS Hybrid. MAGIC THipPro Lite can be equipped with one or two fourfold POTS modules and used accordingly as a four- or eight-line POTS hybrid. -
Page 15: Interfaces
MAGIC THipPro front view MAGIC THipPro Intercom and MAGIC THipPro VMS front view MAGIC THipPro rear view with optional Dual LAN Upgrade, Dante® module and redundant power supply upgrade MAGIC THipPro Pure rear view with optional Dante® module and redundant... -
Page 16: Control And Data Interfaces
3.2.2 POTS Line Interfaces MAGIC THipPro can be equipped with two pieces of 4 x POTS modules and therefore provides 8 x POTS interfaces. MAGIC THipPro Lite can be equipped with one or two POTS modules. The POTS interfaces are available on RJ-11 sockets. -
Page 17: Isdn Line Interfaces
3.2.3 ISDN Line interfaces Existing MAGIC THipPro units may have been equipped with a maximum of 2 x 4 ISDN BRI modules. ISDN modules are no longer available for newly purchased systems. The already existing ISDN BRI interfaces are available on RJ-45 sockets. -
Page 18: Ttl/Relay Interface
3.2.4 TTL/Relay interface The TTL/relay interface is realised as a 25-pin socket. It provides eight TTL inputs/outputs as well as eight relay contacts. Pin assignment: TTL/RELAY INTERFACE Socket: SUB-D 25-pin Signal Electrical characteristics TTL 1 input/output TTL interface: TTL 2 input/output Capacity of the TTL outputs: Maximum voltage: 3.3V... -
Page 19: Audio Interfaces
Audio interfaces 3.3.1 Handset/Headset Interfaces Two Handset/Headset interfaces are available at the front side. Pin assignment: HANDSET INTERFACE Socket: RJ-10 Signal Electrical characteristics Typical characteristics: HANDSET IN a/+5V phantom power Microphone: HANDSET OUT b (GND) Impedance: ~ 2 kOhm Sensitivity: ~ -60 dB @ 1-kHz HANDSET OUT a Telephone receiver: Impedance: ~150 Ohm... -
Page 20: Digital Aes/Ebu Audio Interfaces
3.3.3 Digital AES/EBU Audio Interfaces MAGIC THipPro provides eight digital Audio inputs and outputs available on four physical AES/EBU interfaces. MAGIC THipPro Lite has four digital audio lines (two AES/EBU interfaces) and can be optionally upgraded to eight digital audio lines (four AES/EBU interfaces). -
Page 21: Dante Interface Card
3.3.4 Dante Interface Card The Ethernet interfaces P and S on the optional Dante® module are used to connect the device to a Dante® network. 32 audio inputs/outputs can be connected over IP to Dante or AES67 compatible audio equipment. Pin assignment: Ethernet Interfaces Dante®... -
Page 22: Power Supply
100 – 230 V AC, 50 – 60 Hz, auto adjusting, max. 30 W 3.4.2 Optional DC power supply socket Only use the +5 V DC power supply provided by AVT. Pin assignment: 5 V power supply socket Socket: KYCON KPJ-S4... -
Page 23: Technical Data
TECHNICAL DATA Coding algorithms: • G.711 3,1-kHz (Telephone algorithm) G.722 (with HD Voice Upgrade in VoIP or ISDN mode) • Line interfaces: • 2 x Ethernet 10/100 Mbit/s Optional: 4/8 x POTS • Optional: 8/16 x ISDN (no longer available) •... - Page 24 Audio interfaces: Analogue Audio 1/2: • Electronically balanced input XLR female Electronically balanced input XLR male Impedance Input: > 25 kΩ Output: < 50 Ω Frequency response 50 Hz … 3400 Hz • Digital Audio AES/EBU: Format IEC-60958 AES/EBU Professional Electronically balanced input 15-pin DUB-D female Electronically balanced output...
- Page 25 Signal processing: • AGC per channel, configurable Level adjustment control during connection: -16 dB ... +16 dB • Echo Canceller per channel Expander per channel, configurable • Display: • Graphical, resolution 160 x 32 pixels Illuminated (can be switched off) •...
-
Page 26: General
GENERAL Order numbers MAGIC THipPro 8 VoIP 802050 MAGIC THipPro 16 VoIP 802053 MAGIC THipPro Pure 8 VoIP 802097 MAGIC THipPro Pure 16 VoIP 802098 MAGIC THipPro Lite 802095 MAGIC THipPro Lite Pure 802096 MAGIC THipPro 8 VoIP Intercom 802080... - Page 27 If your unit is defective, please contact us before sending in the device. To send in the system please fill in the included Service Request and send the unit to the following address: AVT Audio Video Technologies GmbH - Repairs - Nordostpark 91 90411 NÜRNBERG...
- Page 28 The device contains valuable raw materials that can be recycled. For proper recycling, send the device to us: AVT Audio Video Technologies GmbH - Recycling - Nordostpark 91 90411 NÜRNBERG GERMANY WEEE Reg.
- Page 29 Produktname(n): MAGIC THipPro 8 VoIP Telephone Hybrid 802050 Product name(s): MAGIC THipPro 16 VoIP Telephone Hybrid 802053 MAGIC THipPro Pure 8 VoIP Telephone Hybrid 802097 MAGIC THipPro Pure 16 VoIP Telephone Hybrid 802098 MAGIC THipPro Lite Telephone Hybrid 802095 MAGIC THipPro Lite Pure Telephone Hybrid...
