AVT MAGIC TH1 potsGo Configuration Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

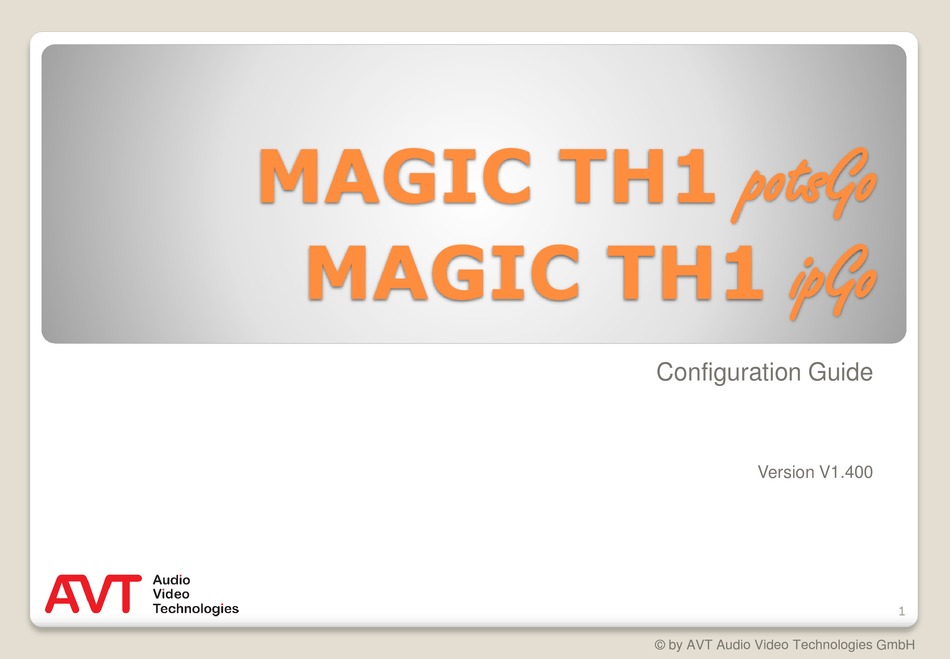

MAGIC TH1
potsGo
MAGIC TH1
ipGo
Configuration Guide
Version V1.400
1
© by AVT Audio Video Technologies GmbH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGIC TH1 potsGo and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AVT MAGIC TH1 potsGo

Summary of Contents for AVT MAGIC TH1 potsGo

  • Page 1 MAGIC TH1 potsGo MAGIC TH1 ipGo Configuration Guide Version V1.400 © by AVT Audio Video Technologies GmbH...

  • Page 2: Basic Configuration

    Connect your MAGIC TH1 system via the LAN  interface to your IP network  The easiest way to obtain a valid IP address is to activate DHCP in the system via the front panel ▪ Press the softkey MENU and select LAN INTERFACE →...

  • Page 3: Main Window

    Opens Configuration Menu Actual connection status of MAGIC TH1 Main Window...

  • Page 4: Operating Elements

    ❶ Menu ❷ Own SIP number ❸ Connection & system status ❶ ❷ ❸ ❹ ❺ ❻ ❹ Caller information ❼ ❾ ❺ Dial keypad ❿ ❽ ⓫ ❻ Telephone book ❼ Delete caller information ❽ Save caller information ❾ Phone number of caller ❿...
  • Page 5 ❶ System Name PRETALK – Telephone in use ❷ PRETALK – Audio XLR in use ❸ ❶ ❹ HOLD ❷ ❹ ❺ ❻ ❼ ❺ ON AIR ❸ ❾ ❽ ⓫ ❻ Disconnect line ❿ ⓬ ❼ Transfer call ❽ AGC Automatic Gain Control on/off ❾...
  • Page 6 Settings General Line Interface Audio Operation Signal Processing LAN Interface VLAN GPIO (TTL/Relay)

  • Page 7: General Settings

    Display Language  ▪ Select English or German Front Keypad Key Tone  ▪ If Front Keypad Key Tone is selected a tone is generated after pressing a button on the key panel Backlight  ▪ One of the following modes can be selected: ...

  • Page 8: Line Interface Settings

    → Line Interface the line Under  interface settings can be configured Select under Line Mode which interface  you want to use (the availability depends on your system and enabled options) ▪ POTS ▪ VoIP Line Interface Settings...
  • Page 9 Your Country  POTS mode ▪ If you use landlines: Country of your location selected ▪ If you use a PBX: Try first your country or alternatively the country of origin of the PBX  Note that this setting is essential for correct operation of the built-in digital echo canceller.
  • Page 10 Wait for CLIP before call in signalling  ▪ If selected, an incoming call is not displayed until the caller's phone number has been recognized (CLIP function). If no phone number is signaled, the call is displayed after a short time. Drop when busy tone detected ...
  • Page 11 The values for BUSY/DROP Tone Duration and  BUSY/DROP Pause Duration can be set manually, but we strongly recommend using the built-in measurement function. Measure BUSY/DROP tone  ▪ Enter your own phone number and press Start ▪ The values for BUSY/DROP Tone Duration and BUSY/DROP Pause Duration are automatically adjusted ▪...

  • Page 12: Voip Mode

    SIP Server  VoIP mode ▪ Enter the name or IP address of the SIP Server selected  A name requires a valid DNS entry under LAN settings SIP Transmission Protocol  ▪ Select UDP or TCP/IP according to the requirements of the VoIP provider DTMF Tx Type ...
  • Page 13 Audio UDP Port  ▪ Change only if necessary Display Name  ▪ The Display Name is only displayed at the receiving side, subject to the condition that the function is supported by the telephone and the SIP Server STUN ...
  • Page 14 QoS Voice and QoS SIP  ▪ If your network offers Quality of Service (QoS), please enter the correct values under QoS Voice (default: 184) and QoS SIP (default: 104)  We expect here the so called Diff Serv values Outgoing Line Prefix ...

  • Page 15: Audio Interfaces

    Pretalk Interface  ▪ Select here the desired Pretalk Interface:  Not used  Telephone  Pretalk (XLR)  Telephone + Pretalk (XLR)  Telephone with control ▪ If selected the telephone can operate the hybrid via DTMF tones, e.g. switch to ON AIR, activate AGC etc. Hold Signal Source ...
  • Page 16  Monitoring Out (XLR) ▪ The monitoring output is only available if no Pretalk (XLR) is configured for the Pretalk Interface ▪ You can choose between the following settings  not used  Caller  Caller + Presenter Level In ...

  • Page 17: Operation

    Enable System Ringing Tone  ▪ If activated, the system internal buzzer signals incoming calls  Front Keypad Control of Line State Switching the line status (e.g. Pretalk, Hold, On Air etc.) via the front keypad can be configured in three different ways: ▪...
  • Page 18 Enable Voice Disguise  ▪ If activated, Voice Disguise is enabled Voice Disguise Pitch  ▪ As pitch can be selected  Up for a shift to higher frequencies  Down for a shift to lower frequencies Voice Disguise Ratio ...

  • Page 19: Signal Processing

    Automatic Gain Control  If the integrated Automatic Gain Control is switched On, the function can be configured via three parameters ▪ The Threshold value determines the level when the AGC should start work  Range: -45 ..-35 dBFS ...
  • Page 20 Echo Canceller  ▪ The integrated Echo Canceller can be switched On or Off  Especially callers still using POTS lines can cause a strong echo. Therefore we always recommend to activate the Echo Canceller.  The maximum echo tail time is approx. 120 msec. In this time window the echo canceller can reduce the echo.

  • Page 21: Lan Interface

     For easy setup you can use DHCP to obtain all IP parameters for the Primary IP Address automatically ▪ The assigned IP address is visible by pressing the DROP key on the front panel of the system Alternatively you can assign all parameters manually ...

  • Page 22: Typical Application

    Internet Public IP Address Router LAN2 with integrated SIP Server LAN1 Control Webbrowser Primary IP Address e.g. 192.168.1.10 e.g. 192.168.1.20 Typical Application...

  • Page 23: Vlan Configuration

    As already mentioned, we recommend to separate the  VoIP network from the Control network for VoIP applications in general  An additional possibility is to use VLANs if your switch/router supports that  The configuration is done under VLAN ...
  • Page 24 Internet Public IP Address Modem/Router VLAN ID:2 VLAN ID:1 Managed Switch VLAN ID:2 VLAN ID:1 One LAN cable Primary IP Address Secondary IP Address e.g. 172.16.1.10 e.g. 192.168.1.10 Control via e.g. VLAN ID:2 e.g. VLAN ID:1 secondary network VLAN ID:1 e.g.
  • Page 25 MAGIC TH1 Go provides the following GPIO  contacts ▪ 4 x programable TTL in-/outputs ▪ 2 x relay outputs TTL pins can be configured as Input or Output  ▪ Various functions are offered  Inputs ◦ An input is high active by default. Set an input to GND (Pin 5) to trigger a switching operation ...
  • Page 26 Administration Registration Firmware Download System Panel Set Factory Settings Restart Device About...
  • Page 27 Via Menu → Registration you will find  the available Software Options for the system ▪ The marked Options are already enabled in your system You will need the Factory Number of the  device if you want to purchase additional software options later You will receive a licence with password, ...

  • Page 28: Firmware Download

    New firmware can be downloaded from  under Downloads → Website Software The firmware file TH1GO.SSW must be  downloaded to the MAGIC TH1Go via the Firmware Download menu ▪ Press Choose File to select the downloaded firmware file ▪ If the firmware file is valid, you see the size, the release date as well as the confirmation Valid SSW file...

  • Page 29: System Panel

    Via Menu → System Panel a command  window can be displayed, which offers special functions for e.g. an extended troubleshooting The System Panel is displayed below the main  window ▪ Press to clear the window ▪ Press to close the command window By entering the command help all commands ...
  • Page 30 Using Menu → Set Factory Settings,  the system can be reset to the factory settings ▪ For safety reasons, the action must be confirmed with OK ▪ To be able to access the device via the web browser again, you must first reset the old IP address via the front keyboard (see Basic Configuration)

  • Page 31: About Panel

    The About Panel displays the  following information ▪ Firmware version ▪ AVT contact address ▪ Support details  Phone number  Email address ▪ Website About Panel...

  • Page 32: Maintenance

    Maintenance System Monitor...

  • Page 33: System Monitor

    The system monitor displays all possible System and  Application Alarms ▪ Alarm Counter To open the System Monitor, double-click the icon in the upper right corner of the PC software or select Menu → System Monitor Alarm indication  ▪...
