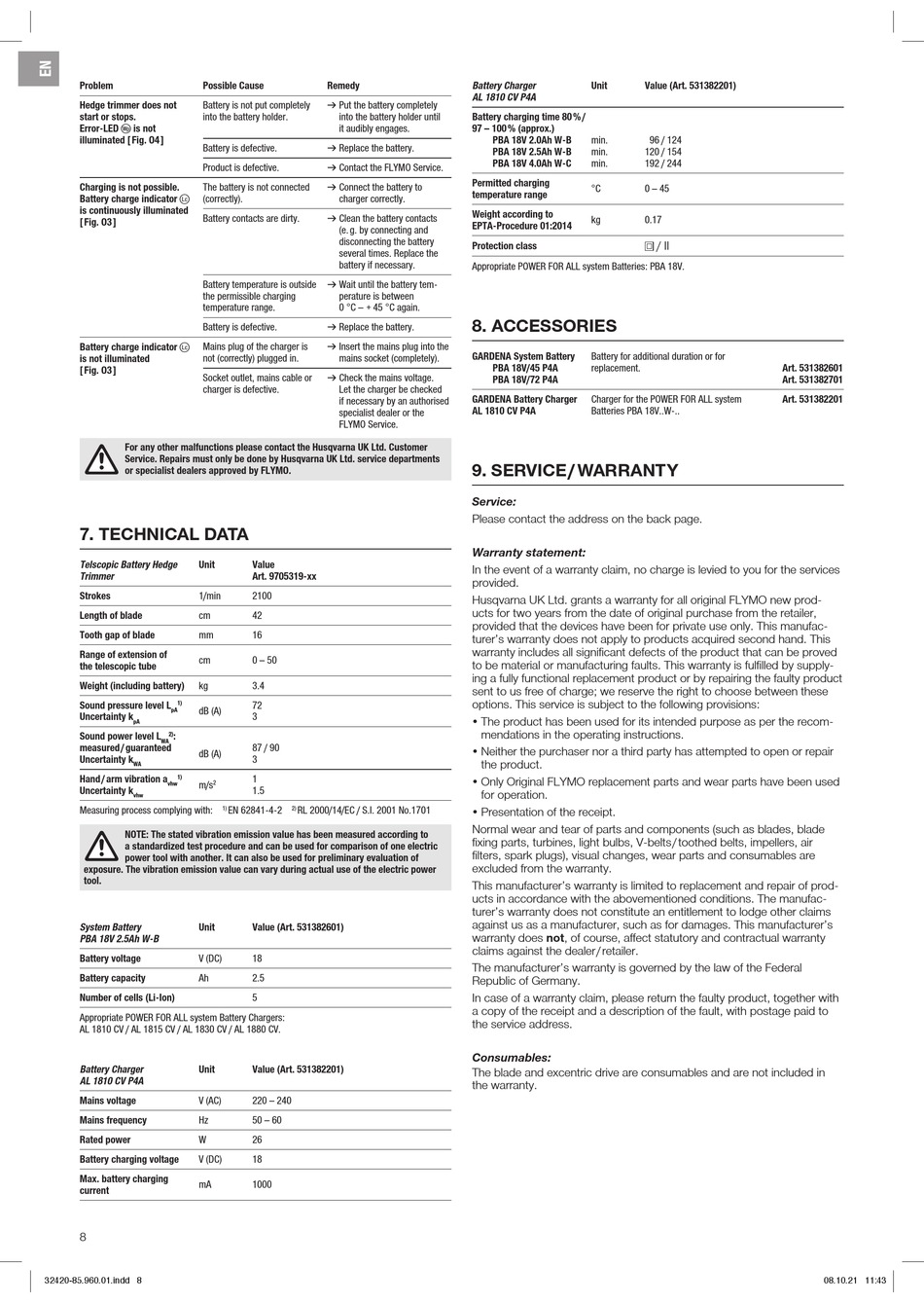

Service / Warranty; Technical Data - Flymo UltraCut Reach 420 Operator's Manual

Problem Possible Cause
Hedge trimmer does not Battery is not put completely
start or stops. into the battery holder.
(Wp) is not
Error-LED
illuminated [ Fig. O4 ]
Battery is defective.
Product is defective.
Charging is not possible. The battery is not connected
(Lc)
Battery charge indicator (correctly).
is continuously illuminated
Battery contacts are dirty.
[ Fig. O3 ]
Battery temperature is outside
the permissible charging
temperature range.
Battery is defective.
(Lc)
Battery charge indicator Mains plug of the charger is
is not illuminated not (correctly) plugged in.
[ Fig. O3 ]
Socket outlet, mains cable or
charger is defective.
For any other malfunctions please contact the Husqvarna UK Ltd. Customer
Service. Repairs must only be done by Husqvarna UK Ltd. service departments
or specialist dealers approved by FLYMO.

7. TECHNICAL DATA

Telscopic Battery Hedge Unit
Trimmer
Strokes 1/min
Length of blade cm
Tooth gap of blade mm
Range of extension of
cm
the telescopic tube
Weight (including battery) kg
Sound pressure level L
1)
dB (A)
pA
Uncertainty k
pA
Sound power level L :
2)
WA
measured / guaranteed
dB (A)
Uncertainty k
WA
Hand / arm vibration a
1)
m/s
vhw 2
Uncertainty k
vhw
Measuring process complying with:
NOTE: The stated vibration emission value has been measured according to
a standardized test procedure and can be used for comparison of one electric
power tool with another. It can also be used for preliminary evaluation of
exposure. The vibration emission value can vary during actual use of the electric power
tool.
System Battery
Unit
PBA 18V 2.5Ah W-B
Battery voltage V (DC)
Battery capacity Ah
Number of cells (Li-Ion)
Appropriate POWER FOR ALL system Battery Chargers:
AL 1810 CV / AL 1815 CV / AL 1830 CV / AL 1880 CV.
Battery Charger Unit
AL 1810 CV P4A
Mains voltage V (AC)
Mains frequency Hz
Rated power W
Battery charging voltage V (DC)
Max. battery charging
mA
current
8
32420-85.960.01.indd 8 32420-85.960.01.indd 8
Remedy
v Put the battery completely
into the battery holder until
it audibly engages.
v Replace the battery.
v Contact the FLYMO Service.
v Connect the battery to
charger correctly.
v Clean the battery contacts
(e. g. by connecting and
disconnecting the battery
several times. Replace the
battery if necessary.
v Wait until the battery tem­
perature is between
0 °C – + 45 °C again.
v Replace the battery.
v Insert the mains plug into the
mains socket (completely).
v Check the mains voltage.
Let the charger be checked
if necessary by an authorised
specialist dealer or the
FLYMO Service.
Value
Art. 9705319-xx
2100
42
16
0 – 50
3.4
72
3
87 / 90
3
1
1.5
EN 62841­4­2 RL 2000/14/EC / S.I. 2001 No.1701
1) 2)
Value (Art. 531382601)
18
2.5
5
Value (Art. 531382201)
220 – 240
50 – 60
26
18
1000
Battery Charger
Unit Value (Art. 531382201)
AL 1810 CV P4A
Battery charging time 80 % /
97 – 100 % (approx.)
PBA 18V 2.0Ah W-B
min.
PBA 18V 2.5Ah W-B
min. 120 / 154
PBA 18V 4.0Ah W-C
min. 192 / 244
Permitted charging
°C 0 – 45
temperature range
Weight according to
kg 0.17
EPTA-Procedure 01:2014
Protection class
Appropriate POWER FOR ALL system Batteries: PBA 18V.
8. ACCESSORIES
GARDENA System Battery Battery for additional duration or for
PBA 18V/45 P4A replacement.
PBA 18V/72 P4A
GARDENA Battery Charger Charger for the POWER FOR ALL system
AL 1810 CV P4A Batteries PBA 18V..W­..

9. SERVICE / WARRANTY

Service:
Please contact the address on the back page.
Warranty statement:
In the event of a warranty claim, no charge is levied to you for the services
provided.
Husqvarna UK Ltd. grants a warranty for all original FLYMO new prod-
ucts for two years from the date of original purchase from the retailer,
provided that the devices have been for private use only. This manufac-
turer's warranty does not apply to products acquired second hand. This
warranty includes all significant defects of the product that can be proved
to be material or manufacturing faults. This war ranty is fulfilled by supply-
ing a fully functional replacement product or by repairing the faulty product
sent to us free of charge; we reserve the right to choose between these
options. This service is subject to the following provisions:
• The product has been used for its intended purpose as per the recom-
mendations in the operating instructions.
• Neither the purchaser nor a third party has attempted to open or repair
the product.
• Only Original FLYMO replacement parts and wear parts have been used
for operation.
• Presentation of the receipt.
Normal wear and tear of parts and components (such as blades, blade
fixing parts, turbines, light bulbs, V-belts / toothed belts, impellers, air
filters, spark plugs), visual changes, wear parts and consumables are
excluded from the warranty.
This manufacturer's warranty is limited to replacement and repair of prod-
ucts in accordance with the abovementioned conditions. The manufac-
turer's warranty does not constitute an entitlement to lodge other claims
against us as a manufacturer, such as for damages. This manufacturer's
warranty does not, of course, affect statutory and contractual warranty
claims against the dealer / retailer.
The manufacturer's warranty is governed by the law of the Federal
Republic of Germany.
In case of a warranty claim, please return the faulty product, together with
a copy of the receipt and a description of the fault, with postage paid to
the service address.
Consumables:
The blade and excentric drive are consumables and are not included in
the warranty.
96 / 124
