HOBO® Pendant® Temperature Data Logger (UA-001-xx) Manual

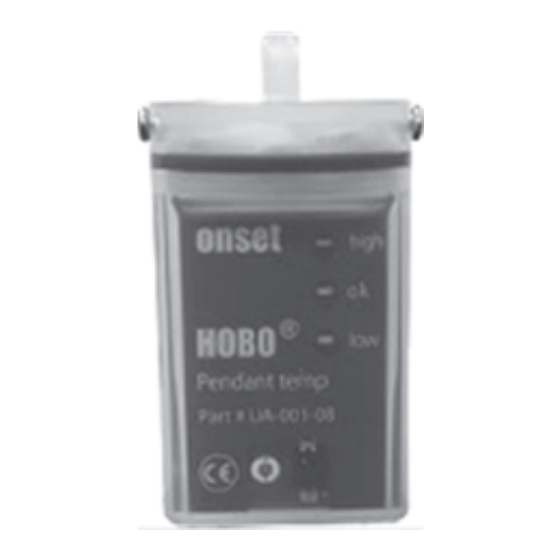

HOBO Pendant
Temperature Data Logger
Models: UA-001-08
UA-001-64

Required Items:

• HOBOware 2.x or later
• USB cable (included with
software)
• Pendant Optic USB Base
Station & Coupler (BASE-U-1)
• Optic USB Base Station
(BASE-U-4) or HOBO
Waterproof Shuttle
(U-DTW-1) & Coupler
(COUPLER2-A)
9531-J MAN-UA-001
The HOBO Pendant Temperature Data Logger is a waterproof, one-channel logger with 10-bit
resolution and can record up to approximately 6,500 (8K model) or 52,000 (64K model)
measurements or internal logger events. The logger uses a coupler and optical base station
with USB interface for launching and data readout by a computer.

Specifications

Measurement Range
-20° to 70°C (-4° to 158°F)
High and low alarms can be configured for total amount of contiguous or
non-contiguous time outside of user-defined limits between -20° and 70°C
(-4° to 158°F)
Accuracy
±0.53°C from 0° to 50°C (±0.95°F from 32° to 122°F), see Plot A
Resolution
0.14°C at 25°C (0.25°F at 77°F), see Plot A
Drift
Less than 0.1°C/year (0.2°F/year)
Airflow of 2 m/s (4.4 mph): 10 minutes, typical to 90%
Response Time
Water: 5 minutes, typical to 90%
Time Accuracy
±1 minute per month at 25°C (77°F), see Plot B
In water/ice: -20° to 50°C (-4° to 122°F)
Operating Range
In air: -20° to 70°C (-4° to 158°F)
Water Depth Rating
30 m from -20° to 20°C (100 ft from -4° to 68°F), see Plot C
NIST Traceable
Available for temperature only at additional charge; temperature range
Certification
-20° to 70°C (-4° to 158°F)
Battery Life
1 year typical use
UA-001-08: 8K bytes (approximately 6.5K sample and event readings)
Memory
UA-001-64: 64K bytes (approximately 52K sample and event readings)
Materials
Polypropylene case; stainless steel screws; Buna-N o-ring
Weight
15.0 g (5.3 oz)
Dimensions
58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches)
The CE Marking identifies this product as complying with all relevant
directives in the European Union (EU).
Plot A
40
30
20
10
0
-20
Waterproof
range
0
20
40
60
Temperature (°C)
Plot C
Plot B
