• Data Bits: read/write, the number of data bits transmitted in a single byte
(7 or 8);
• Parity Bits: read/write, transmission protection as a parity bit added before stop bit
(bits);
• Received Frames: read-only, the number of received frames;
• Transmitted Frames: read-only, the number of transmitted frames;
• Error Frames: read-only, the number of error frames.
WARNING! To save changes, please use the Submit button.

7.5 IP Configuration

This page allows to change parameters of the Ethernet port, Modbus TCP IP, M-Bus TCP
IP, and M-Bus UDP IP.
This page allows to set parameters such as:
• IP Address: read/write, the controller's Ethernet interface IP address;
• Mask: read/write, the network mask;
• Gateway: read/write, the network default gateway;
• Http Port: read/write, the http port;
• Mac Address: read-only, the Ethernet interface MAC address;
• M-Bus TCP Port: read/write, the M-Bus TCP port number, default 6021;
• M-Bus UDP Port: read/write, the M-Bus UDP port umber, default 10002;
• Protocol Type: read-only, the DIP switch protocol selection;
• Modbus TCP Port: read/write, the Modbus TCP port number, default 502;
• Modbus Address: read-only, the Modbus device address set by rotary switches;
• Modbus TCP Connection Timeout: read/write, the timeout for TCP/IP messages;
• RS485 Timeout: read/write, the timeout for Modbus RTU/ASCII messages;
• Send Modbus Errors: read/write, enables or disables sending of Modbus error
messages.
WARNING! To save changes, please use the Submit button.

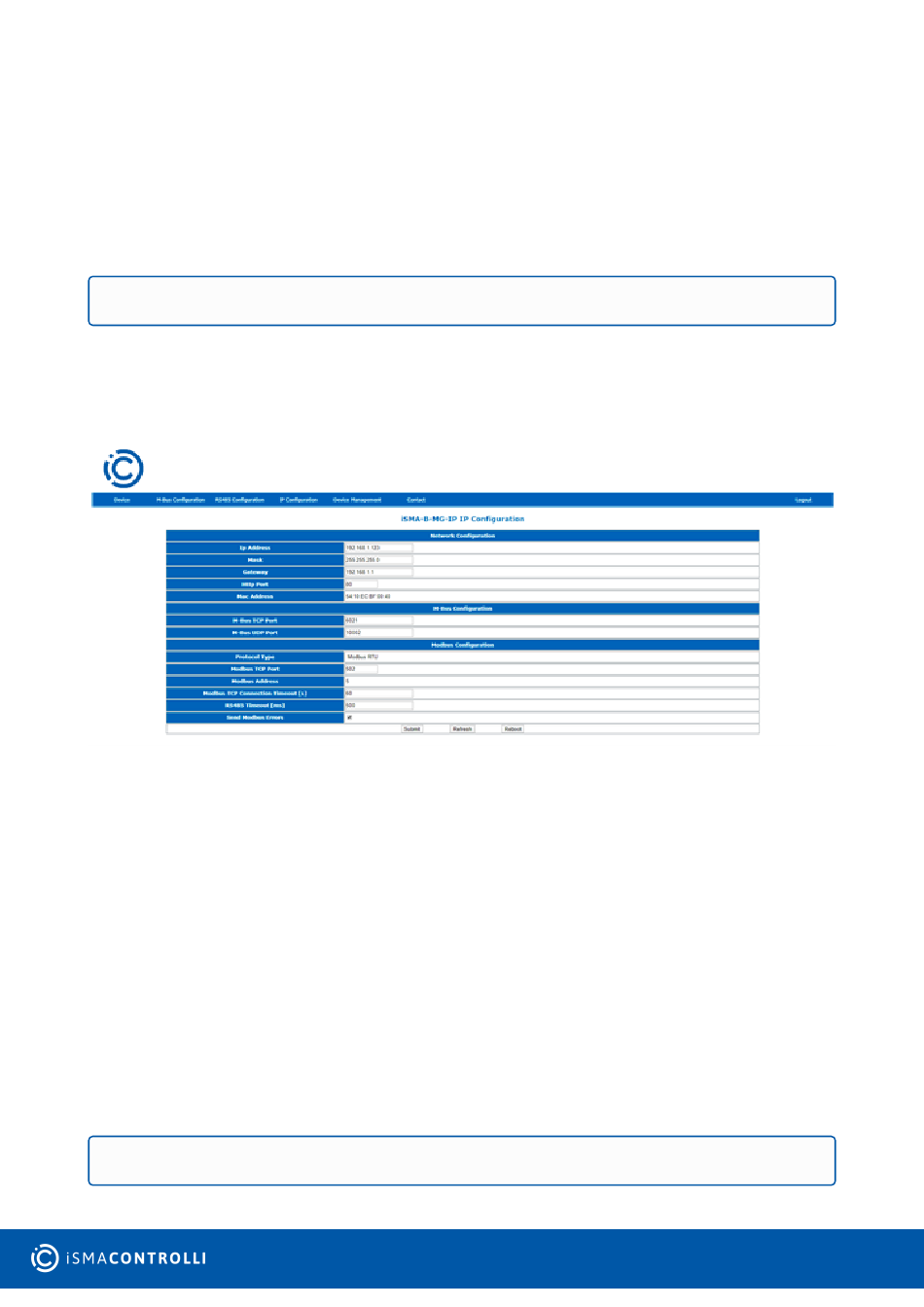

Figure 20. IP configuration page
