4.7 Front Panel

4.7.1 LED Indicators

• The power LED (ON) is on (green) if the device is running properly.
• The communication M-BUS LED is on (green) for 20 ms after sending each message by
the M-Bus bus. If the device receives/sends a lot of messages, the LED can be lit
continuously.
• The communication COM1 LED is on (orange) for 20 ms after sending each message
by the RS485 port. If the device receives/sends a lot of messages, the LED can be lit
continuously.
• The communication ETH1 LED is on (orange) for 20 ms after sending each message by
the Ethernet. If the device receives/sends a lot of messages, the LED can be lit
continuously
• The ALM LED is ON (green) if an overload is detected on the M-Bus bus (current on the
M-Bus bus exceeds 130 mA).

4.8 Default Settings

Out-of-the-box device, as well as after restoring default values procedure, has the
following default registers values:
Register Name
BAUD RATE
STOP BITS
DATA BITS
PARITY BITS
RESPONSE DELAY
USERNAME
PASSWORD
IP ADDRESS
MASK

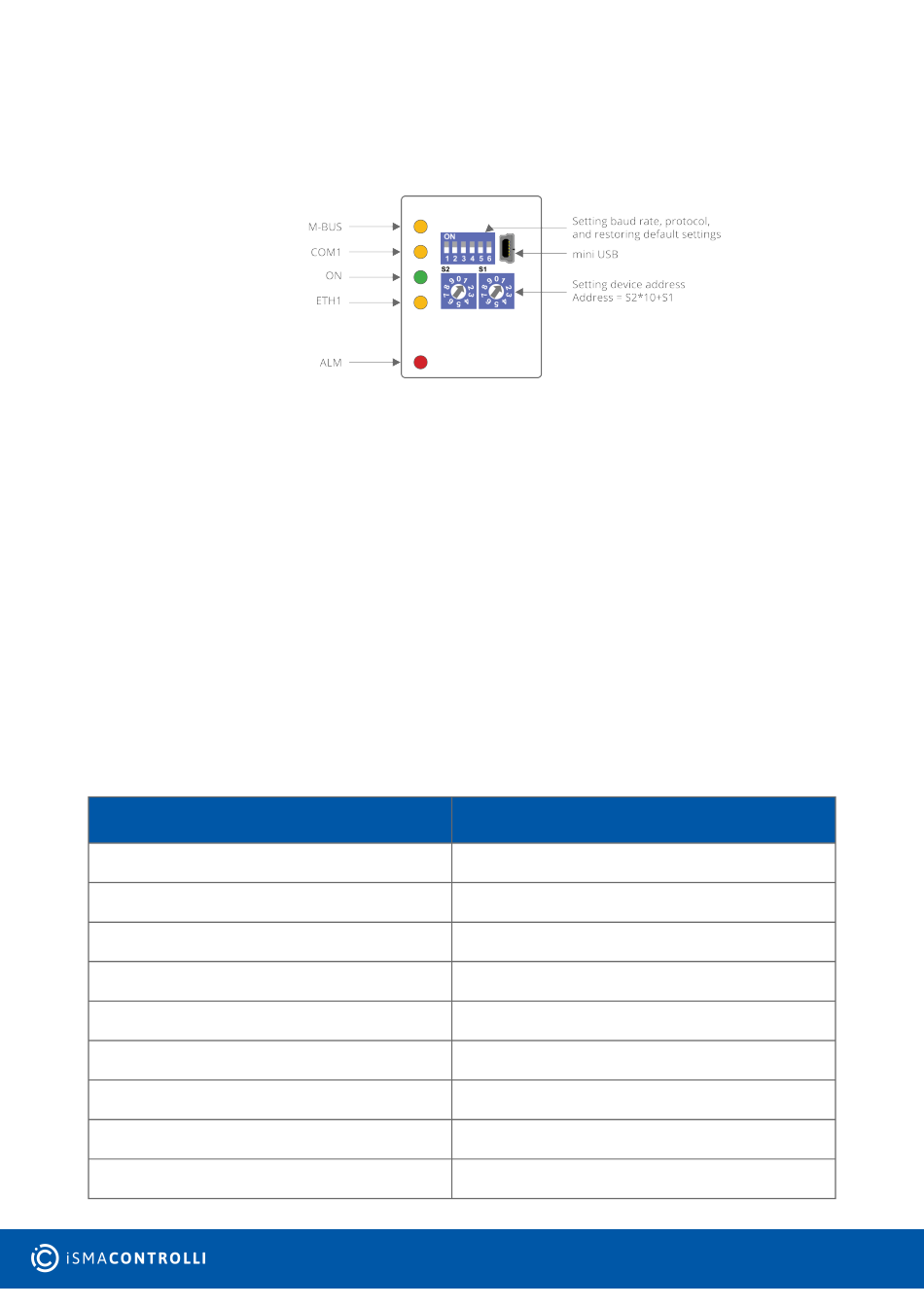

Figure 5. The iSMA-B-MG-IP LED indicators
www.ismacontrolli.com
Default Value
115200 (115200 bps)
1
8
0
0
platform
1000
192.168.1.123
255.255.255.0
