5.2 Modbus Settings

5.2.1 Setting Modbus Address

To determine the address on the Modbus network, the device has two rotary switches, S1
and S2, located on the top panel of the device.
It is possible to set the device address from 0 to 99.
The formula for setting the address is as follows:
Address = S2 • 10 + S1,
where S1 and S2 are values of switches.
For example:
Switches set as in figure above will set the device address to 11.

5.2.2 Setting Baud Rate

Transmission baud rate is determined by the S3 DIP switch (sections 1, 2 and 3) in
accordance with the following table:
1
Off (0) Off (0)
Off (0) Off (0)
Off (0) On (1)
Off (0) On (1)
On (1) Off (0)
On (1) Off (0)
On (1) On (1)
On (1) On (1)

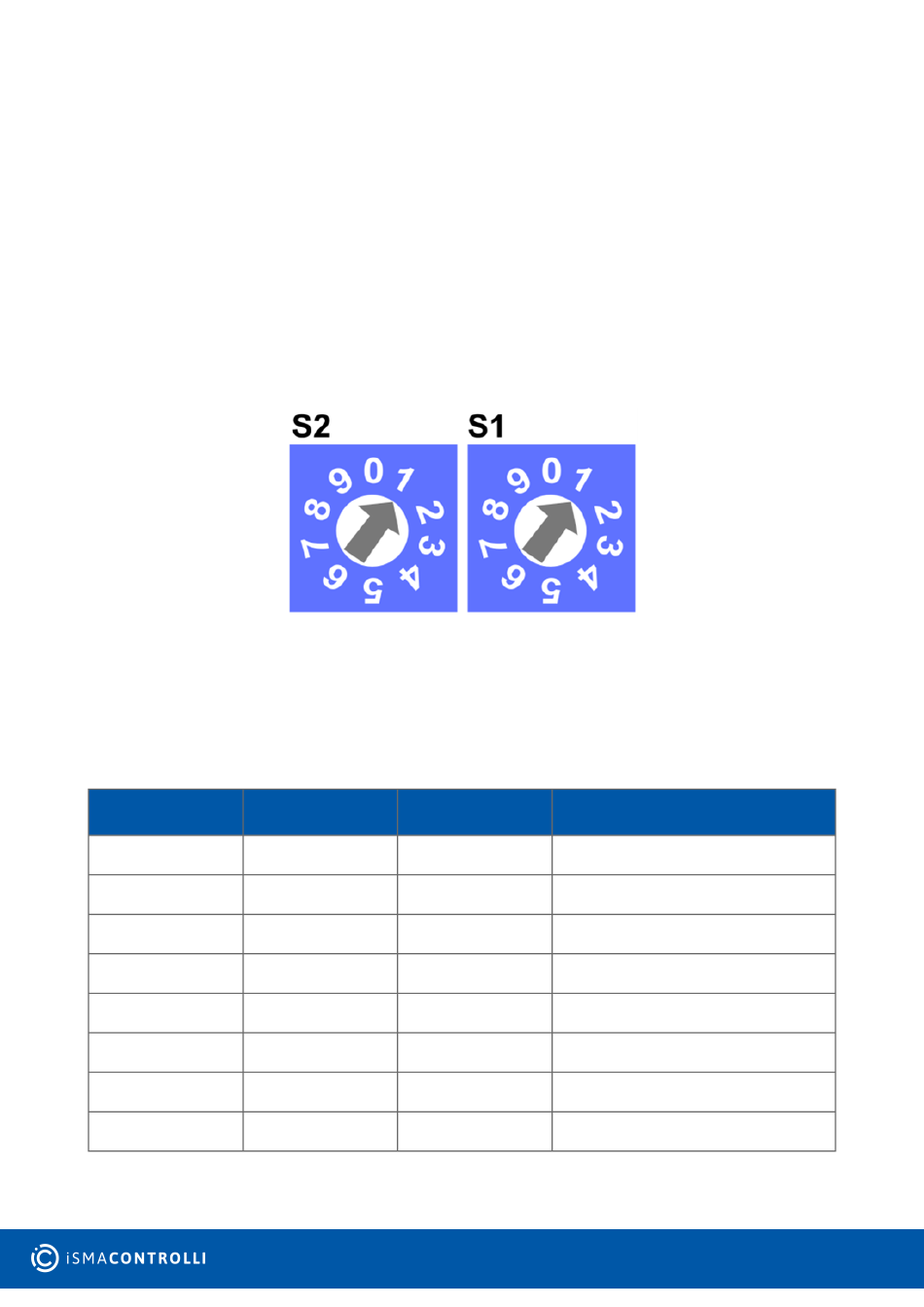

Figure 8. Setting Modbus address with rotary switches
2
Off (0)
On (1)
Off (0)
On (1)
Off (0)
On (1)
Off (0)
On (1)
Table 5. Setting baud rate
www.ismacontrolli.com
3
Defined by the user in the register
76800
4800
9600
19200
38400
57600
115200 (factory set)
