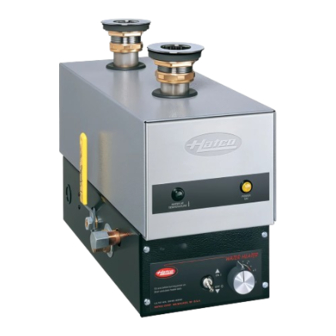

Hatco FR-3 Replacement Parts List Manual
Food rethermalizer/bain-marie heater fr series
Hide thumbs
Also See for FR-3:
- Installation and operation manual (16 pages) ,
- Specifications (2 pages) ,
- Installation and operating manual (36 pages)
Subscribe to Our Youtube Channel
Related Manuals for Hatco FR-3
Summary of Contents for Hatco FR-3
- Page 1 Food Rethermalizer/ Bain-Marie Heater FR Series FR-3 FR-4 REPLACEMENT PARTS LIST FR-6 FR-9...
- Page 2 HATCO FR SERIES Food Rethermalizer/Bain-Marie Heater CAUTION - Use of replacement parts other than those supplied by Hatco Corporation may result in damage to the unit or injury to personnel. Form No. FRRP - 0201 10, 11 Model Designation FR-X...
- Page 3 ITEM DESCRIPTION On/Off Power Switch Control, Thermostat 192°F (89°C) Knob, Thermostat Control Thermostat, High Limit 210°F (99°C) Control, Low Water Cut Off (Optional) Probe, Low Water (Optional) Indicator Light, Green Mounting Bolts, Elements Gasket, Element Ball Valve,Thread Fitting (Old Style) Ball Valve, Sweat Fitting (New Style)* Changed to New Style in 1989...
- Page 4 PARTS SPECIFIC TO MODEL FR-3 Single Phase ITEM DESCRIPTION 60 Hz Water Tank R01.04.001.00 Water Tank Thermo Disc High Limit For Units Built Before 1997 (Not Shown) 210°F (99°C) 02.16.009.00 Mounting Bracket For Thermo Disc High Limit (Not Shown) 04.20.019A.00 Cord &...
- Page 5 PARTS SPECIFIC TO MODEL FR-4 208V Single Phase ITEM DESCRIPTION 60 Hz Water Tank R01.04.001.00 Water Tank Thermo Disc High Limit For Units Built Before 1997 (Not Shown) 210°F (99°C) 02.16.009.00 Mounting Bracket For Thermo Disc High Limit (Not Shown) 04.20.019A.00 Cord &...
- Page 6 PARTS SPECIFIC TO MODEL FR-6 Single Phase ITEM DESCRIPTION Water Tank Water Tank R01.04.002.00 Thermo Disc High Limit For Units Built Before 1997 (Not Shown) 210°F (99°C) Mounting Bracket For Thermo Disc High Limit (Not Shown) Cord & Cap Cord Grip Heating Element, 300/3000 Watts R02.06.330.00...
- Page 7 PARTS SPECIFIC TO MODEL FR-9 208V Single Phase ITEM DESCRIPTION 60 Hz Water Tank Water Tank R01.04.002.00 Thermo Disc High Limit For Units Built Before 1997 (Not Shown) 210°F (99°C) Mounting Bracket For Thermo Disc High Limit (Not Shown) Cord & Cap Cord Grip Heating Element, 300/4500 Watts...
- Page 8 Comm. Parts & Service, Inc. Louisville 502-367-1788 LOUISIANA Chandlers Parts & Service Baton Rouge 225-272-6620 Parts & Service Fax (800) 690-2966 Form No. FRRP - 0201 HATCO AUTHORIZED PARTS DISTRIBUTORS LOUISIANA (Continued) Bana Comm. Parts, Inc. Shreveport 318-631-6550 MARYLAND Electric Motor Service Baltimore 410-467-8080 GCS Service, Inc.
