Food Rethermalizers/Hot Food Table Heater
Installation & Operating Manual
This manual contains important safety
information concerning the maintenance,
use and operation of this product. Failure
to follow the instructions contained in this
manual may result in serious injury. If you
are unable to understand the contents of this
manual, please bring it to the attention of your
supervisor. Do not operate this equipment
unless you have read and understood
the contents of this manual.
HYDRO-HEATER
FR2 Series
I&W #07.05.143.00
Este manual contiene importante información
sobre seguridad concerniente al mantenimiento,
uso y operación de este producto. Cualquier
falla en el seguimiento de las instrucciones
contenidas en este manual puede resultar
en un serio daño. Si usted no puede entender
el contenido de este manual por favor pregunte
a su supervisor. No opere este equipo al menos
que haya leído y comprendido el contenido
de este manual.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FR2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hatco FR2 Series

  • Page 1 Do not operate this equipment unless you have read and understood the contents of this manual. FR2 Series I&W #07.05.143.00 Este manual contiene importante información sobre seguridad concerniente al mantenimiento, uso y operación de este producto.
  • Page 2: Table Of Contents

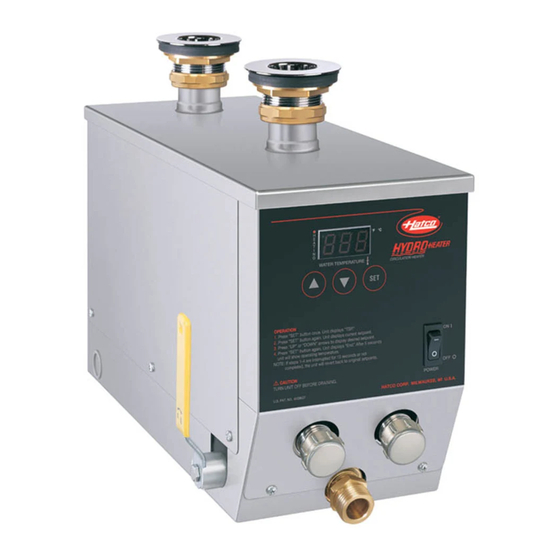

    Serial No. ________________________________ Voltage __________________________________ Date of Purchase __________________________ INTRODUCTION Hatco FR2 Hydro-Heater Food Rethermalizers/Hot Food Table Heaters are designed to supply temperature-controlled water to a holding vessel (sink or tank) located above the heater. Water flows by natural convection from the holding vessel...
  • Page 3: Important Safety Instructions

    Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject operators of the equipment to hazardous electrical voltage, resulting in electrical shock or burn.
  • Page 4: Model Descriptions

    FR2 MODELS The Hatco FR2 model heaters are designed to be used with a Bain-Marie or Food Rethermalizer to heat or hold foods at temperatures between 140ºF (60ºC) and 190ºF...
  • Page 5: Specifications

    Hatco does not supply the vessel that contains the water, nor the system which determines how food is placed and held in the vessel. The Hatco FR2 unit attaches to the bottom of the vessel and supplies hot water to the vessel.
  • Page 6: Sizing Information

    SIZING INFORMATION Hatco recommends the following guidelines be used to ensure proper operation and sanitation. For FR2 Series in a Bain-Marie or Steam Table Application • Minimum 750 watts (.75 kW) per square foot (0.8 watts per sq. cm) of vessel top.
  • Page 7: Installation

    PLUMBING An adhesive backed paper template is shipped with the unit and is used to locate the sink strainer holes. Use the following procedure to install the heater unit to the holding vessel. NOTE: The FR2 heater should be positioned with no more than 3' (914 mm) on either side when mounted under holding vessel.
  • Page 8: Auto-Fill

    CAUTION Water Quality Requirements - Incoming water in excess of 3.0 grains of hardness per gallon (GPG) (.75 grains of hardness per liter) must be treated or softened before being supplied to a Hydro-Heater. Water containing over 3.0 GPG(.75 GPL) will decrease the efficiency and reduce the operating life of the unit.
  • Page 9: Operation

    WARNINGS Hatco FR2 series units are designed for commercial use only by properly trained personnel! WARNINGS Units are designed to heat water up to 190ºF (88ºC). To avoid any injury or damage DO NOT set temperature controls to a setting higher than 190ºF (88ºC).
  • Page 10: Minutes To Heat Table

    9" (23 cm) DEEP WATER - 750 WATTS PER SQUARE FOOT OF VESSEL TOP Water Temp. At Start-Up (21) (27) (32) 60°F (16°C) 70°F (21°C) 80°F (27°C) 90°F (32°C) 100°F (38°C) 110°F (43°C) 120°F (48°C) 130°F (54°C) 140°F (60°C) 150°F (65°C) 160°F (71°C) 170°F (76°C) 6"...
  • Page 11: Maintenance

    GENERAL WARNING To avoid any injury, turn the power switch off at the fuse disconnect switch/circuit breaker or unplug the unit from the power source and allow to cool completely before performing any maintenance or cleaning. Recommended Cleaning Schedule Complete draining and cleaning should be done •...
  • Page 12: Weekly

    6. Remove any visible lime sediment or debris deposits from the outlets using the cleaning brush supplied with the unit, Hatco part number 03.40.060.00. To remove, insert brush into the clean-out and sump drain outlets and use a scrubbing motion until clean.
  • Page 13 Some aftermarket or generic replacement parts do not have the characteristics that will allow them to operate safely in Hatco equipment. It is essential to use Hatco Replacement Parts when repairing Hatco equipment. Failure to use Hatco Replacement Parts may subject...
  • Page 14: Hatco Limited Warranty

    Hatco reserves the right to accept or reject any such claim in whole or in part. Hatco will not accept the return of any Product without prior written approval from Hatco, and all such approved returns shall be made at Buyer’s sole expense.
  • Page 15 NOTES Form No. FR2M-0604...
  • Page 16: Authorized Parts Distributors

    Brooklyn GCS Service Indianapolis 317-545-9655 P.O. Box 340500, Milwaukee, WI 53234-0500 U.S.A. Parts & Service Fax (800) 690-2966 Printed in U.S.A. June 2004 HATCO AUTHORIZED PARTS DISTRIBUTORS NEW YORK (continued) Alpro Service Co. 319-323-1823 Brooklyn Appliance Installation Buffalo Northern Parts Dist.
