- Page 1 U S E R M A N U A L I N A L T O . H O U S E 30cm Ceramic Cooktop — M O D E L C O D E / S I C C 3 0 2 K A H I G H E R L E V E L O F C O O K I N G...
-
Page 2: Welcome
It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an InAlto appliance and we look forward to being of service to you. -
Page 3: Table Of Contents
Contents 2 Welcome 4 General Safety Warnings 6 Your Cooktop 8 Installation 10 Using Your Cooktop 12 Care and Cleaning 13 Troubleshooting 14 Technical Specifications 15 Purchase Details 16 Your Receipt 17 Warranty Information... -
Page 4: General Safety Warnings
General Safety Warnings PLEASE READ THE FOLLOWING INSTRUCTIONS • Failure to install the appliance correctly could CAREFULLY BEFORE USING THE APPLIANCE. invalidate any warranty or liability claims. • Regarding the details of installation, please to refer to CONDITIONS OF USE the Installation section of this manual. - Page 5 General Safety Warnings Important safety instructions • This appliance can be used by children aged from 8 • Never leave the appliance unattended when in use. years and above and persons with reduced physical, Boilover causes smoking and greasy spillovers that sensory or mental capabilities or lack of experience may ignite.
-
Page 6: Your Cooktop

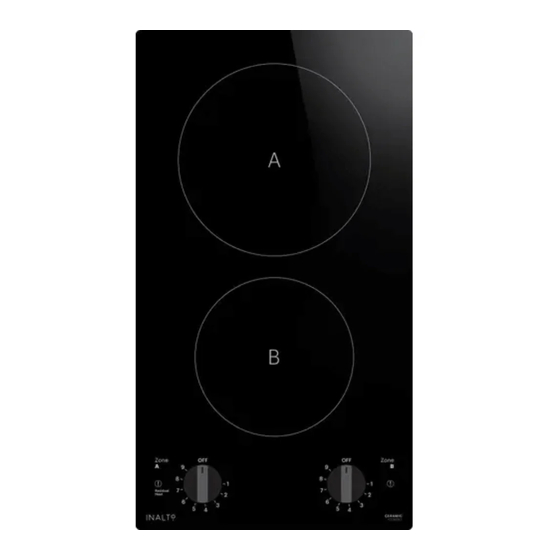

Your Cooktop Max. 1800W Zone Max. 1200W Zone Heating Zone Residual Heat Indicators On/Off Button Knob Power Control... - Page 7 Your Cooktop PRODUCT INFORMATION The ceramic cooktop can meet different kinds of cuisine demands because of resistance wire heating, micro-computerised control and multi-power selection, making it the optimal choice for modern families. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life.
-
Page 8: Installation
Installation BEFORE YOU INSTALL THE COOKTOP This ceramic can be connected only to a supply with • Be sure that the work surface is square and level, system impedance no more than 0.427 ohm. In case and no structural members interfere with space necessary, please consult your supply authority for system requirements. - Page 9 D (mm) A (mm) B (mm) X (mm) ICC302K 50 minimum WARNING: The work surface material must use the impregnated wood or other insulation material. Under all circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked.
-
Page 10: Using Your Cooktop
Using Your Cooktop TO START COOKING WHEN YOU HAVE FINISHED COOKING • After power on, the buzzer beeps once, the indicators • Select the cooking zone that you wish to swich off. light up for 1 second then go out, indicating that the hob has entered the state of standby mode. - Page 11 Using Your Cooktop AUTO SHUTDOWN • Heat up a heavy-based frying pan. Safety feature of the hob is auto shut down. This occurs • Brush both sides of the steak with oil. Drizzle a small whenever you forget to switch off a cooking zone. amount of oil into the hot pan and then lower the meat The default shutdown times are shown in the table below: onto the hot pan.
-
Page 12: Care And Cleaning
Care and Cleaning EVERYDAY SOILING ON GLASS SPILLOVERS ON THE TOUCH CONTROLS (Fingerprints, marks, food stains or non-sugary • Switch the power to the cooktop off. spillovers on the glass) • Soak up the spill • Switch the power to the cooktop off. •... -
Page 13: Troubleshooting
Troubleshooting Problem Possible causes Solution The cooktop cannot be No power to the cooktop Make sure the cooktop is connected to the power supply turned on and that it is switched on. Check whether there is a power outage in your home or area. -
Page 14: Technical Specifications
Technical Specifications Ceramic Cooktop Model: ICC302K Cooking Zones: 1 × Max. 1800 W Zone 1 × Max. 1200 W Zone Supply Voltage: 220-240V~ 50Hz or 60Hz Installed Electric Power: 2900W Product Dimensions (W, D, H): 520mm, 290mm, 50mm Cut-out Dimensions (A, B): 270mm, 490mm Weight and Dimensions are approximate. -
Page 15: Purchase Details
Purchase Details For future reference, please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. STORE DETAILS STORE NAME ADDRESS TELEPHONE PURCHASE DATE PRODUCT DETAILS MODEL NO. -
Page 16: Your Receipt
Attach your receipt to this page... -
Page 17: Warranty Information
Simply visit the below website, or ask your retailer microwave magnetron; Waste disposers have a 12 for help: month warranty. www.inalto.co.nz/register The provision of service under this warranty is limited by a 25km boundary from the retailer where the product was purchased except for microwaves. - Page 18 Warranty Information AUSTRALIAN WARRANTY TERMS & CONDITIONS This warranty only applies to Appliances purchased APPLIANCES and used in Australia and is in addition to (and does not exclude, restrict, or modify in any way) any This document sets out the terms and conditions of the non-excludable statutory warranties in Australia.
- Page 19 You may not make a claim under this warranty unless 10. For Appliances and services provided by Residentia the defect claimed is due to faulty or defective parts Group in Australia, the Appliances come with a or workmanship. Residentia Group is not liable in the guarantee by Residentia Group that cannot be following situations (which are not exhaustive): excluded under the Australian Consumer Law.
- Page 20 A H I G H E R L E V E L O F C O O K I N G — W W W . I N A L T O . H O U S E —...
