Summary of Contents for Inalto ICC604TB

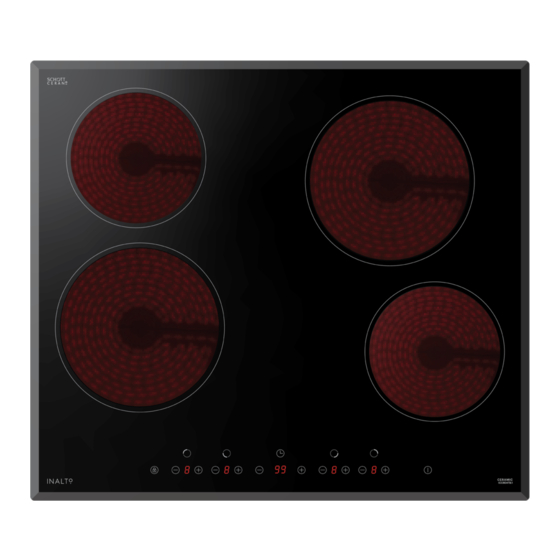

- Page 1 U S E R M A N U A L I N A L T O . C O M . A U 60cm Electric Cooktop — M O D E L C O D E / S I C C 6 0 4 T B A H I G H E R L E V E L O F C O O K I N G...
- Page 2 It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an InAlto appliance and we look forward to being of service to you. Kind Regards, The Residentia Team Postage.
- Page 3 CONTENTS INALTO.COM.AU WELCOME SAFE T Y YOUR INALTO INSTRUCTIONS COOKTOP INSTALL ATION OPERATING CLEANING & INSTRUCTIONS YOUR COOKTOP MAINTENANCE — TECHNICAL DATA TROUBLESHOOTING PURCHASE DETAILS WARRANTY INFORMATION...
- Page 4 ► Repairs may only be carried out by authorised service agents. ► Your Inalto cooktop is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
- Page 5 PAGE 05 INALTO.COM.AU DECLARATION OF CONFORMITY UNPACKING The manufacturer declares that the cooktop is built using During transportation, protective packaging was used to certified materials and requires the appliance to be installed protect the appliance against any damage. After unpacking, in accordance with the standards currently in force.
- Page 6 USER MANUAL USER MANUAL PAGE 06 PAGE 06 Your InAlto Cooktop YOUR INALTO COOKTOP SPECIFICATIONS ► ► ► MODEL PRODUCT DIMENSIONS (W×D×H) CUT-OUT DIMENSIONS (W×D) 590mm, 520mm, 55mm 560mm x 490mm ICC604K MODEL BURNERS OTHER x 1.80 kW radiant zones (Ø 190mm)
- Page 7 PAGE 07 PAGE 07 INALTO.COM.AU Installation Instructions INSTALLATION INSTRUCTIONS It’s important to carefully read the following installation instructions before beginning the installation of your cooktop. IMPORTANT! The connection of this cooktop must be carried out by a suitably qualified and licensed person, in accordance with the current version of the following: ►...
- Page 8 USER MANUAL USER MANUAL PAGE 08 PAGE 08 INSTALLATION INSTRUCTIONS LOCATING THE FI ING BRACKETS ► The unit should be placed on a stable, smooth surface (use the packaging). Do not apply force onto the controls protruding from the hob. Fix the hob on the work surface by screw four brackets on the bottom of hob (see picture) after installation.
- Page 9 PAGE 09 PAGE 09 INALTO.COM.AU CONNECTING THE HOB TO THE MAINS POWER SUPPLY The power supply should be connected in compliance with the relevant standard, or a single-pole circuit ► breaker. The method of connection is shown below. If the cable is damaged or needs replacing, this should be done by an after-sales technician using ►...
- Page 10 USER MANUAL USER MANUAL PAGE 10 PAGE 10 Operating Your Cooktop OPERATING YOUR COOKTOP BEFORE FIRST USE IMPORTANT! You should clean the ceramic cooktop surface (refer to the “Cleaning and Maintenance” section). ► You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
- Page 11 PAGE 1 1 PAGE 1 1 INALTO.COM.AU OPERATING YOUR COOKTOP CHOOSING THE RIGHT COOKWARE Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone.
- Page 12 USER MANUAL USER MANUAL PAGE 12 PAGE 12 TO START COOKING Do not use cookware with jagged edges or a curved base. After power on, the buzzer beeps once, all the indicators light up for 1 second ► then go out, indicating that the ceramic hob has entered the state of standby mode.
- Page 13 PAGE 13 PAGE 13 INALTO.COM.AU RESIDUAL HEAT INDICATORS ► After a zone is switched off, the corresponding cooking zone will show an “H” in the control panel. This means that the temperature of the zone still high enough to cause injury.
- Page 14 USER MANUAL USER MANUAL PAGE 14 PAGE 14 OPERATING YOUR COOKTOP USING THE TIMER You can use the timer in two different ways: You can use it as a minute minder. In this case, the timer will not turn any ►...
- Page 15 PAGE 15 PAGE 15 INALTO.COM.AU SETTING THE TIMER TO TURN ONE OR MORE COOKING ZONES OFF If the timer is set on one zone: Touch the”-“ or ”+” of the corresponding cooking ► zone that want to set the timer for.
- Page 16 USER MANUAL USER MANUAL PAGE 16 PAGE 16 If the timer is set on more than one zone: When you set the time for several cooking zones simultaneously, decimal dots ► of the relevant cooking zones are on. The minute display shows the min. timer. The dot of the corresponding zone flashes.
- Page 17 PAGE 17 INALTO.COM.AU Cleaning & Maintenance By ensuring proper cleaning and maintenance of your Inalto cooktop, you can ensure that it will have a long and fault free operation. WARNING! Do not start cleaning the cooktop until it has completely cooled.
- Page 18 USER MANUAL PAGE 18 Troubleshooting Please read the issues below carefully and try all relevant steps. If none of this helps, please contact us on 1300 11 4357 for further advice or to schedule a technician to inspect your cooktop. Tips &...
- Page 19 RECEIPT PAGE 19 INALTO.COM.AU Purchase Details For future reference, please record the following The rating plate of your hob is located on the underneath information which can be found on the rating plate and the of the appliance. Therefore please fit the duplicate data date of purchase which can be found on your sales invoice.
- Page 20 USER MANUAL PAGE 20 Warranty Information WARRANTY TERMS & CONDITIONS IN THIS WARRANTY COOKING APPLIANCES ‘acceptable quality’ as referred to in clause 10 of this (BUILT-IN OVENS, COOKTOPS) warranty has the same meaning referred to in the ACL; ‘ACL’ means Trade Practices Amendment (Australian This document sets out the terms and conditions of the Consumer Law) Act (No.2) 2010;...
- Page 21 PAGE 21 INALTO.COM.AU 10. For Appliances and services provided by Residentia You will bear the cost of transportation, travel and delivery of the Appliance to and from Residentia Group in Australia, the Appliances come with a Group or its ASR. If you reside outside of the service...
- Page 22 USER MANUAL PAGE 22 This page is intentionally left blank...
- Page 23 PAGE 23 INALTO.COM.AU This page is intentionally left blank...
- Page 24 A H I G H E R L E V E L O F C O O K I N G — W W W . R E S I D E N T I A . G R O U P...
