Summary of Contents for Inalto ICC604T2
- Page 1 U S E R M A N U A L I N A L T O . H O U S E 60cm Ceramic Cooktop MODEL CODE/S I C C 6 0 4 T 2 F O R A L L A U S T R A L I A N H O M E S V 1 .
- Page 2 It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an InAlto appliance and we look forward to being of service to you.
-
Page 3: Table Of Contents
27 Warranty Information Customer Care InAlto recommends the use of original spare parts. When contacting our customer service team on 1300 11 4357, please ensure that you have the following information at hand (which can be found on your appliances’ rating plate). -
Page 4: Safety Instructions
Safety Instructions IMPORTANT INFORMATION INSTALLATION Your safety is important to us. Please read Electrical Shock Hazard this information before using your cooktop. • Disconnect the appliance from the mains electricity supply before carrying out any work or WARNING maintenance on it. •... -
Page 5: Operation And Maintenance
Metallic objects such as knives, forks, spoons and Cut Hazard lids should not be placed on the cooktop surface since • The razor-sharp blade of a cooktop scraper is they can get hot. exposed when the safety cover is retracted. Use with •... -
Page 6: Information On Disposal For Users
Safety Instructions (Continued) or their surroundings. • In the event of faults with the appliance or damage • Do not repair or replace any part of the appliance to the glass ceramic (cracks, scratches or splits), the unless specifically recommended in the manual. All appliance must be switched off and disconnected other servicing should be done by a from the electrical supply, to prevent the possibility... -
Page 7: This Page Is Intentionally Lef T Bl Ank
THIS PAGE IS INTENTIONALLY LEF T BL ANK... -

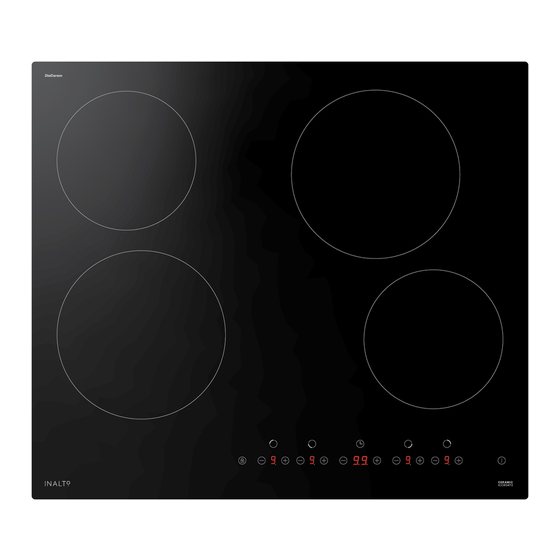

Page 8: Your Inalto Cooktop
Your InAlto Cooktop PRODUCT CONTROL PANEL LEGEND A. On/Off Power button B. Child lock button C. Power regulating buttons D. Timer regulating buttons CERAMIC ICC604T2 LEGEND 165mm Zone, Max. 1200W 200mm Zone, Max. 1800W 200mm Zone, Max. 1800W 165mm Zone, Max. 1200W 5. -
Page 9: Before First Use
Before First Use WARNING BEFORE FIRST USE Never install a cooktop that has been damaged. Please contact our Customer Care team for • Before using this appliance read this manual, taking further assistance. special note of the “Safety Instructions” section. CLEANING IMPORTANT! You should clean the Ceramic... -
Page 10: Using Your Cooktop
Using Your Cooktop TOUCH CONTROLS • All operations are performed by means of the touch controls that can be found on the control panel at the front of your cooktop. USING THE TOUCH CONTROLS • The controls respond to touch, so you don’t need to apply any pressure. •... -
Page 11: Operation Instructions
Operation Instructions TO START COOKING LOCKING THE CONTROLS IMPORTANT! • You can lock the controls to prevent unintended Do not use cookware with jagged edges use (for example children accidentally turning the or a curved base. cooking zones on). • When the controls are locked, all the controls except After power on, the buzzer beeps once, all the indicators the ON/OFF control are disabled. -
Page 12: Cooking Guidelines
Operation Instructions (Continued) HINT: COOKING GUIDELINES • Touch the “-” or “+” control of the timer Take care when frying as the oil and fat heat up very once to decrease or increase by 1 minute. quickly, particularly if you’re using Power-Boost. At •... -
Page 13: For Stir-Frying
The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the Ceramic cooktop to find the settings that best suit you. HEAT SETTINGS ICC604T2 • Delicate warming for small amounts of food • Melting chocolate, butter, and foods that burn quickly •... -
Page 14: Installation Instructions
Installation Instructions WARNING This user manual must be read! The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) IMPORTANT! Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. - Page 15 RODUCT INSTALLATION INSTALLATION Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. Be sure the thickness of the work surface is at least tion of Installation Equipment 30mm.
-
Page 16: Before Locating The Fixing Brackets
Installation Instructions (Continued) WARNING Ensuring Adequate Ventilation Make sure the Ceramic cooktop is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the cooktop, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the cooktop. - Page 17 BEFORE INSTALLING THE COOKTOP, ENSURE • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant and insulated material. • If the cooktop is installed above an oven, the oven has a built-in cooling fan. •...
-
Page 18: Electrical Connection
Installation Instructions (Continued) ELECTRICAL CONNECTION The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. WARNING The bottom surface and the power cord of the cooktop are not accessible after installation. •... - Page 19 This appliance is labeled in compliance with European directive 2012/19/EU for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.
-
Page 20: Troubleshooting
Troubleshooting Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to the service center.. GENERAL CLEANING INSTRUCTIONS WARNING Do not start cleaning the cooktop until it has completely cooled. - Page 21 Troubleshooting (Continued) Some minor faults can be fixed by referring to the instructions given below. There is also a self-help section online at www.support.residentiagroup.com.au. Problem Possible Cause Solution The cooktop cannot be turned on. No power. Make sure the ceramic cooktop is connected to the power supply and that it is switched on.
-
Page 22: Error Codes
Troubleshooting (Continued) ERROR CODES 1. The cooktop is equipped with a self diagnostic function. With this test the technician is able to check the function of several components without disassembling or dismounting the cooktop from the working surface. 2. Failure code occur during customer using & Solution; Failure Code Problem Solution... -
Page 23: Technical Specifications
Technical Specifications MODEL ICC604T2 COOKING ZONES 4 Zones RATED VOLTAGE 220-240V~ 380-415V 3N~ RATED FREQUENCY 50Hz or 60Hz INSTALLED ELECTRIC POWER 5500-6600W PRODUCT SIZE (W × D × H mm) 590 × 520 × 51mm CUT-OUT IN DIMENSIONS (A × B mm) -
Page 24: Purchase Details
Purchase Details For future reference, please record the following information in the form below. The product details can be found on the rating plate, and purchase details which can be found on your sales invoice. STORE DETAIL S STORE NAME ADDRESS TELEPHONE PURCHASE DATE... -
Page 25: Warranty Information
Warranty Information... - Page 26 (a) the Appliance is damaged by: replaced if the Appliance fails to be of acceptable accident quality and the failure does not amount to a major (ii) misuse or abuse, including failure to properly failure. The benefits to you given by this warranty maintain or service are in addition to your other rights and remedies under a law in relation to the Appliances or services...
-
Page 27: Warranty
Simply visit the below website, or ask your retailer 24 months on the microwave magnetron; Waste for help: www.inalto.house/nz/registration disposers have a 12 month warranty. The provision of service under this warranty is... - Page 28 D E S I G N E D I N M E L B O U R N E F O R A L L A U S T R A L I A N H O M E S —...
