Summary of Contents for Inalto ICC604TB.1
- Page 1 U S E R M A N U A L I N A L T O . H O U S E 60cm Ceramic Cooktop MODEL CODE/S I C C 6 0 4 T B .1 F O R A L L A U S T R A L I A N H O M E S V 1 .
- Page 2 It is important that you read through the following use and care manual thoroughly to familiarise yourself with the installation and operation requirements of your appliance to ensure optimum performance. Again, thank you for choosing an InAlto appliance and we look forward to being of service to you.
-
Page 3: Table Of Contents
24 Warranty Information Customer Care InAlto recommends the use of original spare parts. When contacting our customer service team on 1300 11 4357, please ensure that you have the following information at hand (which can be found on your appliances’ rating plate). -
Page 4: Safety Instructions
Safety Instructions IMPORTANT INFORMATION INSTALLATION The following statements you will see in this booklet Electrical Shock Hazard have these meanings: • Disconnect the appliance from the mains electricity supply before carrying out any work or WARNING! maintenance on it. • Connection to a good earth wiring system is Indicating information concerning your personal essential and mandatory. - Page 5 • Metallic objects such as knives, forks, spoons and lids Hot Surface Hazard should not be placed on the cooktop surface since • During use, accessible parts of this appliance will they can get hot become hot enough to cause burns. •...
- Page 6 Safety Instructions (Continued) CAUTION: Important safety instructions (cont.) Read the following carefully to avoid an • Do not use pans with jagged edges or drag pans electric shock or fire. across the ceramic glass surface as this can scratch the glass. It is important to use your cooktop safely.
- Page 7 THIS PAGE IS INTENTIONALLY LEF T BL ANK...
-
Page 8: Your Inalto Cooktop

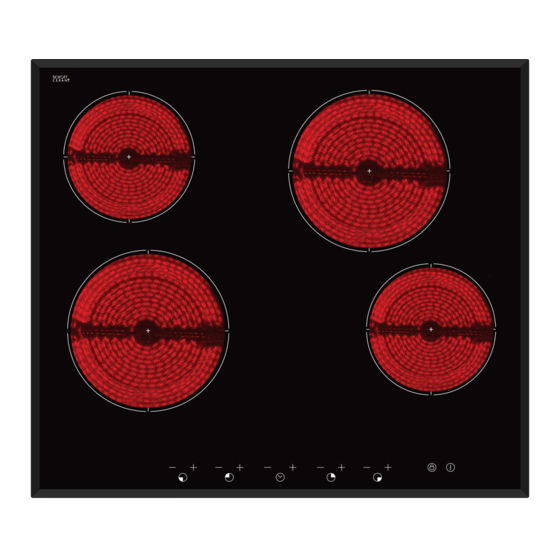

Your InAlto Cooktop PRODUCT LEGEND Max. 1200 W zone 2. Max. 1800 W zone 3. Max. 1200 W zone 4. Max. 1800 W zone 5. Glass plate 6. Control panel CONTROL PANEL LEGEND ON/OFF control 2. Power regulating controls 3. Keylock control 4. -
Page 9: Before First Use
Before First Use BEFORE FIRST USE SERVICING • Before using this appliance read this manual, taking • Servicing MUST only be carried out by authorised special note of the ‘Safety Instructions’ section. personnel. • To maintain safe operation, it is recommended that IMPORTANT! You should clean the ceramic the product be inspected every five years by an... -
Page 10: Using Your Cooktop
Using Your Cooktop GENERAL USE INSTRUCTIONS • Do not use cookware with jagged edges or a curved base. • Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. -
Page 11: Operation Instructions
ware Operation Instructions d base. TOUCH CONTROLS WHEN YOU HAVE FINISHED COOKING s flat against the glass, and is the same size as the • All operations are performed by means of the touch ng zone. controls that can be found on the control panel at Turn a specific cooking zone off by scrolling down the front to “0”... - Page 12 Operation Instructions (Continued) OVER TEMPERATURE PROTECTION Setting a timer to turn off one or more cooking zones A temperature sensor equipped can monitor the • Touch the “-” or “+” of the corresponding cooking temperature inside the ceramic hob. When an excessive zone you want to set the timer for.
- Page 13 THIS PAGE IS INTENTIONALLY LEF T BL ANK...
-
Page 14: Installation Instructions
Installation Instructions WARNING This user manual must be read! The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.) IMPORTANT! Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be observed. - Page 15 8 Installation 8.1 Selection of installation equipment Cut out the work surface according to the sizes shown in the drawing. For the purpose of installation and use, a minimum of 5 cm space shall be preserved around the hole. INSTALLATION Be sure the thickness of the work surface is at least 30mm.
- Page 16 SEAL L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) F(mm) Installation Instructions (Continued) 875+4 495+4 50 mini 3 mini Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below CLEARANCES Under any circumstances, make sure the ceramic cooktop is well ventilated and the air inlet and outlet are not Note: The safety distance between the hotplate and the cupboard above the hotplate should be...
- Page 17 Be aware that the glue that join the plastic or wooden material to the furniture, has to resist to temperature not below 150°C, to avoid the unstuck of the paneling. The rear wall, adjacent and surrounding surfaces must therefore be able to withstand an temperature of 90°C.
- Page 18 Installation Instructions (Continued) ELECTRICAL CONNECTION IMPORTANT The cooktop must NOT be connected to the mains supply by means of a 10A or 15A plug and socket. The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker.
-
Page 19: Cleaning & Maintenance
Cleaning & Maintenance By ensuring proper cleaning and maintenance of your InAlto cooktop, you can ensure that it will have a long and fault free operation. GENERAL CLEANING INSTRUCTIONS WARNING Do not start cleaning the cooktop until it has completely cooled. - Page 20 Cleaning & Maintenance (Continued) USING A SPECIALIST CERAMIC COOKTOP CLEANER It is possible to purchase a specialist ceramic cooktop cleaner/conditioner. You should follow the instructions given by the manufacturer of the cleaner and ensure that it is suitable for use on your appliance. NOTE Scratches or dark stains on the glass ceramic that cannot be removed will not affect the functioning of the appliance.
-
Page 21: Troubleshooting
Troubleshooting Some minor faults can be fixed by referring to the instructions given below. Please do not disassemble the unit by yourself to avoid any dangers and damages to the ceramic cooktop. Instead contact our customer care team on 1300 11 4357 or visit our self help portal online www.support.residentiagroup.com.au. Problem Possible Cause Remedy... -
Page 22: Technical Specifications
Technical Specifications MODEL ICC604TB.1 RATED VOLTAGE 220-240V~ 50 or 60Hz INSTALLED ELECTRIC POWER 5500-6600W PRODUCT SIZE (W x D x H mm) 590 × 520 × 55mm BUILT IN DIMENSIONS (A x B mm) 560 × 490mm... -
Page 23: Purchase Details
Purchase Details For future reference, please record the following information in the form below. The product details can be found on the rating plate, and purchase details which can be found on your sales invoice. STORE DETAIL S STORE NAME ADDRESS TELEPHONE PURCHASE DATE... -
Page 24: Warranty Information
Warranty Information AUSTRALIAN WARRANTY TERMS & CONDITIONS (h) ‘you’ means the purchaser of the Appliance not COOKING APPLIANCES having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning. This document sets out the terms and conditions This warranty only applies to Appliances of the product warranties for Residentia Group purchased and used in Australia and is in Appliances. - Page 25 (a) the Appliance is damaged by: replaced if the Appliance fails to be of acceptable accident quality and the failure does not amount to a major (ii) misuse or abuse, including failure to properly failure. The benefits to you given by this warranty maintain or service are in addition to your other rights and remedies (iii)
- Page 26 THIS PAGE IS INTENTIONALLY LEF T BL ANK...
- Page 27 Simply visit the below website, or ask your retailer 24 months on the microwave magnetron; Waste for help: www.inalto.house/nz/registration disposers have a 12 month warranty. The provision of service under this warranty is...
- Page 28 D E S I G N E D I N M E L B O U R N E F O R A L L A U S T R A L I A N H O M E S —...
