Arlight T2 Quick Start Manual

Сенсорный пульт LT-T2 (для MIX-ленты)
ISO9001:2008

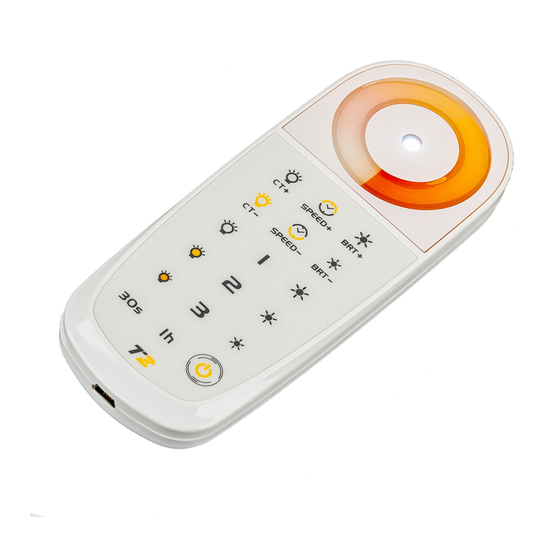

T2 is the 2.4GHZ RF wireless synchronization color temperature controller which adopts LTECH multiple
global initiate technology, the control system consists of two parts, the RF remote control and the receiver,
realize the signal synchronization on unlimited receivers within effective distance, a very good solution for the
LED project needs sync control wirelessly.
Can RF remote the functions of color temperature dimming, quick color temperature/brightness selection, DIY
and delay off and so on. User-friendly color wheel for color temperature adjustment, unique LED state light
for sync change indicated, user can simply know the LED working state from distance by checking the remote
control.
Receiver can automatically adapt to the input voltage of DC 5V-24V. widely used for all LED lights with
current-limiting resistance, such as single color LED module, LED tape and SMD flexible strip and so on.

1. Technical Specs:

Remote Control
Model: T2
Input Voltage: DC5V Built-in Lithium Battery
Working Current: 30mA <
Working Frequency: 2.4GHZ
RF Remote Distance: 30m
Remote Option: Sync Control
Battery Capacity: 1000mAh
Standby Time: 6 Months
Normal Using Time: 30 Days
Dimensions: L145×W55×H22(mm)
Package Size: L168×W102×H28(mm)
Weight (G.W.): 200g
warranty
RoHS
3 years
COMPLIANT
Receiver
Model: T2-5A
Power Supply Chosen: DC CV SMPS
Input Voltage: DC5V DC24V
～
Max Current Load: 5A × 2CH
Max Output Power: 50W/120W/240W(5V/12V/24V)
Dimming Range: 5~100%
S ync Quantity: No Quantity Limit
Compatible Remote Control: T1/T2/T2M
Working Temperature: -30 55
℃ ～ ℃
Dimensions: L175×W44×H30(mm)
Package Size: L178×W48×H33(mm)
Weight (G.W.): 110g
1
2.

Performance Features:

1 Adopt 2.4GHZ RF wireless transmission technology, which is applicable for license and patent free worldwide.
.
2. Built-in with dual-core driver, make it 10 times of processing speed. can process the wireless data transmission
in complicated and multiple levels.
3. Advanced RF wireless sync control technology, no sync signal wire between receivers, sync capability is stable
and reliable.
4. The remote control adopts the capacitive touch control technology on the circle, make the color temperature
adjustment more intelligentized and humanized.
5. Built-in sync status indicator on the remote control, which can show the bright status of the LED synchronously.
6. Color changing scene mode and preset storage function.
7. USB charging port.
3.

Product Size:

175mm
170mm

4. Components Description for Receiver and Remote Control:

DC5V 24V
~
Power Input Terminal
Remote ID
Learning Button
Touch Color Circle
Speed+/Speed-
CT+/CT-
Scene-save Keys
CT Shortcut Keys
Delay Off Keys
145mm
LED Lamp Connection Terminal
Sync Status Indicator Light
BRT+/BRT-
BRT Shortcut Keys
On Off /
