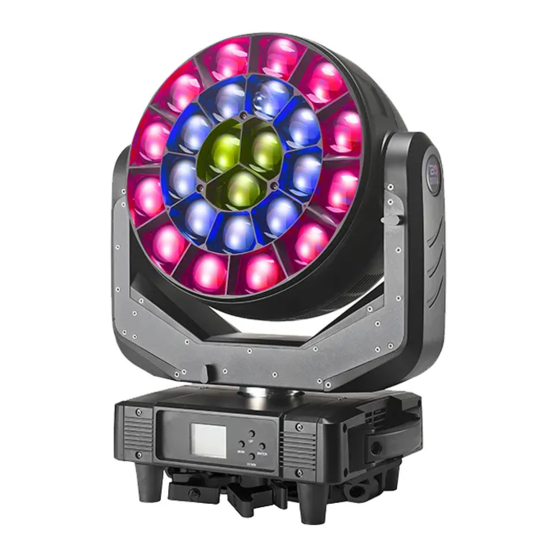

- Page 1 Silhouette Oculus XL Z 24x60w RGBW LED Wash with Pixel Mapping User Manual Silhouette Oculus XL Z – GAMMA LED Vision Page 1 of 20...
-
Page 2: Table Of Contents
Using the LCD Menu and Buttons........................6 DMX Setup................................8 DMX Basics................................8 DMX Wiring................................8 DMX Modes and Configuration........................10 Pixel Layout – 68 Channel Mode:......................14 3. Maintenance................................16 Routine Maintenance............................16 Troubleshooting Problems..........................16 4. Technical Specifications............................17 5. Photometrics................................18 Silhouette Oculus XL Z – GAMMA LED Vision Page 2 of 20... -
Page 3: Introduction And Setup
Introduction and Setup Unpacking and In the Box Thank you for choosing our Silhouette Oculus XL Z. For your own safety, please read this manual before installing or using the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. -
Page 4: Safety Precautions
∙Warranty is voided if there are any malfunctions from not following the user manual while operating or any hazardous operation, like shock short circuit, electronic shock, lamp broken, etc. Silhouette Oculus XL Z – GAMMA LED Vision Page 4 of 20... -
Page 5: Customer Support
Customer Support WARRANTY POLICY GAMMA LED Vision warrants its products for the periods set below from the date of purchase to be free of manufacturer and workmanship defects. Warranty does not cover normal wear and tear caused by force, negligence or misuse of products. GAMMA LED Vision is not responsible for any damages or injury caused by misuse or improper handling of the products and in accordance with instructions and specifications of manual. -
Page 6: Setup And Operation
3. Custom Art-Net 4. Custom Sets the custom IP address. 5. SubNet Mask Sets the Subnet Mask 8. Default YES/NO Resets the Fixture to Factory Silhouette Oculus XL Z – GAMMA LED Vision Page 6 of 20... - Page 7 Shows active DMX values for all channels 2. Temp Shows Temperature in Celsius 3. Soft VX.X Shows firmware version of light 4. IP Shows IP Address 5. Mask Shows Subnet Mask Silhouette Oculus XL Z – GAMMA LED Vision Page 7 of 20...
-
Page 8: Dmx Setup
1, 2, and 3 are used. The cable should be a 2 conductor, shielded cable of at least 110 ohms resistance. Microphone cable is not DMX cable. Please refer to the diagram below: Silhouette Oculus XL Z – GAMMA LED Vision Page 8 of 20... - Page 9 XLR plug with a 120 Ω resistor connected between pins 2 and 3, which is then plugged into the output XLR socket of the last fixture in the chain. Please see illustrations below: Silhouette Oculus XL Z – GAMMA LED Vision Page 9 of 20...
-
Page 10: Dmx Modes And Configuration
DMX Modes and Configuration The Silhouette Oculus XL Z has multiple DMX modes, sometimes called “personalities”, “profiles”, or as we will use here “modes”. In general, modes with more DMX channels offer a greater level of control or options but take up more of your output channels on your lighting console or software. - Page 11 Speed II. When 10-132 Forward, from Fast to Slow using ch. 17, this 133-255 Backward, Fast to Slow gives you speed control of the secondary aspect of the pattern. Silhouette Oculus XL Z – GAMMA LED Vision Page 11 of 20...
- Page 12 Speed from Fast to Slow Zoom 0-255 3.5°-45° Zoom, Narrow to Wide Lens Rotation 0-155 Lens Indexing 156-205 Clockwise Rotation, Fast to Slow 206-255 Counterclockwise Rotation, Slow to Fast Silhouette Oculus XL Z – GAMMA LED Vision Page 12 of 20...
- Page 13 0-255 RGBW for each cell from channels 34-129 Blue 36... 0-255 RGBW for each cell from channels 34-129 White 37... 0-255 RGBW for each cell from channels 34-129 Silhouette Oculus XL Z – GAMMA LED Vision Page 13 of 20...
-
Page 14: Pixel Layout - 68 Channel Mode
Pixel Layout – 129 Channel Mode: Center is 1-3, Clockwise Middle Ring is 4-12, Clockwise: Silhouette Oculus XL Z – GAMMA LED Vision Page 14 of 20... - Page 15 When the Pan and Tilt are at 50%, the yoke is perpendicular to the LCD screen. If you are standing in front of the unit, sitting on the ground, your shoulders are parallel to the yoke. Silhouette Oculus XL Z – GAMMA LED Vision Page 15 of 20...
- Page 16 As you increase the Pan channel, the fixture moves clockwise. When Pan is at 50%, and you increase the tilt, the head points away from you. Silhouette Oculus XL Z – GAMMA LED Vision Page 16 of 20...
-
Page 17: Maintenance
Plug the light directly into the DMX controller with a cable that you know is good. • Unplug all other lights – does it work? Try to use another DMX controller. • Silhouette Oculus XL Z – GAMMA LED Vision Page 17 of 20... -
Page 18: Technical Specifications
AC 100-240v, 50/60Hz • 57.2 lbs / 25.94 Kgs • Dimensions: 13.94”x17.48”x18.78” • 354x444x477mm Box Dimensions: 19.9”x20.87”x24.01” 485x530x610mm • Working Temperature -10° C to 45° C • • IP20 Silhouette Oculus XL Z – GAMMA LED Vision Page 18 of 20... -
Page 19: Photometrics
9270 7200 2400 2070 1100 Narrow Zoom 3.5° Distance in Feet Brightness at Full High CRI Mix Brightness 10500 8230 9060 7010 6310 5510 4970 4030 3780 2790 Silhouette Oculus XL Z – GAMMA LED Vision Page 19 of 20... - Page 20 CRI 84.1 – 8164k TM-30 Silhouette Oculus XL Z – GAMMA LED Vision Page 20 of 20...
