LED PAR LIGHT
CW&WW 2 IN1
This product manual contains important information about the safe installation and use of this projector.
Please read and follow these instructions carefully and keep this manual in a safe place for future reference.

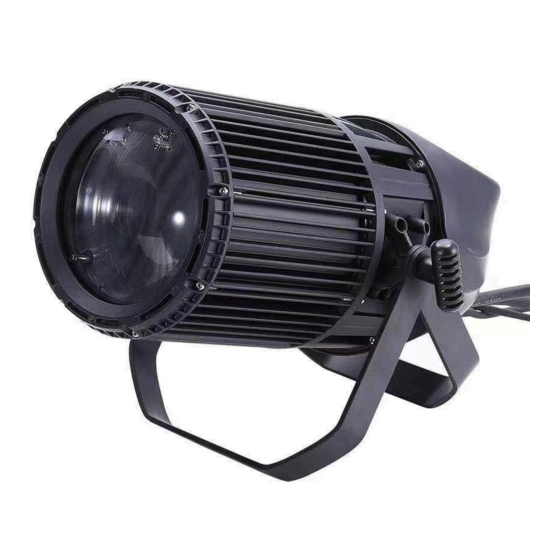

200W Cob Led Par Zoom
Rosé XT LED 200 Zoom
User Instruction
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gamma Rose XT LED 200 Zoom
Summary of Contents for Gamma Rose XT LED 200 Zoom
- Page 1 LED PAR LIGHT CW&WW 2 IN1 200W Cob Led Par Zoom Rosé XT LED 200 Zoom This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. User Instruction...
-
Page 2: Table Of Contents
CONTENTS 1. INSTRUCTION 1) Unpacking 2) Introduction 3) AC Power 4) Safety Instruction 5) Cleaning 2. FEATURE 3. SET UP 1) 3-Pin to 5-Pin Conversion Chart 2) Setting up a DMX Serial Data Link 3) Master/Slave Fixture Linking 4. DMX CHANNEL SUMMARY 1) Operation method 2) Dmx Channels... -
Page 3: Instruction
1. INSTRUCTION Led Par Light Unpacking: Thank you for purchasing our products. Every unit has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact. -
Page 4: Feature
the unit. Clea i g -The fixture should be cleaned only as recommended by the manufacturer. See page 3 for cleaning details. Hea -The appliance should be situated away from heat sources, such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat. The fi ld be e iced b ualified service personnel when:... -
Page 5: Set Up
CONTROL: DMX512, 3 pins interfaces RDM Control Protocol 6 Channels in standard mode Master/Salve Synchronous Control Mode: DMX512 / Master-Slave / Auto / Sound HOUSING: Cast aluminum, IP20 Indoor WORK ENVIRONMENT TEMPERATURE: -10°C-40°C PRODUCT DIMENSION: Size: 280*185*380MM WEIGHT: Net weight : 7.50Kg 3. -
Page 6: 3-Pin To 5-Pin Conversion Chart
3-Pin to 5-Pin Conversion Chart: Note! If you use a controller with a 5 pin DMX output connector,you will need to use a 5 pin to 3 pin adapter. The chart below details a proper cable conversion: 3-Pin to 5-Pin Conversion Conductor 3 Pin Female(Output) 5 Pin Male(Input) - Page 7 keystrokes Basic usage The main menu select or return to the higher level 【MENU】 menu Increasing menu choices or parameters 【UP】 Menu to select or parameters 【DOWN】 MENU UP DOWN ENTER 【ENTER】Enter or select submenu 4.2 Dmx Channels LED Display Screen Operation: Display Functions 6 channels address setting,（001 512）...
