Operation
Press any of the switches to operate.
The Transmitter will auto sleep between
operations to save power.
RF Transmit
GREEN
is transmitting an RF signal.
RF Acknowledge (if configured):
GREEN LED
will Flash at high speed to indicate
that an acknowledgment has successfully been
received back form the receiver.
RED LED
will Flash at high speed to indicate
that an acknowledgment has not been received
back form the receiver.
Low Battery: If battery requires recharging Low
Battery LED illuminates for 3 seconds after
each operation.
Recharging the Battery
Recharge with either USB Cable or QI Wireless Charger
uUSB Type C
When Charging the Battery
charging is in progress.
When fully charged the
Note: If the Battery becomes very depleted it can take a few
minutes before there is adequate charge to start the RED LED to
flash!
LED operates when Taurus
Wireless Recharging
RED LED
gives a slow Flash indicates
GREEN LED
is illuminated

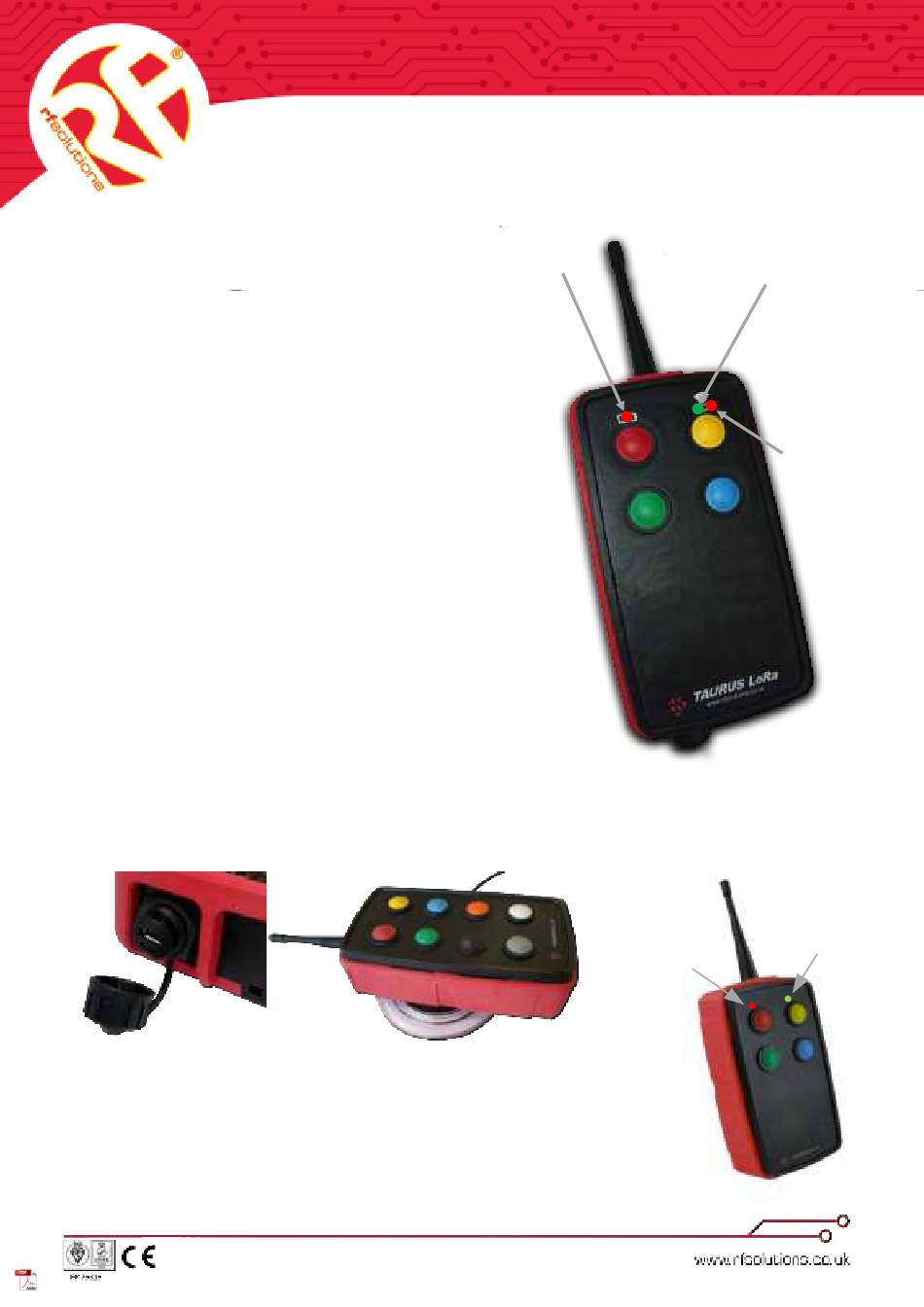

QS-TAURUS-2
TAURUS Transmitter
Quick Start Guide
Low Battery
LED
Flashes
while
recharging
RF Transmit (Green
LED)
RF Acknowledge
from receiver
(Green / Red
LED)
Fully
Charged
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS TAURUS
Summary of Contents for RF SOLUTIONS TAURUS
- Page 1 Press any of the switches to operate. LED) The Transmitter will auto sleep between operations to save power. RF Transmit GREEN LED operates when Taurus is transmitting an RF signal. RF Acknowledge RF Acknowledge (if configured): from receiver GREEN LED...
- Page 2 The Following Modes can be configured using the SET Switch RF Mode of Transmission (FM or LORA Mode) Acknowledgement back from the Receiver Automatic Watchdog Transmissions Continuous or State Change Transmission TAURUS Transmitters are factory Shipped with the following Settings RF Transmission Acknowledgment Watchdog Transmission Type...
- Page 3 Configuring TAURUS Transmitters To Set the RF Transmission MODE Press SET Sw This sets the type of RF Transmission. Possible options are FM, or LORA Modes 0 - 7. FM or LORA mode 0 provides the LED1 quickest response; from Transmitter SW flashes pressed to Receiver Relay output.
- Page 4 Configuring TAURUS Transmitters To Set Continuous or State Change RF Transmissions Press SET Sw When a switch button is operated, TAURUS will transmit a “Button Down” RF Transmission. When a switch button is released, TAURUS will transmit a “Button Up” RF Transmission.
- Page 5 Configuring TAURUS Transmitters RF Transmitting / LED Status Acknowledgment Acknowledgment Failed Continuous Transmission Acknowledgement OFF Operation GREEN LED RED LED Button is briefly pressed Flashes briefly No-operation Button is held Down Flashes constantly No-operation Button is released Flashes briefly No-operation...
- Page 6 To Set Acknowledgement Request Acknowledgement Feature provides the user with Press SET Sw LED indication that the receiver has successfully received the transmitters signal. When activated the TAURUS Transmitter includes an acknowledgement request within each radio LED1 transmission. flashes 2x The response from the receiver is indicated on the transmitter via the RED / GREEN LEDs.
- Page 7 Configuring TAURUS Transmitters To Set Watchdog Transmissions If enabled, TAURUS automatically transmits a Press SET Sw background “watchdog” RF Signal approx. every ~45 secs, RF Solutions Receivers with a Watchdog feature will hold a Relay contact “ENERGISED” as long as Watchdog is regularly received...
- Page 8 RF Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of how to deploy or u se RF Solutions Ltd’s products.
