Rugged RF Transmitter Handset
•
Supplied "Ready to Go"
•
1 - 16 Switches
•
868 / 918MHz Versions
•
FM / LoRa Technology
•
Range:
•
LORA Mode 7 upto 20Km
•
FM Operation upto 2Km
•
Waterproof IP66
•
Compatible with RF Solutions
•
Receivers
Internal Lithium Battery 1AH
•
Wireless Rechargeable
•
Displays Acknowledge from Receiver
•
Watchdog Transmit Feature
•
Continuous or State Change Transmit
•
CE Compliant
•
FCC & Australian Certification Pending
•
Description
A rugged Remote Transmitter which can be used with one of the RF Solutions receiv-
ers to generate a long Range Remote Control System. The Transmitter may be user
configured to operate in several Modes of operation, providing shorter or longer range
and with optional Acknowledge indication back from the receiver.

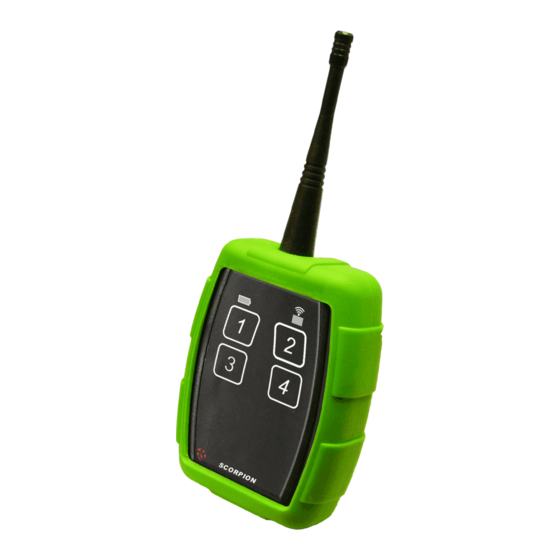

Supplied ready to go the SCORPION Transmitter is a sealed waterproof enclosure with
fixed internal Lithium Battery, which is recharged using standard QI wireless charger
base.
FM/LoRa Hand Held Transmitter
DS-SCORPION-1
SCORPION
Applications
Industrial , conveyors,
•
machinery, pumps etc
General Purpose Remote
•
Switching
M2M Control Switching
•
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS SCORPION Series
Summary of Contents for RF SOLUTIONS SCORPION Series
- Page 1 • Description A rugged Remote Transmitter which can be used with one of the RF Solutions receiv- ers to generate a long Range Remote Control System. The Transmitter may be user configured to operate in several Modes of operation, providing shorter or longer range and with optional Acknowledge indication back from the receiver.
-
Page 2: Part Numbers
SCORPION LoRa Transmitter Part Numbers Transmitter 868MHz (Europe) 915MHz (USA, Aus, UK) 1 Switch SCORPION-8TW1 SCORPION-9TW1 4 Switch SCORPION-8TW4 SCORPION-9TW4 8/16 Switch SCORPION-8TW16 SCORPION-9TW16 Mechanical Dimensions (All dimensions in mm) DS-SCORPION-1 Page 2... -
Page 3: Compatible Receivers
SCORPION LoRa Transmitter Optional Accessory - Wireless Charging Cradle WCHARGECRADLE A folding Desktop Wireless charger that can be used flat or cradle supplied with USB Cable Compatible Receivers Scorpion Transmitters are PRO Series Receiver Units IP65 Receiver with DIN Rail Modules 4, 8, 16 Channels Changeover Contacts expandable to 250 using add-on Relay modules 110-230Vac or 12-30Vdc supply... -
Page 4: Operation
SCORPION LoRa Transmitter Operation Press any of the switches to operate. The Transmitter will auto sleep between operations to save power The LED’s indicate the following: RF Transmit RF Transmit GREEN LED operates when transmitting an RF (Green LED) signal Battery RF Acknowledge From Receiver... - Page 5 SCORPION LoRa Transmitter Antenna LED2 Configuring Modes of Operation LED1 LED3 Flashes To configure the modes of operation, undo the constantly six enclosure fixing screws to access the inter- in setup nal circuit board. The SET switch is used to configure the operat- ing modes Switch Note: please also see the Video on our website!
- Page 6 SCORPION LoRa Transmitter To Set the RF Transmission MODE This sets the type of RF Transmission. Press SET Sw Possible options are FM, or LORA Modes 0 - 7 FM or LORA mode 0 provides the quickest re- sponse; from Transmitter sw pressed to Re- ceiver Relay output.
- Page 7 SCORPION LoRa Transmitter To Set Acknowledgement Request Acknowledgement Feature provides the user with Press SET Sw LED indication that the receiver has successfully re- ceived the transmitters signal. When activated the SCORPION Transmitter includes an acknowledgement request from the receiver with- in each radio transmission.
- Page 8 Press SET Sw background “watchdog” RF Signal approx. every ~45 secs, RF Solutions Receivers with a Watchdog feature wil hold a Relay contact “ENERGISED” as long as Watchdog is regularly received confirming the transmitter is in range and the system is operating correctly.
- Page 9 SCORPION LoRa Transmitter To Set Continuous or State Change RF Transmissions When a switch button is operated SCORPION will Press SET Sw transmit a “Button Down” RF Transmission When a switch button is released SCORPION will transmit a “Button Up” RF Transmission Continuous Transmit SCORPION repeat transmits “button Down”...
-
Page 10: Led Status
SCORPION LoRa Transmitter LED Status RF Transmitting & Continuous Transmission Acknowledgment OK Acknowledgement OFF Operation GREEN LED RED LED Acknowedgment Failed Button is briefly pressed Flashes briefly No-operation Button is held Down Flashes continually No-operation Button is released Flashes briefly No-operation Continuous Transmission Acknowledgement ON... -
