Operation

Press any of the switches to operate. The Transmitter will auto sleep between operations to
save power. The LED's indicate the following:
RF Transmit
The
GREEN
LED operates when transmitting an RF signal.
RF Acknowledge (if configured):
After RF Transmission if acknowledge is configured the
speed to indicate that an acknowledgment has successfully been received back form
the receiver.
The
RED
LED will Flash at high speed to indicate that an acknowledgment has not been
received back from the receiver.
Low Battery:
Low Battery LED illuminates for 3 seconds after each operation.
Low
Battery

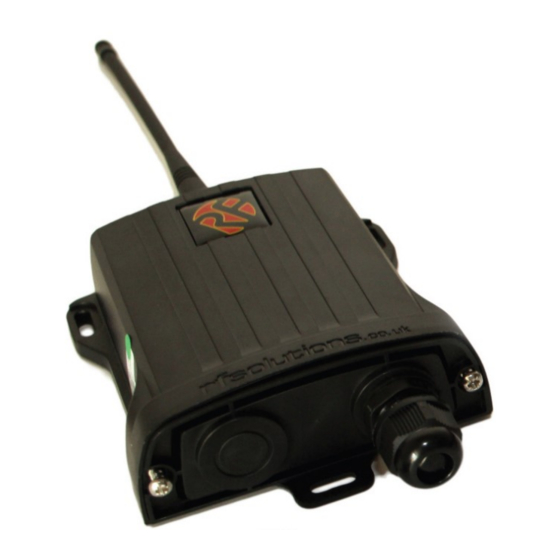

QS-TRAPTX-1
TRAP Transmitter
Quick Start Guide

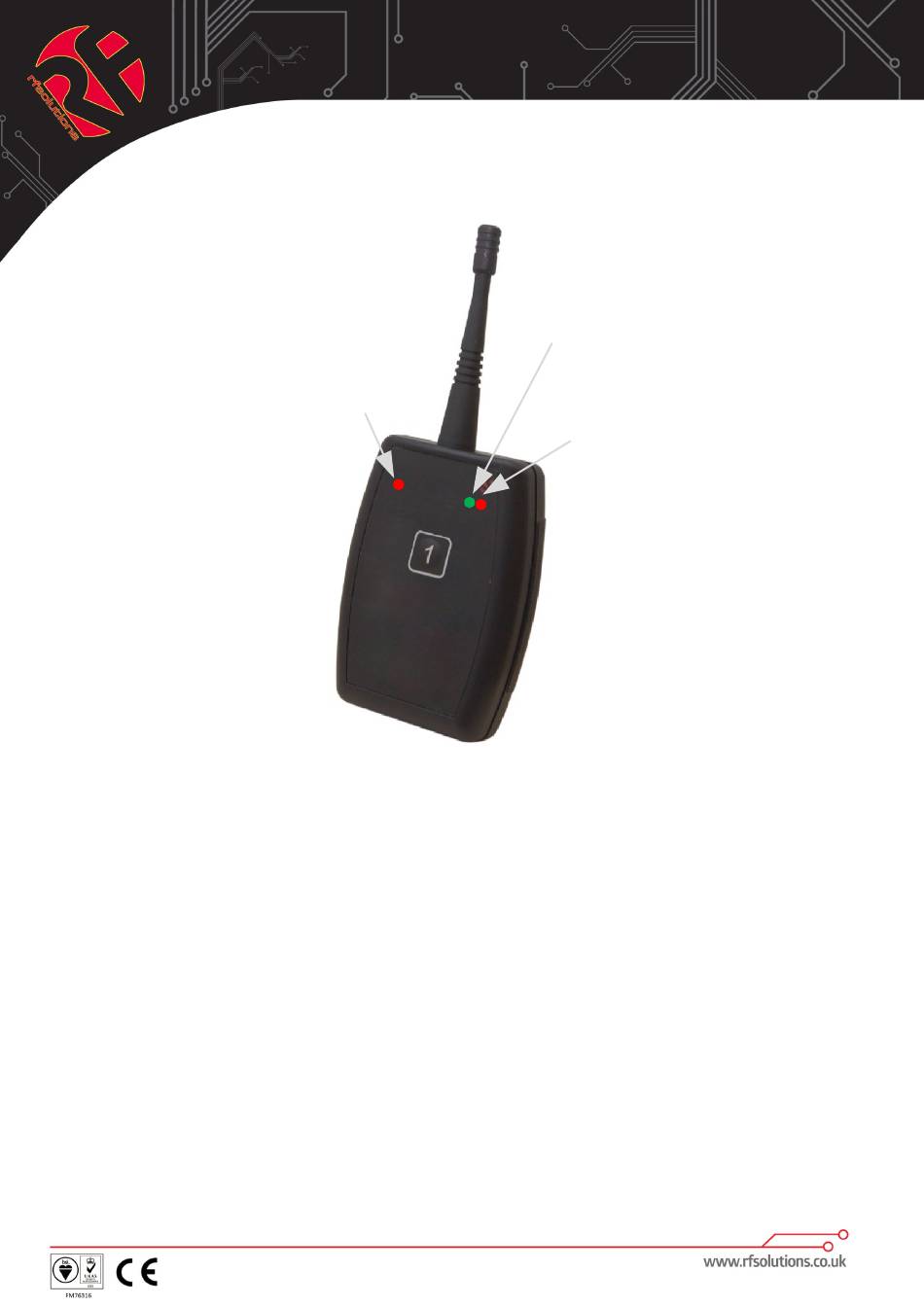

RF Transmit
(Green LED)
RF Acknowledge
From Receiver
(Green / Red LED)
GREEN
LED will Flash at high
