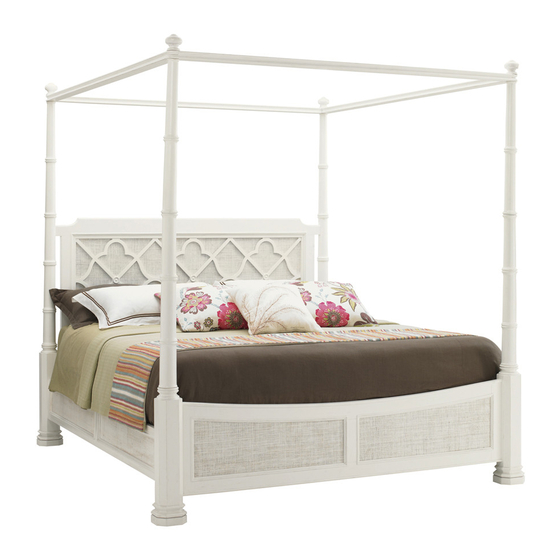

LEXINGTON 543-173C Assembly Instructions

Finial
Canopy
Option
Low Post
Option
HB Low Post
Transition
Block
Low Post
Option
FB Low Post
Transition
Block

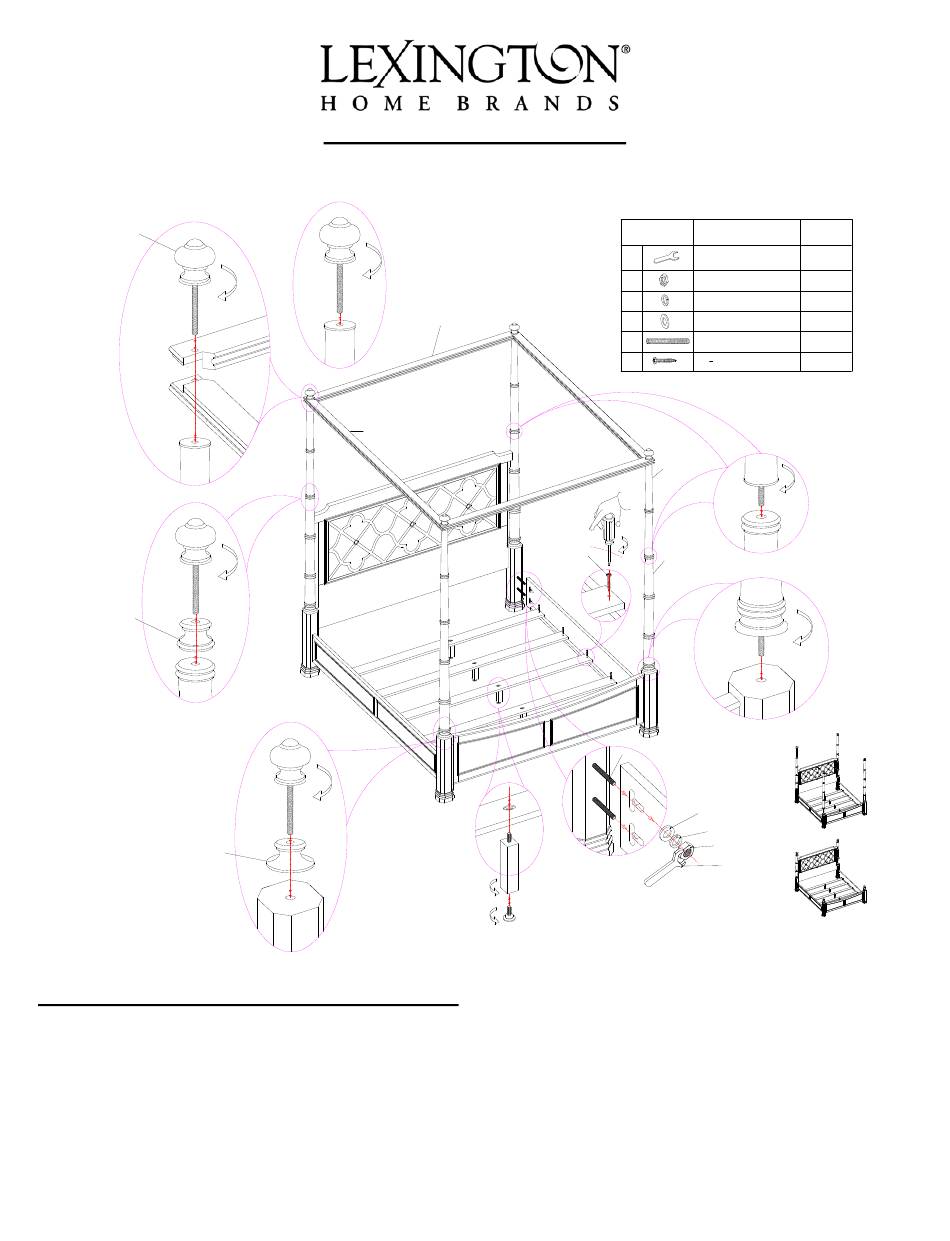

How to Attach Side Rails to Headboard/Footboard

* All needed hardware is located in a hardware bag which should be taped to inside of side rail.
1. Insert threaded rod (E) into metal dowel in post thru open hole. Twist clockwise until tight.
2. With both threaded rods in place, and side rail positioned with T-slots to inside, slide side rail over threaded
rods.
3. Add flat washer (D) and lock washer (C) to threaded rod (E).
4. Add hex nut (B) with barrel end towards washer.
5. Tighten nut with wrench (A) until tight. Repeat process for other three corners
ASSEMBLY INSTRUCTIONS
543-173C/174C/175C Southampton Poster/Canopy Bed
Long Canopy
For additional consumer assistance, please contact your Lexington dealer or call our
Consumer Services Department at 1-336-474-5300, Monday-Friday, 8-5 Eastern
High Post
Option
Short Canopy
F
Revised 07/26/13
PART

HARDWARE LIST

WRENCH
A
B HEX NUT
LOCK WASHER
C
D
FLAT WASHER
E
THREADED ROD
1
F 1 " SCREW
2
Upper
Foot Post
Section
Lower Foot
Post Section
E
D
C
B
A
QTY
1 PC
8 PCS
8 PCS
8 PCS
8 PCS
8 PCS
High Post or
Canopy Option
High Post
Option
Low Post
Option
Page 1 of 2
