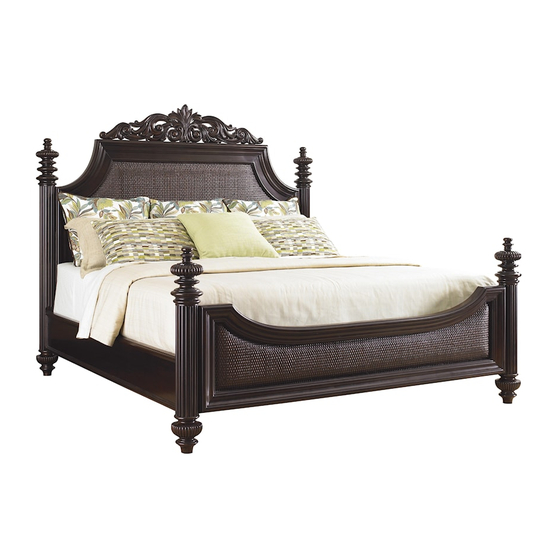

LEXINGTON 537-133C Assembly Instructions

X
OPEN
X OPEN
OPEN X OPEN X
X X
OPEN OPEN X
OPEN
X
OPEN X OPEN X OPEN

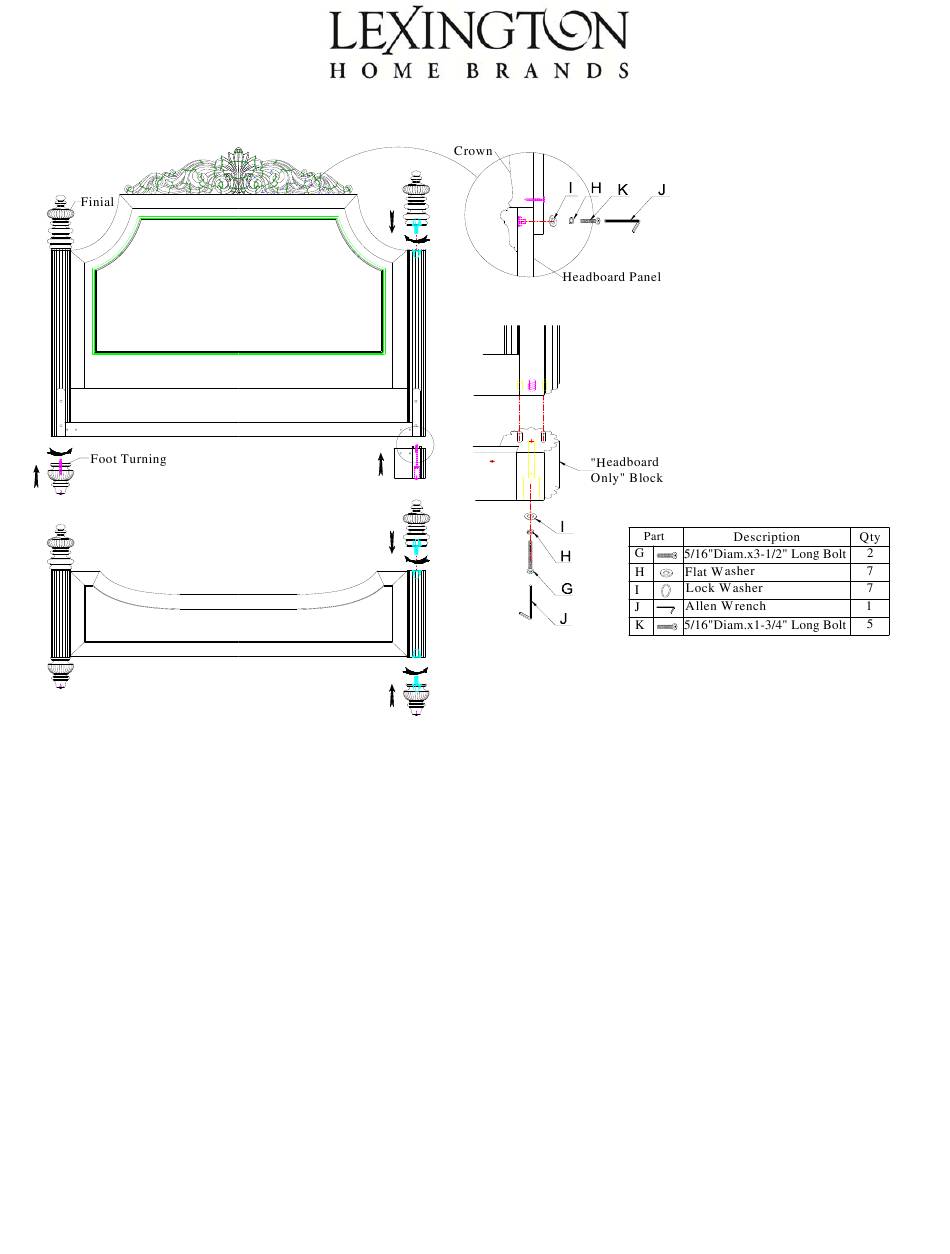

To Assemble Bed as "Headboard Only":
1. Place headboard on its back on flat, non-marred surface.
2. Use Locator Pins to position "Headboard Only" Block on bottom of headboard.
3. Use Allen Wrench (J) to attach "Headboard Only" Block to headboard with (1) of each: Lock Washer (I), Flat Washer (H), and 3-1/2" Long
Bolt (G). Fully tighten bolt.
4. Repeat Steps 2 and 3 for "Headboard Only" Block on the other end of bottom of headboard.
5. Follow directions included with bed frame to attach frame to headboard.
6. Insert bolted end of Finials into top of all (4) posts. Twist Finials clockwise until tight.

To Assemble Bed Using Headboard, Footboard, and Side Rails:

1. Insert bolted end of Feet Turnings into both bottom corners of headboard and of footboard. (Headboard feet have smaller bolts and
Footboard feet have larger bolts.) Twist Feet Turnings clockwise until tight.
2. Follow directions on next page to attach side rails to bed.
3. Insert bolted end of Finials into top of all (4) posts. Twist Finials clockwise until tight.

To Attach Crown to Headboard Panel:

1. Position Crown on top of Headboard Panel so that Crown is centered and holes in Crown align with holes in Headboard Panel. Front of
Crown should face same direction as front of headboard.
2. Use Allen Wrench (J) to attach Crown to Headboard Panel with (5) of each: Lock Washers (I), Flat Washers (H), and 1-3/4" Long Bolts.
Fully tighten all bolts.
ASSEMBLY INSTRUCTIONS
537-133C/134C/135C Panel Bed
OPEN X
X
OPEN
X
OPEN
X
OPEN
X
OPEN
OPEN X
Revised 03/30/12
