PART
HARDWARE LIST
WRENCH
A
B
HEX NUT
LOCK WASHER
C
D
FLAT WASHER
E
THREADED ROD
1
F
1
" SCREW
2
-
Insert bolted end of foot into bottom of each post on headboard and footboard. Twist each foot
clockwise until tight.
-
Insert bolted end of finial into top of each post on headboard and footboard. Twist each finial clockwise
until tight.
How to Attach Side Rails to Headboard/Footboard
* All needed hardware is located in a hardware bag which should be taped to inside of side rail.
1. Insert threaded rod (E) into metal dowel in post thru open hole. Twist clockwise until tight.
2. With both threaded rods in place, and side rail positioned with T-slots to inside, slide side rail over threaded rods.
3. Add flat washer (D) and lock washer (C) to threaded rod (E).
4. Add hex nut (B) with barrel end towards washer.
5. Tighten nut with wrench (A) until tight. Repeat process for other three corners.
ASSEMBLY INSTRUCTIONS

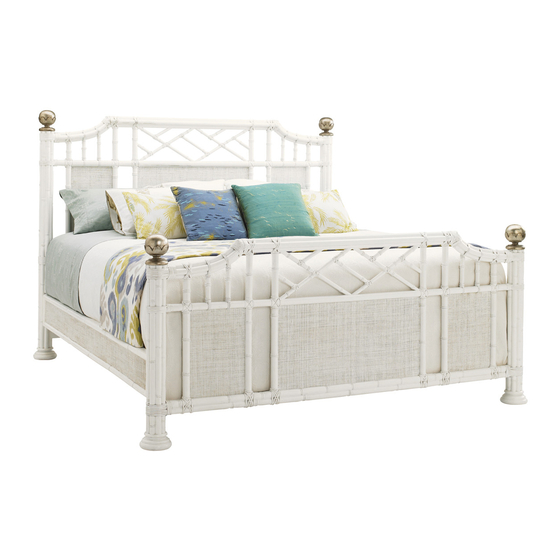

543-133C/134C/135C Rattan Panel Bed
QTY
1 PC
8 PCS
8 PCS
8 PCS
8 PCS
8 PCS
E
D
C
B
A
F
12/11/12
