LEXINGTON 911-133C Assembly Instructions

Headboard (1)
Side Rail (2)
How to Attach Side Rails to Headboard/Footboard
* All needed hardware is located in a hardware bag which should be taped to inside of side rail.
** NOTE: SIDE RAILS ARE IN PAIRS. When assembling, make sure that the left sticker ("L") on the side
rail matches the corresponding "L" sticker on the footboard. Do the same for the "R" sticker on the right side
rail and the "R" sticker on the footboard.
1. Insert threaded rod (A) into metal dowel in post thru open hole. Twist clockwise until tight.
2. With both threaded rods in place, and side rail positioned with T-slots to inside, slide side rail over threaded
rods.
3. Add flat washer (B) and hex nut (C) with barrel end towards washer to threaded rod (A).
4. Tighten nut with wrench (D) until tight. Repeat process for other three corners.
ASSEMBLY INSTRUCTIONS

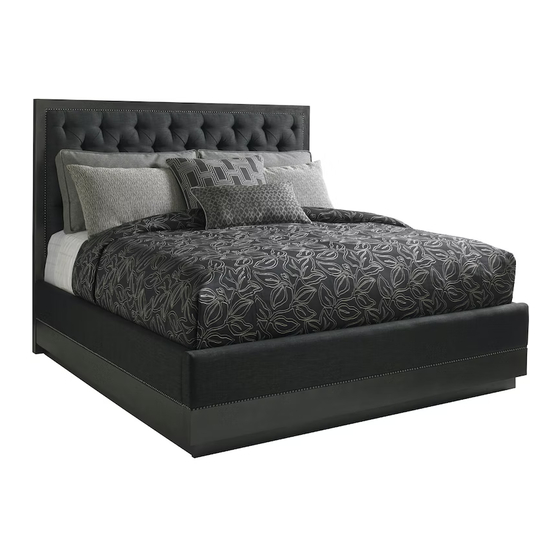

911-133C/134C/135C Upholstered Bed
Slat (4)
HARDWARE LIST
PART DESCRIPTION
A
Threaded Rod
B
Square Flat Washer
C Nut
D
Wrench
E
Screw
F
Center Support Leg
Revised 07/30/14
QTY
8
8
8
1
8
4
Footboard (1)
