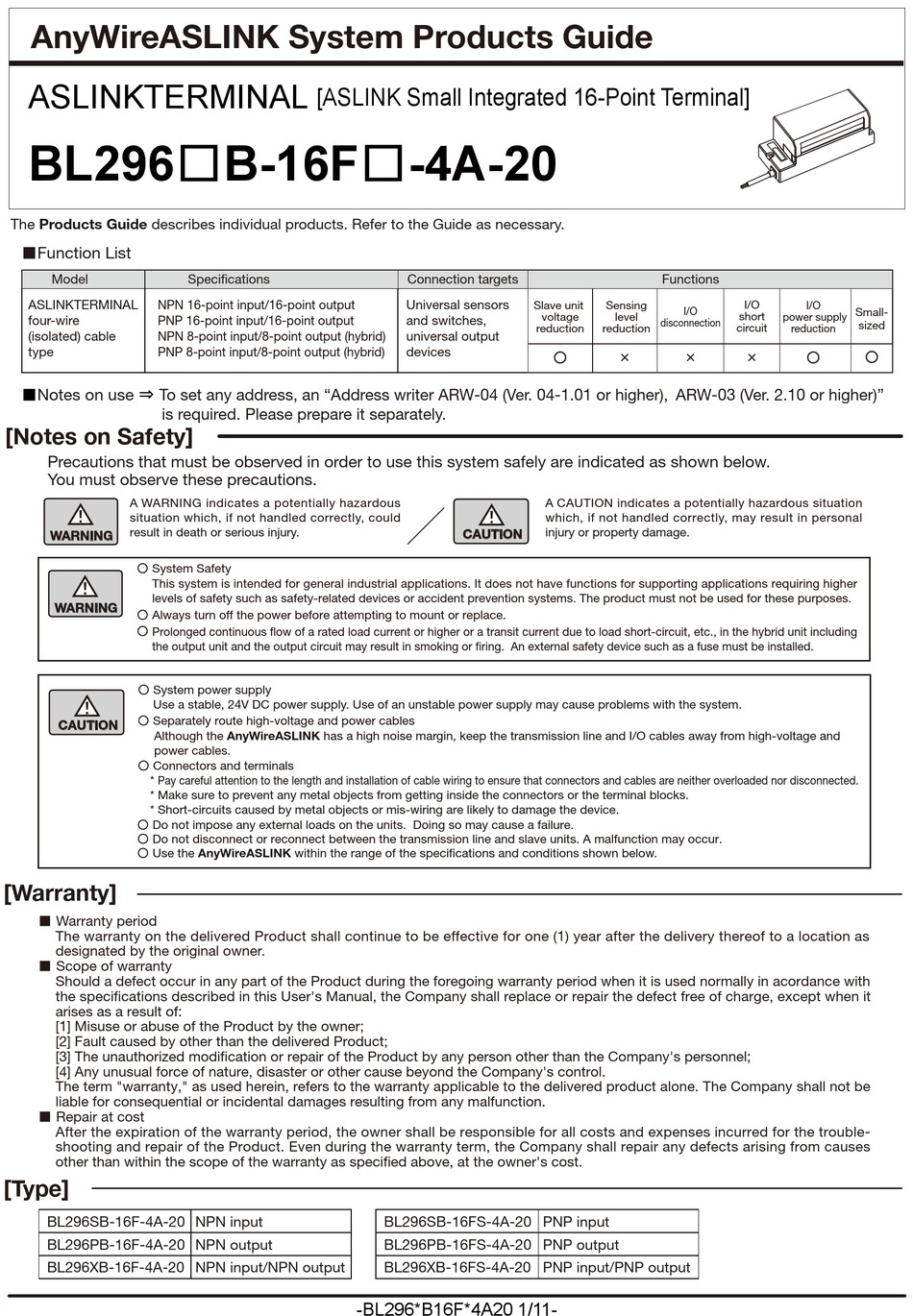

AnyWireASLINK System Products Guide
ASLINKTERMINAL
BL296□B-16F□-4A-20
The Products Guide describes individual products. Refer to the Guide as necessary.
■Function List  
Model
ASLINKTERMINAL
NPN 16-point input/16-point output
four-wire
PNP 16-point input/16-point output
(isolated) cable
NPN 8-point input/8-point output (hybrid)
type
PNP 8-point input/8-point output (hybrid)
■Notes on use
To set any address, an "Address writer ARW-04 (Ver. 04-1.01 or higher), ARW-03 (Ver. 2.10 or higher)"
is required. Please prepare it separately.
[Notes on Safety]
Precautions that must be observed in order to use this system safely are indicated as shown below.
You must observe these precautions.
A WARNING indicates a potentially hazardous
situation which, if not handled correctly, could
result in death or serious injury.
WARNING
○ System Safety
This system is intended for general industrial applications. It does not have functions for supporting applications requiring higher
levels of safety such as safety-related devices or accident prevention systems. The product must not be used for these purposes.
WARNING
○ Always turn off the power before attempting to mount or replace.
○ Prolonged continuous ow of a rated load current or higher or a transit current due to load short-circuit, etc., in the hybrid unit including
the output unit and the output circuit may result in smoking or ring. An external safety device such as a fuse must be installed.
○ System power supply
Use a stable, 24V DC power supply. Use of an unstable power supply may cause problems with the system.
○ Separately route high-voltage and power cables
CAUTION
Although the AnyWireASLINK has a high noise margin, keep the transmission line and I/O cables away from high-voltage and
power cables.
○ Connectors and terminals
* Pay careful attention to the length and installation of cable wiring to ensure that connectors and cables are neither overloaded nor disconnected.
* Make sure to prevent any metal objects from getting inside the connectors or the terminal blocks.
* Short-circuits caused by metal objects or mis-wiring are likely to damage the device.
○ Do not impose any external loads on the units. Doing so may cause a failure.
○ Do not disconnect or reconnect between the transmission line and slave units. A malfunction may occur.
○ Use the AnyWireASLINK within the range of the speci cations and conditions shown below.
[Warranty]
■ Warranty period
The warranty on the delivered Product shall continue to be effective for one (1) year after the delivery thereof to a location as
designated by the original owner.
■ Scope of warranty
Should a defect occur in any part of the Product during the foregoing warranty period when it is used normally in acordance with
the speci cations described in this User's Manual, the Company shall replace or repair the defect free of charge, except when it
arises as a result of:
[1] Misuse or abuse of the Product by the owner;
[2] Fault caused by other than the delivered Product;
[3] The unauthorized modi cation or repair of the Product by any person other than the Company's personnel;
[4] Any unusual force of nature, disaster or other cause beyond the Company's control.
The term "warranty," as used herein, refers to the warranty applicable to the delivered product alone. The Company shall not be
liable for consequential or incidental damages resulting from any malfunction.
■ Repair at cost
After the expiration of the warranty period, the owner shall be responsible for all costs and expenses incurred for the trouble-
shooting and repair of the Product. Even during the warranty term, the Company shall repair any defects arising from causes
other than within the scope of the warranty as speci ed above, at the owner's cost.
[Type]
BL296SB-16F-4A-20
BL296PB-16F-4A-20
BL296XB-16F-4A-20
[ASLINK Small Integrated 16-Point Terminal]
Speci cations
NPN input
NPN output
NPN input/NPN output
-BL296*B16F*4A20 1/11-
Connection targets
Universal sensors
Slave unit
voltage
and switches,
reduction
universal output
devices
A CAUTION indicates a potentially hazardous situation
which, if not handled correctly, may result in personal
injury or property damage.
CAUTION
BL296SB-16FS-4A-20
PNP input
BL296PB-16FS-4A-20
PNP output
BL296XB-16FS-4A-20
PNP input/PNP output
Functions
Sensing
I/O
I/O
level
short
disconnection
circuit
reduction
×
×
×
I/O
Small-
power supply
sized
reduction

Advertisement

loading
Need help?

Need help?

Do you have a question about the BL296 B-16F Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Anywire BL296 B-16F Series

  • Page 1 AnyWireASLINK System Products Guide ASLINKTERMINAL [ASLINK Small Integrated 16-Point Terminal] BL296□B-16F□-4A-20 The Products Guide describes individual products. Refer to the Guide as necessary. ■Function List   Model Speci cations Connection targets Functions ASLINKTERMINAL NPN 16-point input/16-point output Universal sensors Slave unit Sensing Small- voltage...
  • Page 2 [How to connect AnyWireASLINK] The AnyWireASLINK can employ a two-wire or four-wire terminal selectively depending on the load current. This Products Guide describes a four-wire (isolated) terminal. If the load current is small, using a two-wire (non-isolated) terminal allows for achieving simpli ed wiring without local power supply. In the case of prioritizing the sites of concentrated loads and/or the number of connections, hybridization with a four-wire (isolated) terminal, which supports local power supply, is also possible.
  • Page 3 ■Filter allowable power current Model Type Allowable power current ASLINK lter ANF-01 MAX 5A/24V DC Filter of COSEL Co., Ltd. EAC-06-472 MAX 6A/24V DC ■AnyWire Type: ANF-01 Connection example ①Power supply to the entire system 2-wire 4-wire 4-wire terminal terminal terminal...
  • Page 4 ■COSEL Co., Ltd. Type: EAC-06-472 Connection example ①Power supply to the entire system 2-wire 4-wire 4-wire terminal terminal terminal AnyWireASLINK master LOAD LINE EAC-06-472 If any of the side-by-side lines of DP, DN, 24V and 0V exceeds the total length of 50m General-purpose power supply lter (Use it if necessary.)
  • Page 5 - The address number to be set to the terminal is for correspondence to the input/output memory map of the controller. This address number is the assigned rst position in the AnyWire input/output transmission frame (0 to 255). In the terminal, 16 points (input or output) or 8 points (input/output mixed) are occupied after this number.
  • Page 6 [Name of each part] Common to all models Setting port e-CON-compliant 4P socket Black : DN Red : DP White : 0V Green : 24V LED display Transmission line [Connection] ■ Pin layout 1 : 24V BL296SB-16F-4A-20 2 : N.C BL296SB-16FS-4A-20 3 :...
  • Page 7 [Indication Function] Normal state: LINK ashing, ALM off, I/O ON on/OFF off LED indication unit LED symbol Indication status Detailed states Transmission error Flashing Normal LINK DP/DN disconnected or no power supply I/O voltage reduction LINK LINK OUT 0 I/O 8 IN 0 I/O 0 Slave unit voltage reduction...
  • Page 8 0V(3) [Ex.] 0V (White) Use with the common value set at 0V. 4-wire (insulated) ASLINK terminal Load by external type (AnyWire series power supply) power supply 4-wire (insulated) NPN output BL296SB-16F-4A-20 BL296XB-16F-4A-20 (Output side) In the case of an 24V(1)...
  • Page 9 DN (black) 0V(3) [Ex.] 0V (White) Use with the common value set at 0V. 4-wire (insulated) ASLINK terminal Load by external type (AnyWire series power supply) power supply 4-wire (insulated) NPN output BL296SB-16FS-4A-20 BL296XB-16FS-4A-20 (Output side) <Circuit conditions> 24V (Green)
  • Page 10 [Specifications] ■General Speci cations ■Individual Speci cations Ambient temperature use 0 - +55℃ Number of BL296SB-16F-4A-20 Input 16 point Ambient humidity use 10 - 90%RH No condensation BL296XB-16F-4A-20 Input 8 point, Output 8 point occupied BL296PB-16F-4A-20 Output 16 point Temperature/humidity storage -25 - +75℃...
  • Page 11 [Address] Anywire Corporation Headquarters :1 Babazusho, Nagaokakyo-shi, Kyoto 617-8550 JAPAN Contact :Contact by mail info_e@anywire.jp :Contact by website http://www.anywire.jp Printed in Japan 2016,2017 UMA-13221C-EN -BL296*B16F*4A20 11/11-...
