Anywire ASLINKAMP L-A1AW Series Product Manual

Anywireaslink system, analog input unit ch insulated type with 7-segment

Advertisement

Quick Links

AnyWireASLINK System Products Guide
ASLINKAMP
[Analog Input Unit (CH insulated type with 7-segment)]
L□-A1AW
[Notes on Safety]
Precautions that must be observed in order to use this system safely are
indicated as shown below. You must observe these precautions.
A WARNING indicates a potentially hazardous situation which, if not
WARNING
handled correctly, could result in death or serious injury.
A CAUTION indicates a potentially hazardous situation which, if not
CAUTION
handled correctly, may result in personal injury or property damage.
○ System Safety
WARNING
This system is intended for general industrial applications. It does not
have functions for supporting applications requiring higher levels of safety
such as safety-related devices or accident prevention systems.
○ Always turn off the system power before attempting to mount or replace.
○ Prolonged continuous ow of a rated load current or higher or a transit
current due to load short-circuit or similar problem, in the hybrid unit
including the output unit and the output circuit may result in smoke
generation or re. An external safety device such as a fuse must be
installed.
○ System power supply
CAUTION
Use a stabilized 24V DC power supply. Use of a non-stabilized power
supply may cause problems with the system.
○ Separately route high-voltage and power cables
Although the AnyWireASLINK has a high noise margin, lay the
transmission lines and I/O cables so as to keep them away from
high-voltage and power cables.
○ Connectors and terminals
・ Pay careful attention to the length and installation of cable wiring to
e n s u r e t h a t c o n n e c t o r s a n d c a b l e s a r e n e i t h e r s t r e s s e d n o r
disconnected even if they are stressed.
・ Make sure to prevent any metal objects from getting inside the
connectors or the terminal blocks.
・ Short-circuits caused by metal objects or mis-wiring are likely to
damage the device.
○ Do not impose any external loads on the units.
Doing so may cause a failure.
○ Do not disconnect or reconnect between the transmission line and slave
units when a transmission line is operating.
A malfunction may occur.
○ Use the AnyWireASLINK within the range of the speci cations and
conditions shown below.
[Warranty]
■ Warranty period
The warranty on the delivered Product shall continue to be effective for one (1)
year after the delivery thereof to a location as designated by the original owner.
■ Scope of warranty
Should a defect occur in any part of the Product during the foregoing warranty
period when it is used normally in accordance with the speci cations described
in this User's Manual, the Company shall replace or repair the defect free of
charge, except when it arises as a result of:
[1] Misuse or abuse of the Product by the owner;
[2] Fault caused by cause other than the delivered Product;
[3] Unauthorized modi cation or repair of the Product by any party other than
the Company;
[4] Any unusual force of nature, disaster, or other cause beyond the Company's
control.
The term "warranty," as used herein, refers to the warranty applicable to the
delivered product alone. The Company shall not be liable for any damages
consequential or incidental to a malfunction of the delivered product.
■ Repair at cost
After the expiration of the warranty period, any troubleshooting or repairs shall
be done at the expense of the owner.
Even during the warranty term, any repairs and troubleshooting for defects
arising from causes outside the scope of the warranty as speci ed above shall
be done at the owner's expense.
[Type]
Bit operation
Analog input unit
LA-A1AW
(CH insulated type
LB-A1AW
with 7-segment)
1CH (Base unit)
1CH (Extension unit)
-L*A1AW 1/11-
[Function]
Model
ASLINKAMP
CH insulated
Insulated
Measurement
Voltage: 0-10V, 0-5V, 1-5V
input range
Current: 4-20 mA, 0-20 mA
Resolution
1/16000
Input speci cations setting
Reference point shift mode
Functions
Average number of moving times
Address/parameter automatic setting (Base unit only)
Miniature
[Included items]
LA-A1AW (Base)
LB-A1AW (Extension)

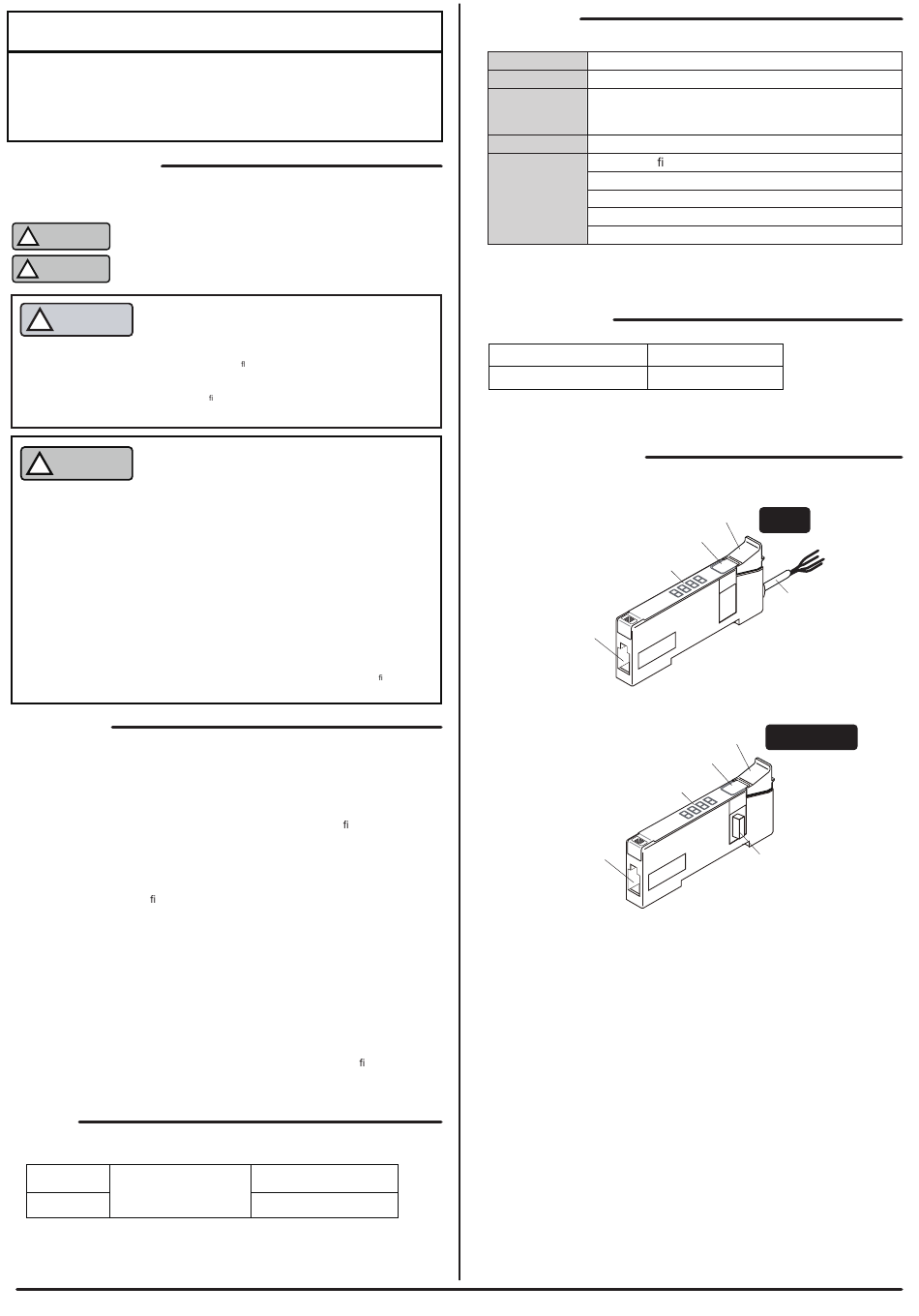

[Name of each part]
7-segment display
Analog port
e-CON (3P)
7-segment display
Analog port
e-CON (3P)
Base unit ...1
Base unit ...1
Protective cover
Base
LED display
Transmission line
Extension
Protective cover
LED display
Expansion connector

Advertisement

loading
Need help?

Need help?

Do you have a question about the ASLINKAMP L-A1AW Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Anywire ASLINKAMP L-A1AW Series

  • Page 1 [Function] AnyWireASLINK System Products Guide Model ASLINKAMP ASLINKAMP CH insulated Insulated [Analog Input Unit (CH insulated type with 7-segment)] Measurement Voltage: 0-10V, 0-5V, 1-5V L□-A1AW input range Current: 4-20 mA, 0-20 mA Resolution 1/16000 Input speci cations setting [Notes on Safety] Reference point shift mode Precautions that must be observed in order to use this system safely are Functions...
  • Page 2 [How to connect AnyWireASLINK] ■Example of mixture of two-wire (non-isolated) and four-wire (isolated) terminals You can select use of either a two-wire or four-wire terminal for the AnyWireASLINK according to the load current. This Products Guide describes a two-wire (non-isolated) terminal. Red: DP Red: DP If the load current is small, using a two-wire (non-isolated) terminal allows for achieving...
  • Page 3 MAX 5A/24V DC the total length of 50m Filter of COSEL Co., Ltd. EAC-06-472 MAX 6A/24V DC Four-wire terminal Two-wire ■AnyWire Type: ANF-01 Connection example terminal ①Power supply to the entire system 24V DC Two-wire AnyWireASLINK master General-purpose stabilized power supply filter...
  • Page 4 [Notes on Combined Use with Four-Wire (Isolated) Terminals] ②Local power supply/branching * When using this lter, please be careful of the positions of ■COSEL Co., Ltd. Type: EAC-06-472 Connection example LOAD and LINE. ①Power supply to the entire system AnyWireASLINK master * When using this lter, please be careful of the positions of LOAD and LINE.
  • Page 5 [Installation] [Expansion] The installation and removal methods are the same for both the base An extension unit or power supply unit can be extended to a base unit unit and the extension unit. for this analog input unit. Remove the connector cover of the base unit and connect the Base Extension extension unit with a built-in extension connector.
  • Page 6 [Insulation between Channels] Example that a power supply unit is not used) When connecting only the analog input, use it to LA-A1AW and LB-A1AW by connecting as it is. Master unit When 24V supply is required for the analog output device, connect a dedicated power supply unit (LB-S24) next to each unit and then perform extension.
  • Page 7: Parameter Setting

    The parameter is automatically re ected to extension units extended from the base unit. Before shipment: 0 AnyWire address When this automatic setting mode becomes available (value 1, 2, 3), the address or parameter set to the base unit is automatically assigned to Input extension units.
  • Page 8 ■Reference point shift mode ■When using the reference point shift mode This is a function to adjust an offset error between the connected analog output device and this analog input unit. LINK LINK Shift the reference point by a set reference point adjustment value. Displaying the input measurement value - Address writer (ARW-04, ARW-03): Parameter 02...
  • Page 9: Segment Display

    [Monitor display] Displays the operation status of this product using the Over the upper limit of LINK LINK LEDs. the input value LED display The display part is common in both the base unit and extension unit. LINK Normal status: LINK Flashing, ALM OFF, V/mA OFF Name Indication status Details :...
  • Page 10: Extension Connector

    [Example of Data Characteristics] [Parameters and items] Over the 16200 Parameter Item Parameter variable 0 ~ 10V number upper limit 16000 value Input 0 - 10V input speci cations 0 - 5V input setting 1 - 5V input Before 0 - 20 mA input shipment: 0 4 - 20 mA input Reference point shift mode OFF...
  • Page 11 [Speci cations] [Outside Dimensions] Unit: mm (Base unit) ■LA-A1AW ■General Speci cations 36.7 0 - 55°C, 10 - 90%RH (No condensation) Ambient temperature/humidity for use Ambient temperature/humidity for storage -25 - 75°C, 10 - 90%RH (No condensation) Atmosphere for use No corrosive gas Transmission line 0 to 2000m...
  • Page 12 [Address] Anywire Corporation Headquarters :1 Babazusho, Nagaokakyo-shi, Kyoto 617-8550 JAPAN Contact :Contact by mail info_e@anywire.jp :Contact by website http://www.anywire.jp Printed in Japan 2016, 2017 UMA-13311C-EN -L*A1AW 12/12-...
