Page 1

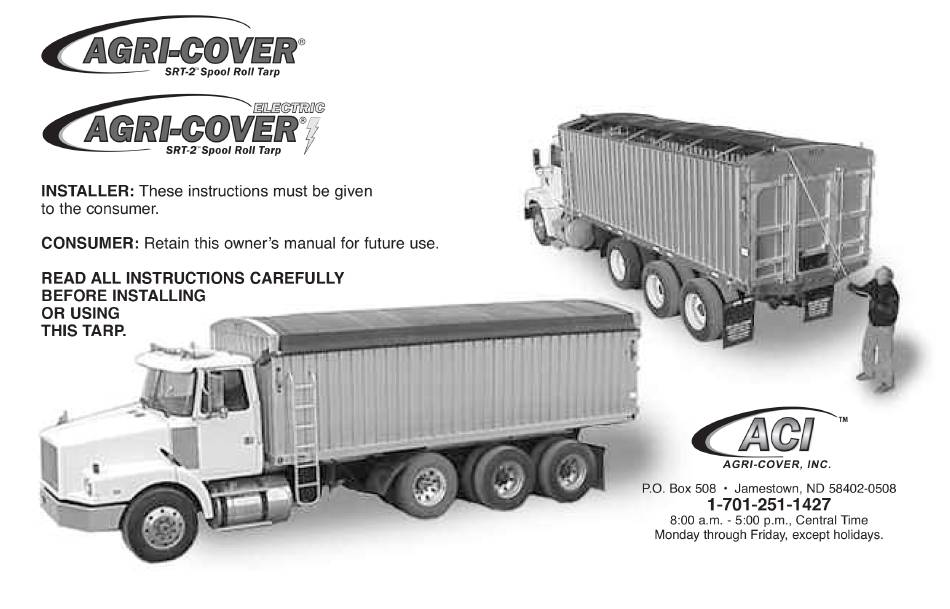

SRT-2 HAND AND ELECTRIC INSTALLATION ® INSTRUCTIONS AND OWNERS MANUAL To view an installation video of an SRT-2 tarp - visit www.agricover.com/rolltarps/videos/...
A. WEATHER SEAL Note: Some kits do not include weather seal, if weather seal is not included in kit procede to step 1B. Clean underside of cap for adhering weather seal. Repeat on each end of front and rear end cap.
INSTALLATION INSTRUCTIONS STEP 3: QUICK RELEASE TARP BRACKETS A. QUICK RELEASE TARP STOP These brackets secure the 1/4” stationary side of the tarp to the box. For normal applications, place brackets on PASSENGER side of box. For reverse roll, place brackets on DRIVER side of the Clevis Pins box.
Page 13
B. QUICK RELEASE BRACKETS Position these brackets evenly between front and rear tarp stops. See “EXAMPLE” below and Illustration 9. Then assemble quick release bracket with lower clevis pin and bow tie pin. Use (2) 3/8” x 1” self thread screws - drill 5/16”...
Page 16
A. FRONT SPOOL (BLACK) Is marked with an L (left) to match with black (unpainted) spring and black (unpainted) end of roll tube. Start assembly by sliding a rubber ring (serves as a seal) onto the roll tube. Insert the offset tab end of the black spring into the L spool so its tab extends through small hole.
Page 19
Apply Ratchet Decal Next to Installed Ratchet...
Page 24
NOTE: If installing the optional Command-5 or Command-10 Wireless Remotes, skip Step 11. Use instructions that come with the wireless kits. Then continue with Step 12. TIP: Dielectric silicone is provided for electric wire connections. Use as needed. Heavy Gauge WireFrom Tarp Motor To Solenoid Near Battery Rocker Switch And Mounting Bracket...
Page 26
FLAT WASHER #10 x 1” SELF DRILLING HEAD SCREW #14 x 1” Self Drilling Philips Head Screw...
Page 27
Grease Maintenance Tip: Periodically grease motor shaft ext. and motor shaft.
Page 29
STEP 13: MOTOR AND PIVOT ARMS A. MOUNTING LOWER PIVOT ARM At center of box on outside, locate pivot point of lower arm about 36” down from bottom of end cap. Drill a 3/8” hole through box well. From inside of box, insert bolt through hole and tighten with nut on outside. (See pivot bolt diagrams below for Standard Kit vs.
Page 33
Push Push NOTE: Electric tarp system is equipped with a modified reset circuit breaker. Holding switch until circuit breaker trips is too long. When this occurs, breaker will trip and reset if the breaker is overloaded by the motor. To reduce unnecessary strain on compo- nents, always release switch before breaker trips.
Page 34
Do not attempt to disassemble the motor or gearbox. Disassembly will void warranty. SAVE THIS MANUAL FOR FUTURE REFERENCE...
Page 35
(For Reference See Parts List Page 20) Front Spring (black) Coils Clockwise Rear Spring (red) Coils Counter-Clockwise...
Page 38
Quick Release Tarp Stop Assembly Quick Release Clevis Pins W/Bow Tie Pin Rear End Cap Assembly 3/8 x 1” Self Threading Screw/Bolt SRT-2 End Cap Decal 3” Aluminum Roll Tube 3/8 x 1” Self Threading Screw/Bolt PVC Plastic Spacer W/Bolt And Lock Nut...
Page 39
OPTIONAL ELECTRIC SRT-2® PARTS LIST DESCRIPTION Pivot Bolt 3/8 x 2-1/2” w/Std. Nut and Flat Washer Lock Nuts 3/8 Pivot Bolt Lower Pivot Arm Upper Pivot Arm/Motor Assembly Motor Shaft Extension Heavy Gauge Wire Cable Auto-Reset Circuit Breaker Eyelet Connector 1/2” (For Positive Post) Eyelet Connector 3/8”...
Page 40
SRT-2® TROUBLESHOOTING GUIDE Tube stop fasteners may be missing allowing tarp to “slip or walk. ” Recenter tarp between end caps. Replace tube stop fasteners.
Page 41
To order a replacement tarp find your tarps serial number where shown. Serial number is under the barcode on the decal at the rear of the stationary tube. -21-...
