INSTALLATION INSTRUCTIONS

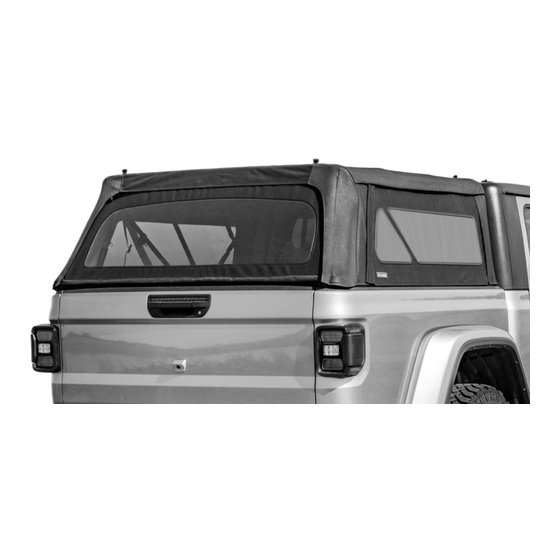

Thank you for purchasing OUTLANDER
Soft Truck Topper. This product was manufactured using superior quality materials and
TM
workmanship. With proper care, your soft truck topper will provide years of service and enjoyment.
NOTICE TO INSTALLER: Even if familiar with product, read instructions prior to installation as improvements may be made without notice.
Always handle components with care. If you have questions or problems, call customer service. When done, these instructions must be
given to the consumer.
NOTICE TO CONSUMER: Before using soft truck topper, read maintenance and safety sections. Save these instructions for future
reference.
FOR YOUR RECORDS
DATE PURCHASED:
WHERE PURCHASED:
LOT NUMBER:
Questions? (888) 858-3918
(Located on tag near driver's rear brace bracket)
agricover.com
Advertisement
Table of Contents
Related Manuals for AGRI-COVER Outlander
Summary of Contents for AGRI-COVER Outlander
- Page 1 INSTALLATION INSTRUCTIONS Thank you for purchasing OUTLANDER Soft Truck Topper. This product was manufactured using superior quality materials and workmanship. With proper care, your soft truck topper will provide years of service and enjoyment. NOTICE TO INSTALLER: Even if familiar with product, read instructions prior to installation as improvements may be made without notice.
-
Page 2: Assembling Frame
PREPARATION Unpack topper components and clean truck box. COMPONENTS TOOLS NEEDED • Clamps (quantity varies) • Ft-lbs Torque wrench with 9/16” socket • (2) Bow assemblies • 5 mm Allen wrench • Front bar • Protective eyewear • Rear bar •... -
Page 3: Installing Frame
2: ASSEMBLING FRAME (Continued) B. Remove bolt from end of front bow and secure onto front brace bracket of side rail with bolt and nut using 5 mm Allen wrench. IMPORTANT: Ensure nut does not slide out of bow. C. Repeat with front bow on opposite side. Driver side bow Bolt (front bow) D. - Page 4 3: INSTALLING FRAME (Continued) C. Install second clamp as close to tailgate as possible, turn bolt finger tight. D. If provided, install third clamp at midway point, turn bolt finger tight. IMPORTANT: Ensure all clamp teeth engage side rail grooves. Bolt Clamp NOTE: For vehicles with utility track, remove lower half of standard clamp...
- Page 5 4: INSTALLING SOFT TOP (Continued) D. Slide front bar onto channel of soft top front panel (attached to soft top), Channel Channel then position front panel between cab window and frame. NOTE: Ensure seal on front bar is facing down. Seal Seal Front bar...
- Page 6 5: INSTALLING SOFT TOP PANELS A. Slide rear bar onto rear panel channel. Rear bar NOTE: Ensure seal is facing away from panel window. Rear panel channel Front bar Rear bar B. Use zipper to attach rear panel, completely close top and sides. Secure zipper with hook and loop.
- Page 7 5: INSTALLING SOFT TOP PANELS (Continued) E. On one side of the frame use zipper to attach side panel (angled window toward the rear), completely close top and sides. Angled window at rear Side panel F. Secure bottom of side panel with plastic strip under channel in side rail. Secure topper corner at front and rear with plastic strip under channel in side rail corner.
- Page 8 OPENING TOPPER A. Open tailgate. Storage straps B. Unzip sides of rear panel. C. Disengage rear bar from side rails. D. Roll rear panel and secure with storage straps. CAUTION: Damage may occur to window when rolled up in cold temperatures.
- Page 9 OPENING TOPPER (Continued) N. Fold topper forward. O. Secure topper sides and top with storage straps. Storage straps Bow assembly CLOSING TOPPER A. Disengage storage straps from sides and top. B. Unfold topper. Unfold topper C. Loosen wing nut on rear brace bracket. Remove rear support brace from storage strap and secure under wing nut.
-
Page 10: Troubleshooting
CLOSING TOPPER (Continued) D. Secure plastic strip under corner of side rail. Side rail corner Plastic strip E. Repeat Steps C-D on opposite side. F. To install side and rear panels, refer to installing topper panels section of instructions. TROUBLESHOOTING PROBLEM SOLUTION Topper too tight... -
Page 11: Inspection And Maintenance
TIPS FOR A LONGER LASTING TOPPER • Keep topper closed when not in use. • Keep the topper tight. • Ensure topper is properly sealed. • Close topper while traveling and before entering automatic drive-through car washes. • Avoid storing topper in its open position for long periods of time. •... -
Page 12: Manufacturer's Limited Warranty
Goods to be returned must have a pre-authorized RA # (Return Authorization Number) - obtained by calling the number above. Mark the number on the package and ship it freight prepaid to address below. Agri-Cover, Inc. will pay freight to return goods to sender.
