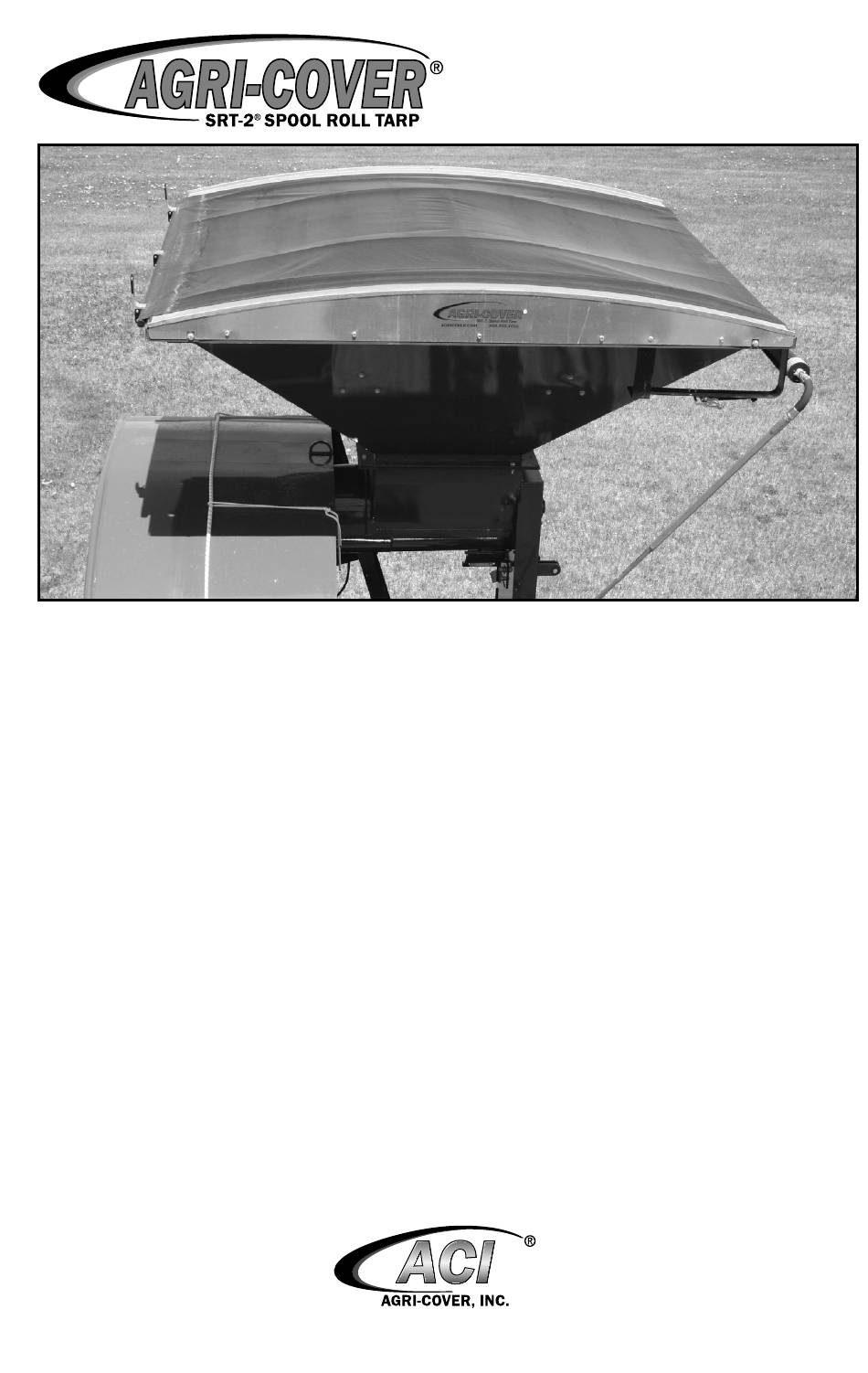

SPECIAL INSTRUCTIONS
FOR GRAIN BAG LOADER
Special instructions for cable ratchet holder bracket, end cap, bows, extensions and
handle holder.
NOTICE TO INSTALLER: Even if familiar with product, read special instructions prior to
installation as improvements may be made without notice. Always handle components with
care. When done, these special instructions must be given to the consumer.
This tarp requires a REVERSE ROLL installation. Use SRT-2
Owner's Manual for
®
reverse roll and all remaining installation procedures.
NOTICE TO CONSUMER: Before using this product, read instructions. Save these special
instructions for future reference.
Actual parts may vary from those shown in this booklet.
Questions? 800-233-4655
agricover.com
Advertisement
Related Manuals for AGRI-COVER SRT-2
Summary of Contents for AGRI-COVER SRT-2
- Page 1 NOTICE TO INSTALLER: Even if familiar with product, read special instructions prior to installation as improvements may be made without notice. Always handle components with care. When done, these special instructions must be given to the consumer. This tarp requires a REVERSE ROLL installation. Use SRT-2 Owner’s Manual for ®...
- Page 2 PREPARATION TOOLS NEEDED 5/16”, and 9/16” bits • (1) Drill with 3/8”, • 1) 1-1/2” hole saw (Front access platform kits) • (1) Protective eyewear • (1) Metal cutting tool • (1) Tape measure or ruler • (1) Metal grinding tool 1.
- Page 3 1. INSTALLING BRACKET FOR RATCHET MOUNT (Continued) NOTE: Illustrations below depict view of left front corner. Special bracket Mark one hole location for side of bracket Mark two hole locations for base of bracket...
- Page 4 2: INSTALLING SPECIAL BOW & EXTENSION A. Mount bow pocket inside slanted wall flush with top of box. Use 3/8” x 1” self threading bolts. Repeat on opposite side of box. B. Insert bow extension into pocket and bend extension down as needed. Repeat procedure for bow.
- Page 5 3: INSTALLING HANDLE HOLDER NOTE: For front access platform kits go to Step 3A. These kits WILL NOT come with a mounting bracket, a special handle holder bracket or a swivel handle holder. Grain bag loader with front access platform NOTE: For side access platform/no access platform kits go to Step 3B.
- Page 6 3A. INSTALLING HANDLE HOLDER ON FRONT ACCESS PLATFORM A. Drill 1-1/2” hole 7-3/8” from side edge and 1-1/4” up from bottom of platform (all measurements to center of hole). This 1-1/2” hole is used to hold the handle when not in use.
- Page 7 3B. INSTALLING HANDLE HOLDER WITH SIDE ACCESS PLATFORM/NO ACCESS PLATFORM A. Attach mounting bracket to machine by aligning holes and bolting with two 3/8” x 1-1/2” carriage bolts, flat washers, lock washers and fasten with nuts. NOTE: If mounting bracket is already installed on machine skip to next step. Area of installation Mounting bracket Carriage bolts...
- Page 8 Turn nut onto bolt and leave it just loose enough to allow holder to swivel when mounting handle. 3/8” x 1” bolt with threadlocker Swivel handle holder Flat washer © 2018 AGRI-COVER, INC. ALL RIGHTS RESERVED. 012618 60819_I Product subject to change without notice. Patents: agricover.com/patents.
