Renesas SLG46120V Quick Start Manual

SLG46120V GreenPAK DIP Adapter
Quick Start Guide

1. Description

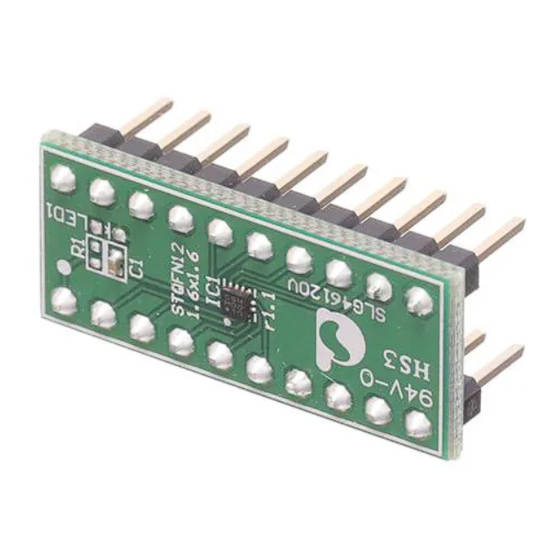

The GreenPAK DIP Adapter is a small PCB that lets you adapt
STQFN packages into a DIP footprint. This board can speed
up your design prototyping and testing. This small board
0.45x1.05 inch uses 20 pins DIP footprint with 0.3 inch width.
You can also use this adapter for prototyping by making
STQFN package compatible with solder free breadboards.

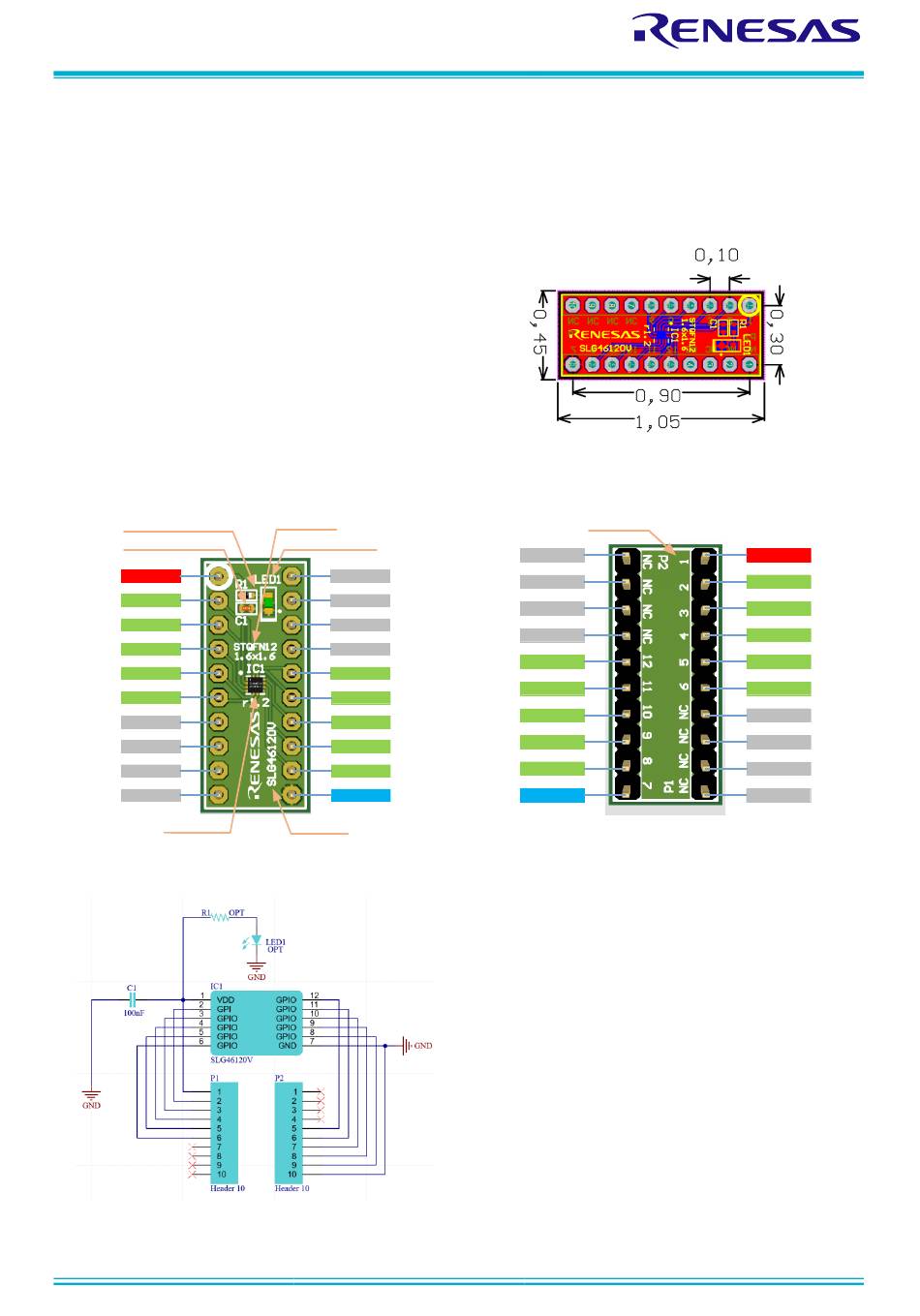

3. Top View

LED current limit resistor (optional)
VDD Chip decoupling capacitor
Pins
PIN1 (VDD)
PIN2 (GPI)
PIN3 (GPIO)
PIN4 (GPIO)
PIN5 (GPIO)
PIN6 (GPIO)
Not connected
Not connected
Not connected
Not connected
GreenPAK chip

5. Board Schematic

Chip package type
VDD LED indicator (optional)
Pins
Not connected
Not connected
Not connected
Not connected
PIN12 (GPIO)
PIN11 (GPIO)
PIN10 (GPIO)
PIN9 (GPIO)
PIN8 (GPIO)
PIN7 (GND)
Chip part number
Revision 1.1
1 of 1

2. Features

•
Low cost
•
Simplifies prototyping of SMT IC's
•
Optional V LED indicator
DD
•
Decoupling capacitor included
Note 1 All sizes in inches.

4. Bottom View

Chip pin number
Pins
Not connected
Not connected
Not connected
Not connected
PIN12 (GPIO)
PIN11 (GPIO)
PIN10 (GPIO)
PIN9 (GPIO)
PIN8 (GPIO)
PIN7 (GND)
Pins
PIN1 (VDD)
PIN2 (GPI)
PIN3 (GPIO)
PIN4 (GPIO)
PIN5 (GPIO)
PIN6 (GPIO)
Not connected
Not connected
Not connected
Not connected
17-Mar-2022
© 2022 Renesas Electronics Corporation
