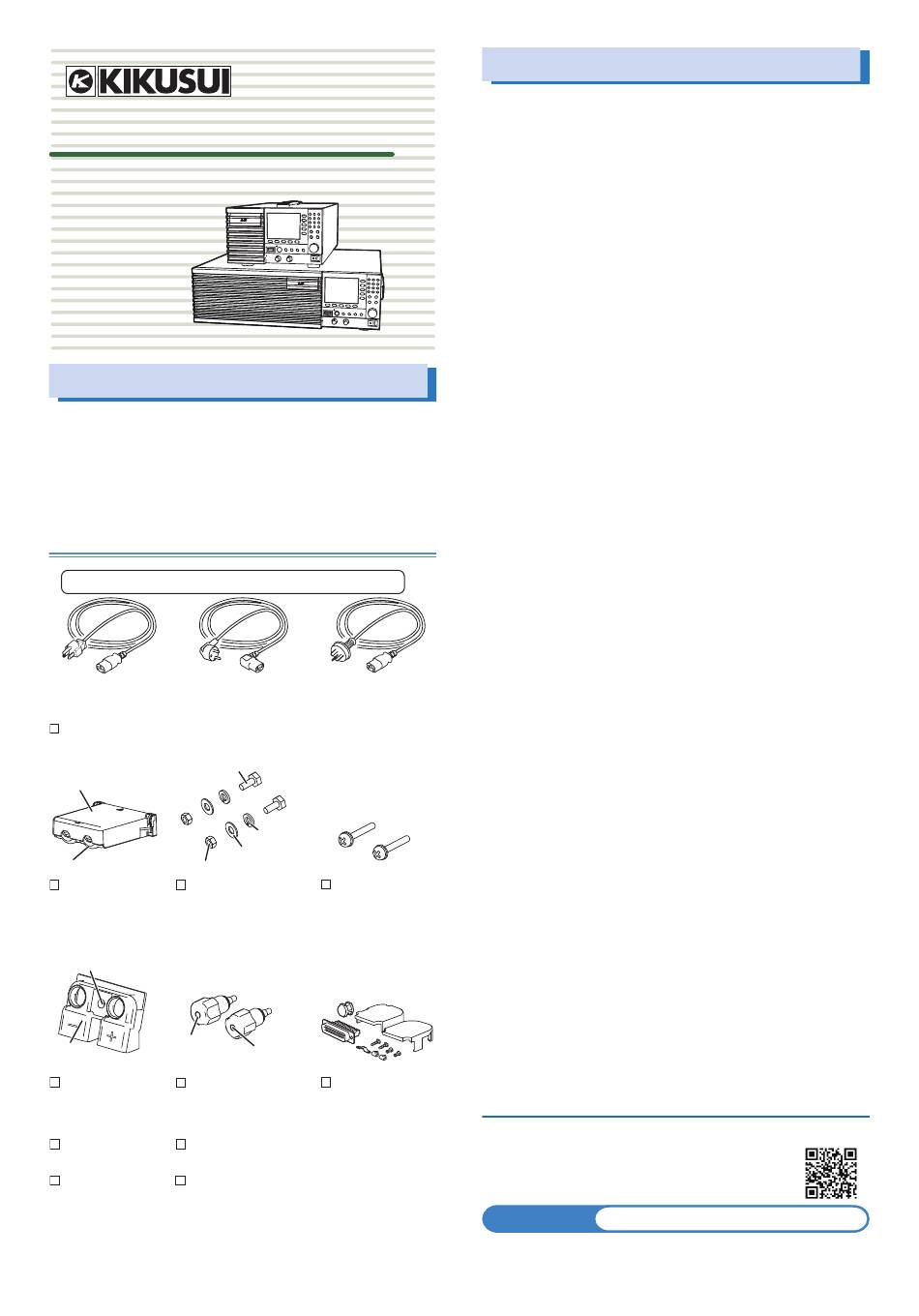

Setup Guide

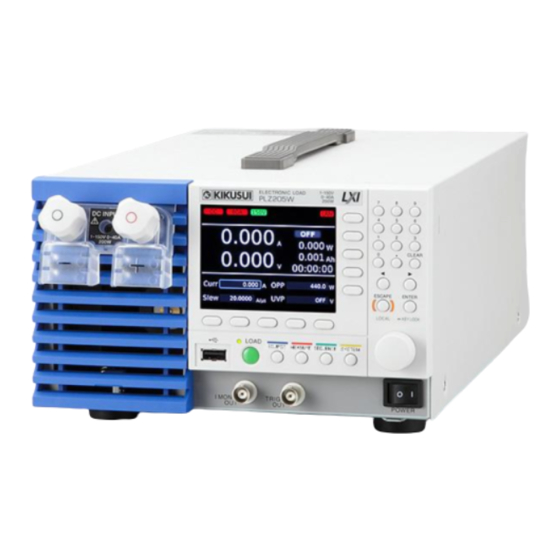

ELECTRONIC LOAD PLZ-5W Series
PLZ205W
PLZ405W
PLZ1205W

Checking the Package Contents

Check that all accessories are included and that the unit and
accessories have not been damaged during transportation.
If any of the unit and accessories are damaged or missing,
contact your Kikusui agent or distributor. We recommend that
you keep all packing materials, in case the product needs to be
transported at a later date.
Accessories
The attached power cord varies depending on the shipment destination.
or
Plug: NEMA5-15
Plug: CEE7/7
Rating: 125 Vac/10 A
Rating: 250 Vac/10 A
[85-AA-0004]
[85-AA-0005]
Power cord (1 pc., length: 2.5 m)
[M1-100-119]
Top [Q1-500-156]
Bottom [Q1-500-157]
[M4-100-008]
Rear-panel load
Load input terminal
input terminal
screw set (2 sets)
cover (1 pc.)
Screw [M8-600-021]
− (black)
Cover
[N8-000-002]
[Q1-500-161]
Front-panel load
Front-panel load
input terminal
input knob set (1 set)
cover ( 1 pc.)
CD-ROM (1 disk)
Safety Information (1 pc.)
Setup Guide
Quick Reference
(This manual, 1 pc.)
(Japanese 1 sheet,
English 1 sheet)
PLZ-5W
PART NO. Z1-006-270, IB027762
Mar. 2016
or
Plug: GB1002
Rating: 250 Vac/10 A
[85-10-0790]
[M5-101-008]
[M5-100-008]
Screws for the
load input
terminal cover
(2 pcs.)
[M3-112-018]
+ (red)
[N8-000-003]
External control
connector kit (1 set)
[83-20-0190]
Features
In addition to basic constant current, constant resistance, con-
stant voltage, and constant power modes, the PLZ-5W Series
offers a variety of other features. The PLZ-5W series also pro-
vides better performance than previous models.
• High-speed response
The rise time has been improved from 10 µs to 5 µs.
• Expanded voltage range
The minimum operating voltage has been improved from
1.5 V to 1.0 V, offering support of low voltage input.
• Arbitrary I-V characteristics mode
Arbitrary I-V characteristics mode that allows current to be set
arbitrarily in relation to voltage input. This mode can be used
for simulation of LED loads and the like.
• Color liquid crystal display (LCD)
Allows easy-to-see display in color. The voltage value, current
value, power value, current capacity value (Ah), and power
capacity value (Wh) at the load input terminal are indicated
on the display.
• Increased power capacity and current capacity
Power capacity and current capacity 1.2 times those of
previous models have been realized while keeping the size
unchanged.
• Larger capacity achievable
Larger capacity can be achieved by connecting optional
boosters (PLZ2405WB) to the PLZ1205W. Up to four booster
units can be operated in parallel using a PLZ1205W unit as
the master unit (up to 10.8 kW, 2  1 60 A).
• Support of synchronized operation
Load On/off control and the execution of sequences can be
synchronized for multiple PLZ-5W units.
• RS232C, USB, and LAN communication functions provided
as standard
These functions allow easy incorporation into various types of
inspection systems.
• GPIB function available as option*
Using the optional GPIB converter (p.126), the GPIB function
can be used via the RS232C or USB interface.
* Limitation apply to some of the functions.
KIKUSUI ELECTRONICS CORP.
1-1-3, Higashiyamata, Tsuzuki-ku, Yokohama,
224-0023, Japan
TEL: +81-45-593-0200 Fax: +81-45-593-7571
http://www.kikusui.co.jp/en
Website
The newest version of the operation manual can be downloaded
from Download service of Kikusui website.
1
